Subsea Quick Couplings

Walther subsea control system underwater couplings are designed and manufactured to meet the rigorous demands of the offshore industry, supplying both mono and multi coupling systems for platform and underwater use. For underwater operation, Walther subsea coupling designs have been modified for easier diver handling. ROV operated couplings have been also been developed for shallow and deep water environments. Walther quick connect coupling systems ensure fast, safe connection and separation of control system lines on topside and subsea structures.

subsea-control-system underwater-couplings

Design features:

  • Clean-break during connection and separation
  • Nominal bore sizes ranging from 2mm - 200mm
  • Low pressure models up to 580psi
  • High pressure models up to 15,000psi
  • Robust materials including stainless steel, Monel, Super Duplex, Hastelloy,
  • Highly reliable seal configurations using NBR, HNBR, FPM, FFKM, PEEK and metal
  • Cam action or pull-in action locking design features on multicoupling systems
  • A range of special features including non-interchangeability and pressured line connectability

Walther subsea control system couplings are distinguishable by the "coupling actuator" to include: stab plate, cartridge, and ROV multi and couplings. Coupling specifics can be found by following the links.

Stab Plate
SeriesEnd fitting range Working pressure psi CvFeaturesClick on picture to enlarge
MD varies -- -- General purpose Medium Pressure couplings. Also available for plate mounting & sub-sea use. na

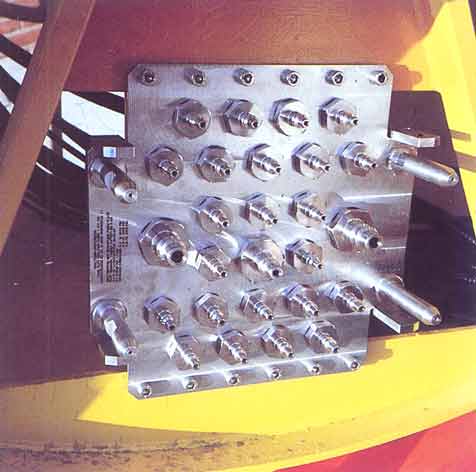

HP varies -- -- General purpose High Pressure couplings. Also for plate mounting, esp. for subsea use. Very robust, esp. with RV option. subsea stab plate
OE varies -- -- -- na
OM varies 7,500-10,000 -- Available in 6mm, 10mm, 16mm na
64 varies 12,500 -- Available in two versions. --
Cartridge
SeriesEnd fitting range Working pressure psi CvFeaturesClick on picture to enlarge
84 1-1/4" & 1-1/2" 12,500 0.65 Cartridge mount, metal primary, elastomeric secondary seals. Primarily for subsea trees. subsea couplings Details
Diver Couplings
SeriesEnd fitting range Working pressure psi CvFeaturesClick on picture to enlarge

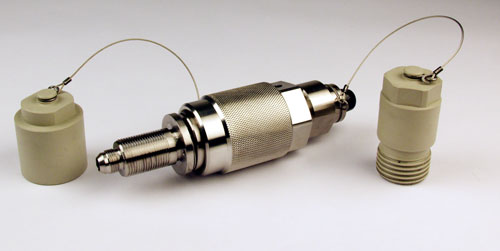

SH 3/8" - 3/4" 7,500 to 10,000 1.2 High pressure, screw-together with some versions using a metal primary seal. A "coding" system prevents accidental media line misconnections. subsea system couplings Details
ROV: multi couplings
SeriesEnd fitting range Working pressure psi CvFeaturesClick on picture to enlarge


ROV: mono couplings
SeriesEnd fitting range Working pressure psi CvFeaturesClick on picture to enlarge

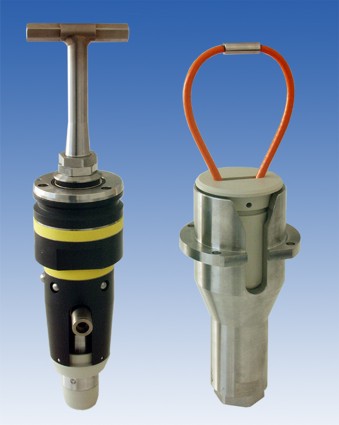

87       Simple ROV operation,  underwater couplings

Offshore Coupling Options

Contact one of our sales representatives today
to inquire about a quote from Maxbar - Walther Precision USA
or call us today at (832) 327-0534
