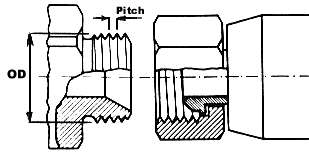

DIN 7631 End Fitting

Nominal Size	Walther Code	Thread OD (mm)	Pitch (mm)	Bore ID (mm)
M14 x 1.5	D0614	14	1.5	6
M16 x 1.5	D0816	16	1.5	8
M18 x 1.5	D1018	18	1.5	10
M22 x 1.5	D1222	22	1.5	12
M26 x 1.5	D1526	26	1.5	15
M30 x 1.5	D1930	30	1.5	19
M45 x 1.5	D3245	45	1.5	32
M65 x 2	D4965	65	2	49

Walther code is D, followed by the fitting bore diameter in mm, followed by the thread OD.
