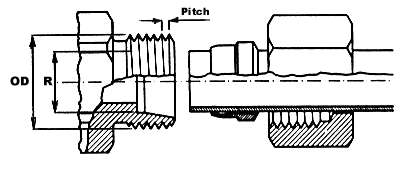

Ermeto (EO) Fittings, DIN2353 End Fitting

Need A Quote?

Nominal Size Walther Code Thread OD (mm) Pitch (mm) Counterbore ID(mm)
L6 L0612 12 1.5 6
L8 L0814 14 1.5 8
L10 L1016 16 1.5 10
L12 L1218 18 1.5 12
L15 L1522 22 1.5 15
L18 L1826 26 1.5 18
L22 L2230 30 2 22
L42 L4252 52 2 42
S8 S0816 16 1.5 8
S10 S1018 18 1.5 10
S20 S1220 20 1.5 12
S24 S1624 24 1.5 16
S20 S2030 30 2 20
S25 S2536 36 2 25
S30 S3042 42 2 30
S38 S3852 52 2 38

Walther code is 'L' for "Light" Series, or 'S' for "Heavy" Series, followed by the tube OD to two digits, then the thread OD to two digits.
