SAE J1926 Fitting Dimensions

Home » End Fittings Reference » SAE End Fitting Dimensions - SAE J1926 Fittings
Need A Quote?

sae-end-fitting-dimensions

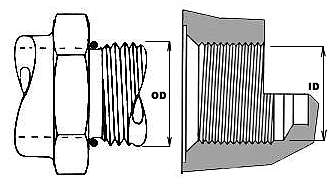

Nominal Size -No. Walther Code Thread Size (inch) Pitch (threads per inch)
Male Female OD ID
1/8" -2 SA008 SA508 5/16 0.267 24
3/16" -3 SA010 SA510 3/8 0.323 24
1/4" -4 SA011 SA511 7/16 0.383 20
5/16" -5 SA013 SA513 1/2 0.446 20
3/8" -6 SA014 SA514 9/16 0.502 18
1/2" -8 SA019 SA519 3/4 0.682 16
5/8" -10 SA022 SA522 7/8 0.798 14
3/4" -12 SA027 SA527 1-1/16 0.960 12
1" -16 SA033 SA533 1-5/16 1.210 12
1-1/4" -20 SA041 SA541 1-5/8 1.523 12
1-1/2" -24 SA048 SA548 1-7/8 1.773 12
2' -32 SA064 SA564 2-1/2 2.398 12

Threads are UN, Class 2.

Walther code is SA, followed by 0 for male, 5 for female, followed by the thread OD in mm.
