Walther Coupling Model HP-006
Need A Quote?Coupling Information

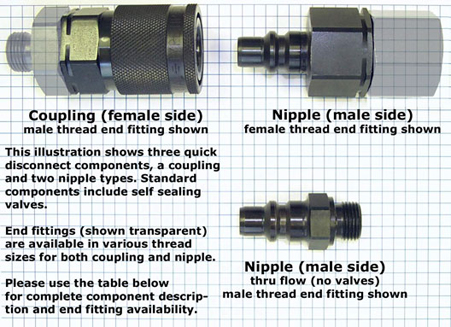

There are three basic types of HP-006 coupling. Part numbers for each are listed below.
| Valve arrangement | The Coupling (Female side) | The Nipple (Male side) |
|---|---|---|
| Standard (with valves) | HP-006-0-... | HP-006-2-... |
| No valves (thru type) | Use HP-006-0-... with -OV option | HP-006-1-... |
End Fittings
(Refer to Part Number System)| BSPP (British Standard Pipe, Parallel) with shoulder | |||
|---|---|---|---|
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |
| BSPP(M) 3/8" | HP-006-0-WB017-.. | HP-006-2-WB017-.. | HP-006-1-WB017-.. |
| BSPP (British Standard Pipe, Parallel) | |||
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |
| BSPP(F) 3/8" | HP-006-0-WR517-.. | HP-006-2-WR517-.. | -- |
| NPT (National Pipe, Tapered) | |||
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |
| NPT(M) 3/8" | HP-006-0-NP017-.. | HP-006-2-NP017-.. | HP-006-1-NP017-.. |
| NPT(F) 3/8" | HP-006-0-NP517-.. | HP-006-2-NP517-.. | -- |
| BSPP(M) with 60° Female cone (usually to fit hose ends with BSP swivel nuts) | |||
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |
| BSPP(M) 3/8"w/60° F cone | HP-006-0-VR017-.. | HP-006-2-VR017-.. | -- |
| DIN 7631, M14 x 1.5mm with 60° Female cone (usually to fit hoses with metric swivel nuts) | |||
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |

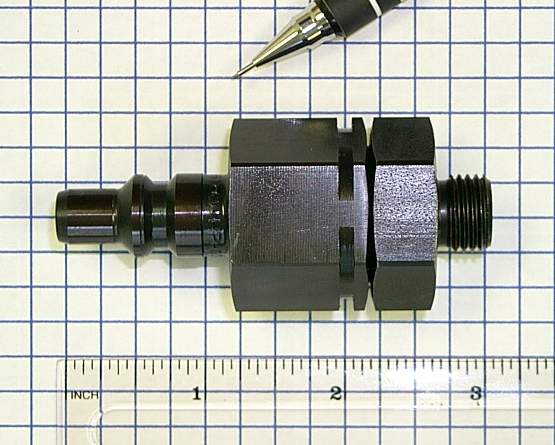

| M14 x 1.5 | HP-006-0-D0614-.. | HP-006-2-D0614-.. | -- |
| M16 x 1.5 | HP-006-0-D0816-.. | HP-006-2-D0816-.. | -- |
| EO (Ermeto) to fit tube & ferrule | |||
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |
| M16 x 1.5 8mm tube OD (Heavy) | HP-006-0-S0816-.. | HP-006-2-S0816-.. | -- |
| M18 x 1.5 10mm OD tube (Heavy) | HP-006-0-S1018-.. | HP-006-2-S1018-.. | -- |
| M20 x 1.5 12mm OD tube (Heavy) | HP-006-0-S1220-.. | HP-006-2-S1220-.. | -- |
Dust Caps & Dust Plugs - Part numbers for Series HP-006
| Material | Plugs for Couplings (Female side) | Caps for Adapters (Male side) |
|---|---|---|
| Non-pressure retaining1 | HP-006-6-73-KU | HP-006-5-73-KU |
| Pressure retaining2 | HP-006-6-12 | HP-006-5-12-1 (Nitrile)HP-006-5-12-2 (Viton)HP-006-5-12-4 (EPDM) |
* Plugs and caps are available for both self-sealing & thru-type couplings and adapters.1. Soft PVC (black)2. Oil burnished steel, nickel-plated steel chain and retaining rings
Flow Capacity
3/8" BSPP(M), Self-sealing Coupling
Partial Part Number: HP-006-0-WB017-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-0-WB017-12-1 | HP-006-0-WB017-12-2 | HP-006-0-WB017-12-4 | -- |
| Steel, 316 stainless | HP-006-0-WB017-01-1 | HP-006-0-WB017-01-2 | HP-006-0-WB017-01-4 | -- |
| Steel, electroless nickel pl. | HP-006-0-WB017-13-1 | HP-006-0-WB017-13-2 | HP-006-0-WB017-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
3/8" BSPP(M), Self-sealing Nipple
Partial Part Number: HP-006-2-WB017-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-2-WB017-12-1 | HP-006-2-WB017-12-2 | HP-006-2-WB017-12-4 |  |
| Steel, 316 stainless | HP-006-2-WB017-01-1 | HP-006-2-WB017-01-2 | HP-006-2-WB017-01-4 | -- |
| Steel, stainless, hardened | HP-006-2-WB017-W1-1 | HP-006-2-WB017-W1-2 | HP-006-2-WB017-W1-4 | -- |
| Steel, electroless nickel pl. | HP-006-2-WB017-13-1 | HP-006-2-WB017-13-2 | HP-006-2-WB017-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
3/8" BSPP(M), Thru type Nipple
Partial Part Number: HP-006-1-WB017-..
Find complete part numbers below:
| Material | Part Number | Click to Enlarge | ||
|---|---|---|---|---|
| Steel, hardened, oil burnished | HP-006-1-WB017-12 | -- | ||
| Steel, 316 stainless | HP-006-1-WB017-01 |  |
||
| Steel, stainless, hardened | HP-006-2-WB017-W1 | -- | ||
| Steel, electroless nickel pl. | HP-006-1-WB017-13 | -- | ||
| Standard materials in bold. Other materials & seals available. | ||||
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
3/8" BSPP(F), Self-sealing Coupling
Partial Part Number: HP-006-0-WR517-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-0-WR517-12-1 | HP-006-0-WR517-12-2 | HP-006-0-WR517-12-4 | -- |
| Steel, 316 stainless | HP-006-0-WR517-01-1 | HP-006-0-WR517-01-2 | HP-006-0-WR517-01-4 | -- |
| Steel, electroless nickel pl. | HP-006-0-WR517-13-1 | HP-006-0-WR517-13-2 | HP-006-0-WR517-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
3/8" BSPP(F), Self-sealing Nipple
Partial Part Number: HP-006-2-WR517-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-2-WR517-12-1 | HP-006-2-WR517-12-2 | HP-006-2-WR517-12-4 |  |
| Steel, 316 stainless | HP-006-2-WR517-01-1 | HP-006-2-WR517-01-2 | HP-006-2-WR517-01-4 | -- |
| Steel, stainless, hardened | HP-006-2-WR517-W1-1 | HP-006-2-WR517-W1-2 | HP-006-2-WR517-W1-4 | -- |
| Steel, electroless nickel pl. | HP-006-2-WR517-13-1 | HP-006-2-WR517-13-2 | HP-006-2-WR517-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
3/8" NPT(M), Self-sealing Coupling
Partial Part Number: HP-006-0-NP017-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-0-NP017-12-1 | HP-006-0-NP017-12-2 | HP-006-0-NP017-12-4 | -- |
| Steel, 316 stainless | HP-006-0-NP017-01-1 | HP-006-0-NP017-01-2 | HP-006-0-NP017-01-4 | -- |
| Steel, electroless nickel pl. | HP-006-0-NP017-13-1 | HP-006-0-NP017-13-2 | HP-006-0-NP017-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.

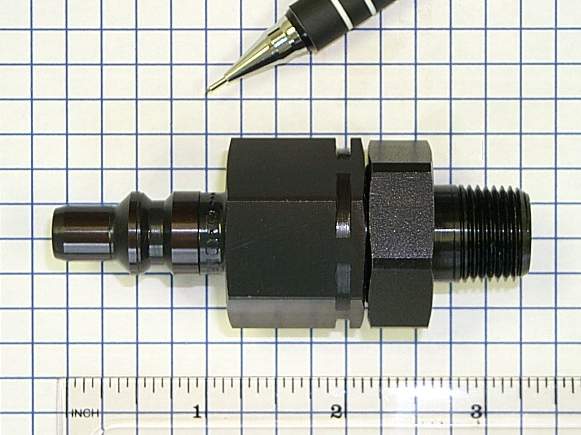

3/8" NPT(M), Self-sealing Nipple
Partial Part Number: HP-006-2-NP017-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-2-NP017-12-1 | HP-006-2-NP017-12-2 | HP-006-2-NP017-12-4 |  |
| Steel, 316 stainless | HP-006-2-NP017-01-1 | HP-006-2-NP017-01-2 | HP-006-2-NP017-01-4 | -- |
| Steel, stainless, hardened | HP-006-2-NP017-W1-1 | HP-006-2-NP017-W1-2 | HP-006-2-NP017-W1-4 | -- |
| Steel, electroless nickel pl. | HP-006-2-NP017-13-1 | HP-006-2-NP017-13-2 | HP-006-2-NP017-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
3/8" NPT(M), Thru type Nipple
Partial Part Number: HP-006-1-NP017-..
Find complete part numbers below:
| Material | Part Number | Click to Enlarge | ||
|---|---|---|---|---|
| Steel, hardened, oil burnished | HP-006-1-NP017-12 | -- | ||
| Steel, 316 stainless | HP-006-1-NP017-01 | -- | ||
| Steel, stainless, hardened | HP-006-2-WB017-W1 | -- | ||
| Steel, electroless nickel pl. | HP-006-1-NP017-13 | -- | ||
| Standard materials in bold. Other materials & seals available. | ||||
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
3/8" NPT(F), Self-sealing Coupling
Partial Part Number: HP-006-0-NP517-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-0-NP517-12-1 | HP-006-0-NP517-12-2 | HP-006-0-NP517-12-4 | -- |
| Steel, 316 stainless | HP-006-0-NP517-01-1 | HP-006-0-NP517-01-2 | HP-006-0-NP517-01-4 | -- |
| Steel, electroless nickel pl. | HP-006-0-NP517-13-1 | HP-006-0-NP517-13-2 | HP-006-0-NP517-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.

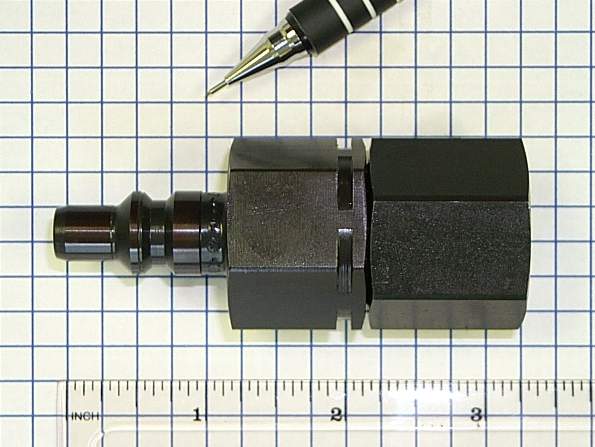

3/8" NPT(F), Self-sealing Nipple
Partial Part Number: HP-006-2-NP517-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-2-NP517-12-1 | HP-006-2-NP517-12-2 | HP-006-2-NP517-12-4 |  |
| Steel, 316 stainless | HP-006-2-NP517-01-1 | HP-006-2-NP517-01-2 | HP-006-2-NP517-01-4 | -- |
| Steel, stainless, hardened | HP-006-2-NP517-W1-1 | HP-006-2-NP517-W1-2 | HP-006-2-NP517-W1-4 | -- |
| Steel, electroless nickel pl. | HP-006-2-NP517-13-1 | HP-006-2-NP517-13-2 | HP-006-2-NP517-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.

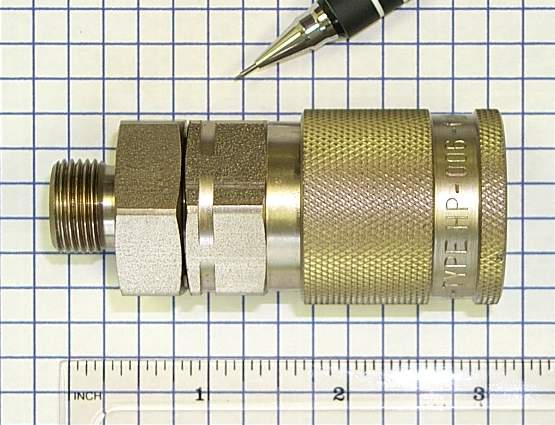

3/8" BSPP(M) w/60° F cone, Self-sealing Coupling
Partial Part Number: HP-006-0-VR017-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-0-VR017-12-1 | HP-006-0-VR017-12-2 | HP-006-0-VR017-12-4 | -- |
| Steel, 316 stainless | HP-006-0-VR017-01-1 | HP-006-0-VR017-01-2 | HP-006-0-VR017-01-4 | -- |
| Steel, electroless nickel pl. | HP-006-0-VR017-13-1 | HP-006-0-VR017-13-2 | HP-006-0-VR017-13-4 |  |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.

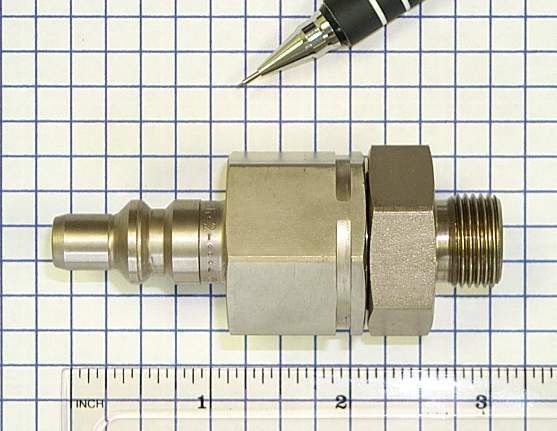

3/8" BSPP(M) w/60° F cone, Self-sealing Nipple
Partial Part Number: HP-006-2-VR017-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-2-VR017-12-1 | HP-006-2-VR017-12-2 | HP-006-2-VR017-12-4 |  |
| Steel, 316 stainless | HP-006-2-VR017-01-1 | HP-006-2-VR017-01-2 | HP-006-2-VR017-01-4 | -- |
| Steel, stainless, hardened | HP-006-2-VR017-W1-1 | HP-006-2-VR017-W1-2 | HP-006-2-VR017-W1-4 | -- |
| Steel, electroless nickel pl. | HP-006-2-VR017-13-1 | HP-006-2-VR017-13-2 | HP-006-2-VR017-13-4 |  |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M14 x 1.5 w/60° F cone, Self-sealing Coupling
Partial Part Number: HP-006-0-D0614-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-0-D0614-12-1 | HP-006-0-D0614-12-2 | HP-006-0-D0614-12-4 | -- |
| Steel, 316 stainless | HP-006-0-D0614-01-1 | HP-006-0-D0614-01-2 | HP-006-0-D0614-01-4 | -- |
| Steel, electroless nickel pl. | HP-006-0-D0614-13-1 | HP-006-0-D0614-13-2 | HP-006-0-D0614-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M14 x 1.5 w/60° F cone, Self-sealing Nipple
Partial Part Number: HP-006-2-D0614-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-2-D0614-12-1 | HP-006-2-D0614-12-2 | HP-006-2-D0614-12-4 |  |
| Steel, 316 stainless | HP-006-2-D0614-01-1 | HP-006-2-D0614-01-2 | HP-006-2-D0614-01-4 | -- |
| Steel, stainless, hardened | HP-006-2-D0614-W1-1 | HP-006-2-D0614-W1-2 | HP-006-2-D0614-W1-4 | -- |
| Steel, electroless nickel pl. | HP-006-2-D0614-13-1 | HP-006-2-D0614-13-2 | HP-006-2-D0614-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M16 x 1.5 w/60° F cone, Self-sealing Coupling
Partial Part Number: HP-006-0-D0816-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-0-D0816-12-1 | HP-006-0-D0816-12-2 | HP-006-0-D0816-12-4 | -- |
| Steel, 316 stainless | HP-006-0-D0816-01-1 | HP-006-0-D0816-01-2 | HP-006-0-D0816-01-4 | -- |
| Steel, electroless nickel pl. | HP-006-0-D0816-13-1 | HP-006-0-D0816-13-2 | HP-006-0-D0816-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M16 x 1.5w/60° F cone, Self-sealing Nipple
Partial Part Number: HP-006-2-D0816-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-2-D0816-12-1 | HP-006-2-D0816-12-2 | HP-006-2-D0816-12-4 | -- |
| Steel, 316 stainless | HP-006-2-D0816-01-1 | HP-006-2-D0816-01-2 | HP-006-2-D0816-01-4 | -- |
| Steel, stainless, hardened | HP-006-2-D0816-W1-1 | HP-006-2-D0816-W1-2 | HP-006-2-D0816-W1-4 | -- |
| Steel, electroless nickel pl. | HP-006-2-D0816-13-1 | HP-006-2-D0816-13-2 | HP-006-2-D0816-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M16 x 1.5 8mm tube OD (Heavy), Self-sealing Coupling
Partial Part Number: HP-006-0-S0816-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-0-S0816-12-1 | HP-006-0-S0816-12-2 | HP-006-0-S0816-12-4 | -- |
| Steel, 316 stainless | HP-006-0-S0816-01-1 | HP-006-0-S0816-01-2 | HP-006-0-S0816-01-4 | -- |
| Steel, electroless nickel pl. | HP-006-0-S0816-13-1 | HP-006-0-S0816-13-2 | HP-006-0-S0816-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M16 x 1.5 8mm tube OD (Heavy), Self-sealing Nipple
Partial Part Number: HP-006-2-S0816-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-2-S0816-12-1 | HP-006-2-S0816-12-2 | HP-006-2-S0816-12-4 |  |
| Steel, 316 stainless | HP-006-2-S0816-01-1 | HP-006-2-S0816-01-2 | HP-006-2-S0816-01-4 | -- |
| Steel, stainless, hardened | HP-006-2-S0816-W1-1 | HP-006-2-S0816-W1-2 | HP-006-2-S0816-W1-4 | -- |
| Steel, electroless nickel pl. | HP-006-2-S0816-13-1 | HP-006-2-S0816-13-2 | HP-006-2-S0816-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M18 x 1.5 10mm tube OD (Heavy), Self-sealing Coupling
Partial Part Number: HP-006-0-S1018-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-0-S1018-12-1 | HP-006-0-S1018-12-2 | HP-006-0-S1018-12-4 | -- |
| Steel, 316 stainless | HP-006-0-S1018-01-1 | HP-006-0-S1018-01-2 | HP-006-0-S1018-01-4 | -- |
| Steel, electroless nickel pl. | HP-006-0-S1018-13-1 | HP-006-0-S1018-13-2 | HP-006-0-S1018-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M18 x 1.5 10mm tube OD (Heavy), Self-sealing Nipple
Partial Part Number: HP-006-2-S1018-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-2-S1018-12-1 | HP-006-2-S1018-12-2 | HP-006-2-S1018-12-4 | -- |
| Steel, 316 stainless | HP-006-2-S1018-01-1 | HP-006-2-S1018-01-2 | HP-006-2-S1018-01-4 | -- |
| Steel, stainless, hardened | HP-006-2-S1018-W1-1 | HP-006-2-S1018-W1-2 | HP-006-2-S1018-W1-4 | -- |
| Steel, electroless nickel pl. | HP-006-2-S1018-13-1 | HP-006-2-S1018-13-2 | HP-006-2-S1018-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M20 x 1.5 12mm tube OD (Heavy), Self-sealing Coupling
Partial Part Number: HP-006-0-S1220-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-0-S1220-12-1 | HP-006-0-S1220-12-2 | HP-006-0-S1220-12-4 | -- |
| Steel, 316 stainless | HP-006-0-S1220-01-1 | HP-006-0-S1220-01-2 | HP-006-0-S1220-01-4 | -- |
| Steel, electroless nickel pl. | HP-006-0-S1220-13-1 | HP-006-0-S1220-13-2 | HP-006-0-S1220-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M20 x 1.5 12mm tube OD (Heavy), Self-sealing Nipple
Partial Part Number: HP-006-2-S1220-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-006-2-S1220-12-1 | HP-006-2-S1220-12-2 | HP-006-2-S1220-12-4 |  |
| Steel, 316 stainless | HP-006-2-S1220-01-1 | HP-006-2-S1220-01-2 | HP-006-2-S1220-01-4 | -- |
| Steel, stainless, hardened | HP-006-2-S1220-W1-1 | HP-006-2-S1220-W1-2 | HP-006-2-S1220-W1-4 | -- |
| Steel, electroless nickel pl. | HP-006-2-S1220-13-1 | HP-006-2-S1220-13-2 | HP-006-2-S1220-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
Contact one of our sales representatives today
to inquire about a quote from Maxbar | Walther Precision USA
or call us today at (832) 327-0534
Maxbar, Inc.
Products & Services
