Walther Coupling Model HP-010
Need A Quote?Coupling Information

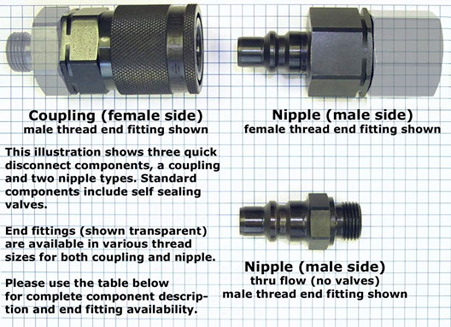

There are three basic types of HP-010 coupling. Part numbers for each are listed below.
| Valve arrangement | The Coupling (Female side) | The Nipple (Male side) |
|---|---|---|
| Standard (with valves) | HP-010-0-... | HP-010-2-... |
| No valves (NP526) | Use HP-010-0-... with -OV option | HP-010-1-... |
End Fittings
(Refer to Part Number System)| BSPP (British Standard Pipe, Parallel) with shoulder | |||
|---|---|---|---|
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |
| BSPP(M) 1/2" | HP-010-0-WB021-.. | HP-010-2-WB021-.. | HP-010-1-WB021-.. |
| BSPP (British Standard Pipe, Parallel) | |||
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |
| BSPP(F) 1/2" | HP-010-0-WR521-.. | HP-010-2-WR521-.. | -- |
| NPT (National Pipe, Tapered) | |||
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |
| NPT(M) 1/2" | HP-010-0-NP021-.. | HP-010-2-NP021-.. | HP-010-1-NP021-.. |
| NPT(F) 1/2" | HP-010-0-NP521-.. | HP-010-2-NP521-.. | -- |
| BSPP(M) with 60° Female cone (usually to fit hose ends with BSP swivel nuts) | |||
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |
| BSPP(M) 1/2"w/60° F cone | HP-010-0-VR021-.. | HP-010-2-VR021-.. | -- |
| DIN 7631, M14 x 1.5mm with 60° Female cone (usually to fit hoses with metric swivel nuts) | |||
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |
| M18 x 1.5 | HP-010-0-D1018-.. | HP-010-2-D1018-.. | -- |
| M22 x 1.5 | HP-010-0-D1222-.. | HP-010-2-D1222-.. | -- |
| EO (Ermeto) to fit tube & ferrule | |||
| End fitting | Self-sealing Coupling | Self-sealing Nipple | Thru type Nipple |
| M20 x 1.5 12mm tube OD (Heavy) | HP-010-0-S1220-.. | HP-010-2-S1220-.. | -- |
| M22 x 1.5 14mm OD tube (Heavy) | HP-010-0-S1422-.. | HP-010-2-S1422-.. | -- |
| M24 x 1.5 16mm OD tube (Heavy) | HP-010-0-S1624-.. | HP-010-2-S1624-.. | -- |
Dust Caps & Dust Plugs - Part numbers for Series HP-010
| Material | Plugs for Couplings (Female side) | Caps for Adapters (Male side) |
|---|---|---|
| Non-pressure retaining1 | HP-010-6-73-KU | HP-010-5-73-KU |
| Pressure retaining2 | HP-010-6-12 | HP-010-5-12-1 (Nitrile)HP-010-5-12-2 (Viton)HP-010-5-12-4 (EPDM) |
* Plugs and caps are available for both self-sealing & thru-type couplings and adapters.1. Soft PVC (black)2. Oil burnished steel, nickel-plated steel chain and retaining rings

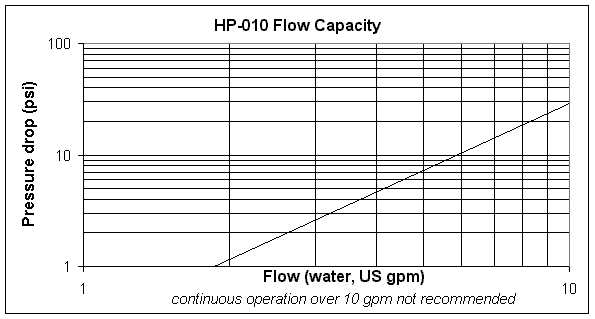

Flow Capacity

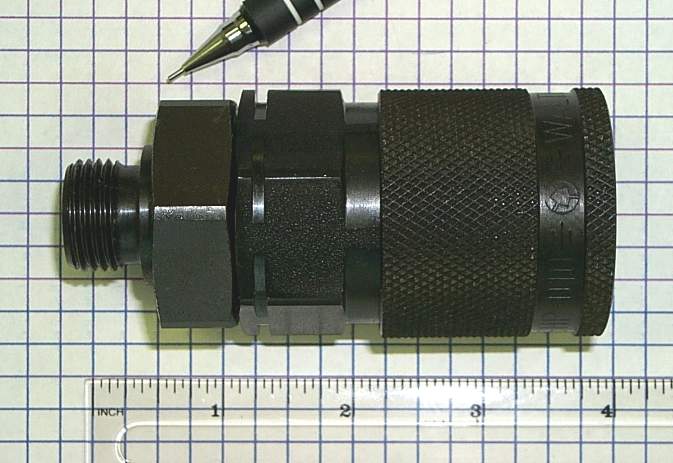

1/2" BSPP(M), Self-sealing Coupling
Partial Part Number: HP-010-0-WB021-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-0-WB021-12-1 | HP-010-0-WB021-12-2 | HP-010-0-WB021-12-4 |  |
| Steel, 316 stainless | HP-010-0-WB021-01-1 | HP-010-0-WB021-01-2 | HP-010-0-WB021-01-4 | -- |
| Steel, electroless nickel pl. | HP-010-0-WB021-13-1 | HP-010-0-WB021-13-2 | HP-010-0-WB021-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.

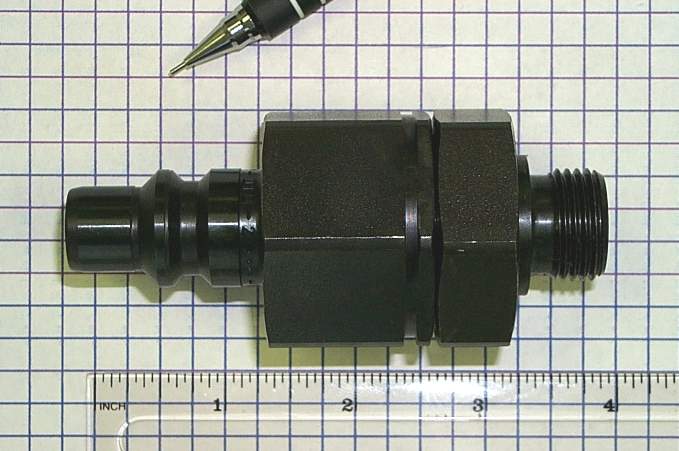

1/2" BSPP(M), Self-sealing Nipple
Partial Part Number: HP-010-2-WB021-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-2-WB021-12-1 | HP-010-2-WB021-12-2 | HP-010-2-WB021-12-4 |  |
| Steel, 316 stainless | HP-010-2-WB021-01-1 | HP-010-2-WB021-01-2 | HP-010-2-WB021-01-4 | -- |
| Steel, stainless, hardened | HP-010-2-WB021-W1-1 | HP-010-2-WB021-W1-2 | HP-010-2-WB021-W1-4 | -- |
| Steel, electroless nickel pl. | HP-010-2-WB021-13-1 | HP-010-2-WB021-13-2 | HP-010-2-WB021-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.

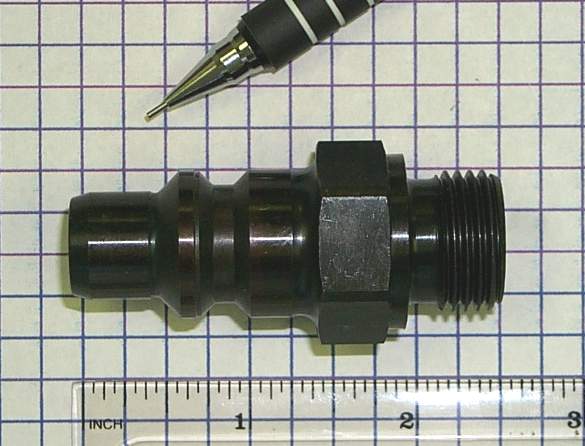

1/2" BSPP(M), Thru type Nipple
Partial Part Number: HP-010-1-WB021-..
Find complete part numbers below:
| Material | Part Number | Click to Enlarge | ||
|---|---|---|---|---|
| Steel, hardened, oil burnished | HP-010-1-WB021-12 |  |
||
| Steel, 316 stainless | HP-010-1-WB021-01 | -- | ||
| Steel, stainless, hardened | HP-010-2-WB021-W1 | -- | ||
| Steel, electroless nickel pl. | HP-010-1-WB021-13 | -- | ||
| Standard materials in bold. Other materials & seals available. | ||||
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
1/2" BSPP(F), Self-sealing Coupling
Partial Part Number: HP-010-0-WR521-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-0-WR521-12-1 | HP-010-0-WR521-12-2 | HP-010-0-WR521-12-4 |  |
| Steel, 316 stainless | HP-010-0-WR521-01-1 | HP-010-0-WR521-01-2 | HP-010-0-WR521-01-4 | -- |
| Steel, electroless nickel pl. | HP-010-0-WR521-13-1 | HP-010-0-WR521-13-2 | HP-010-0-WR521-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
1/2" BSPP(F), Self-sealing Nipple
Partial Part Number: HP-010-2-WR521-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-2-WR521-12-1 | HP-010-2-WR521-12-2 | HP-010-2-WR521-12-4 | |
| Steel, 316 stainless | HP-010-2-WR521-01-1 | HP-010-2-WR521-01-2 | HP-010-2-WR521-01-4 | -- |
| Steel, stainless, hardened | HP-010-2-WR521-W1-1 | HP-010-2-WR521-W1-2 | HP-010-2-WR521-W1-4 | -- |
| Steel, electroless nickel pl. | HP-010-2-WR521-13-1 | HP-010-2-WR521-13-2 | HP-010-2-WR521-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
1/2" NPT(M), Self-sealing Coupling
Partial Part Number: HP-010-0-NP021-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-0-NP021-12-1 | HP-010-0-NP021-12-2 | HP-010-0-NP021-12-4 | -- |
| Steel, 316 stainless | HP-010-0-NP021-01-1 | HP-010-0-NP021-01-2 | HP-010-0-NP021-01-4 | -- |
| Steel, electroless nickel pl. | HP-010-0-NP021-13-1 | HP-010-0-NP021-13-2 | HP-010-0-NP021-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
1/2" NPT(M), Self-sealing Nipple
Partial Part Number: HP-010-2-NP021-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-2-NP021-12-1 | HP-010-2-NP021-12-2 | HP-010-2-NP021-12-4 | -- |
| Steel, 316 stainless | HP-010-2-NP021-01-1 | HP-010-2-NP021-01-2 | HP-010-2-NP021-01-4 | -- |
| Steel, stainless, hardened | HP-010-2-NP021-W1-1 | HP-010-2-NP021-W1-2 | HP-010-2-NP021-W1-4 | -- |
| Steel, electroless nickel pl. | HP-010-2-NP021-13-1 | HP-010-2-NP021-13-2 | HP-010-2-NP021-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
1/2" NPT(M), Thru type Nipple
Partial Part Number: HP-010-1-NP021-..
Find complete part numbers below:
| Material | Part Number | Click to Enlarge | ||
|---|---|---|---|---|
| Steel, hardened, oil burnished | HP-010-1-WB017-12 | -- | ||
| Steel, 316 stainless | HP-010-1-NP021-01 | -- | ||
| Steel, stainless, hardened | HP-010-2-WB017-W1 | -- | ||
| Steel, electroless nickel pl. | HP-010-1-WB017-13 | -- | ||
| Standard materials in bold. Other materials & seals available. | ||||
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.

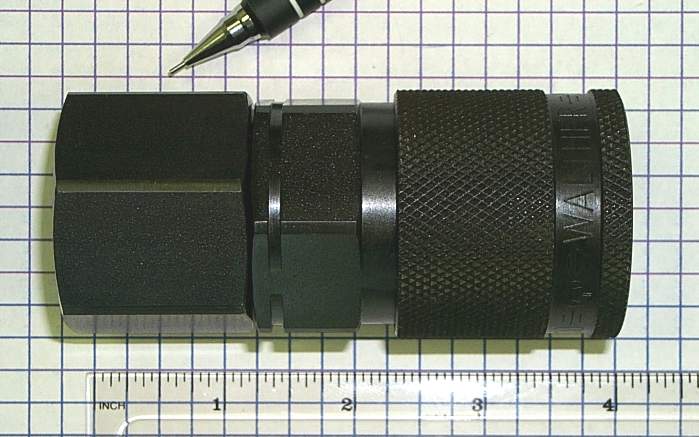

1/2" NPT(F), Self-sealing Coupling
Partial Part Number: HP-010-0-NP521-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-0-NP521-12-1 | HP-010-0-NP521-12-2 | HP-010-0-NP521-12-4 |  |
| Steel, 316 stainless | HP-010-0-NP521-01-1 | HP-010-0-NP521-01-2 | HP-010-0-NP521-01-4 |  |
| Steel, electroless nickel pl. | HP-010-0-NP521-13-1 | HP-010-0-NP521-13-2 | HP-010-0-NP521-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.

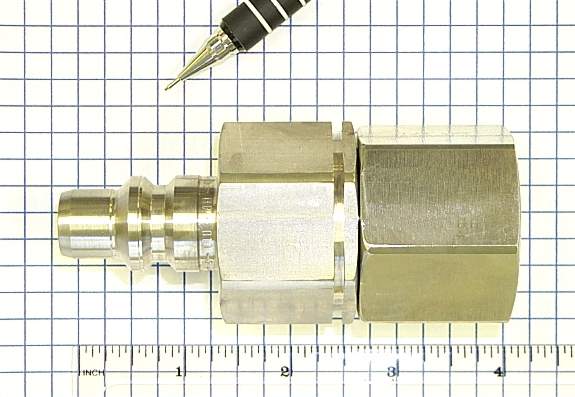

1/2" NPT(F), Self-sealing Nipple
Partial Part Number: HP-010-2-NP521-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-2-NP521-12-1 | HP-010-2-NP521-12-2 | HP-010-2-NP521-12-4 |  |
| Steel, 316 stainless | HP-010-2-NP521-01-1 | HP-010-2-NP521-01-2 | HP-010-2-NP521-01-4 |  |
| Steel, stainless, hardened | HP-010-2-NP521-W1-1 | HP-010-2-NP521-W1-2 | HP-010-2-NP521-W1-4 | -- |
| Steel, electroless nickel pl. | HP-010-2-NP521-13-1 | HP-010-2-NP521-13-2 | HP-010-2-NP521-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
1/2" BSPP(M) w/60° F cone, Self-sealing Coupling
Partial Part Number: HP-010-0-VR021-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-0-VR021-12-1 | HP-010-0-VR021-12-2 | HP-010-0-VR021-12-4 | -- |
| Steel, 316 stainless | HP-010-0-VR021-01-1 | HP-010-0-VR021-01-2 | HP-010-0-VR021-01-4 | -- |
| Steel, electroless nickel pl. | HP-010-0-VR021-13-1 | HP-010-0-VR021-13-2 | HP-010-0-VR021-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
1/2" BSPP(M) w/60° F cone, Self-sealing Nipple
Partial Part Number: HP-010-2-VR021-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-2-VR021-12-1 | HP-010-2-VR021-12-2 | HP-010-2-VR021-12-4 | -- |
| Steel, 316 stainless | HP-010-2-VR021-01-1 | HP-010-2-VR021-01-2 | HP-010-2-VR021-01-4 | -- |
| Steel, stainless, hardened | HP-010-2-VR021-W1-1 | HP-010-2-VR021-W1-2 | HP-010-2-VR021-W1-4 | -- |
| Steel, electroless nickel pl. | HP-010-2-VR021-13-1 | HP-010-2-VR021-13-2 | HP-010-2-VR021-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M18 x 1.5 w/60° F cone, Self-sealing Coupling
Partial Part Number: HP-010-0-D1018-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-0-D1018-12-1 | HP-010-0-D1018-12-2 | HP-010-0-D1018-12-4 | -- |
| Steel, 316 stainless | HP-010-0-D1018-01-1 | HP-010-0-D1018-01-2 | HP-010-0-D1018-01-4 | -- |
| Steel, electroless nickel pl. | HP-010-0-D1018-13-1 | HP-010-0-D1018-13-2 | HP-010-0-D1018-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M18 x 1.5 w/60° F cone, Self-sealing Nipple
Partial Part Number: HP-010-2-D1018-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-2-D1018-12-1 | HP-010-2-D1018-12-2 | HP-010-2-D1018-12-4 | -- |
| Steel, 316 stainless | HP-010-2-D1018-01-1 | HP-010-2-D1018-01-2 | HP-010-2-D1018-01-4 | -- |
| Steel, stainless, hardened | HP-010-2-D1018-W1-1 | HP-010-2-D1018-W1-2 | HP-010-2-D1018-W1-4 | -- |
| Steel, electroless nickel pl. | HP-010-2-D1018-13-1 | HP-010-2-D1018-13-2 | HP-010-2-D1018-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M22 x 1.5 w/60° F cone, Self-sealing Coupling
Partial Part Number: HP-010-0-D1222-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-0-D1222-12-1 | HP-010-0-D1222-12-2 | HP-010-0-D1222-12-4 | -- |
| Steel, 316 stainless | HP-010-0-D1222-01-1 | HP-010-0-D1222-01-2 | HP-010-0-D1222-01-4 | -- |
| Steel, electroless nickel pl. | HP-010-0-D1222-13-1 | HP-010-0-D1222-13-2 | HP-010-0-D1222-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M22 x 1.5 w/60° F cone, Self-sealing Nipple
Partial Part Number: HP-010-2-D1222-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-2-D1222-12-1 | HP-010-2-D1222-12-2 | HP-010-2-D1222-12-4 | -- |
| Steel, 316 stainless | HP-010-2-D1222-01-1 | HP-010-2-D1222-01-2 | HP-010-2-D1222-01-4 | -- |
| Steel, stainless, hardened | HP-010-2-D1222-W1-1 | HP-010-2-D1222-W1-2 | HP-010-2-D1222-W1-4 | -- |
| Steel, electroless nickel pl. | HP-010-2-D1222-13-1 | HP-010-2-D1222-13-2 | HP-010-2-D1222-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M20 x 1.5 12mm tube OD (Heavy), Self-sealing Coupling
Partial Part Number: HP-010-0-S1220-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-0-S1220-12-1 | HP-010-0-S1220-12-2 | HP-010-0-S1220-12-4 | -- |
| Steel, 316 stainless | HP-010-0-S1220-01-1 | HP-010-0-S1220-01-2 | HP-010-0-S1220-01-4 | -- |
| Steel, electroless nickel pl. | HP-010-0-S1220-13-1 | HP-010-0-S1220-13-2 | HP-010-0-S1220-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M20 x 1.5 12mm tube OD (Heavy), Self-sealing Nipple
Partial Part Number: HP-010-2-S1220-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-2-S1220-12-1 | HP-010-2-S1220-12-2 | HP-010-2-S1220-12-4 | -- |
| Steel, 316 stainless | HP-010-2-S1220-01-1 | HP-010-2-S1220-01-2 | HP-010-2-S1220-01-4 | -- |
| Steel, stainless, hardened | HP-010-2-S1220-W1-1 | HP-010-2-S1220-W1-2 | HP-010-2-S1220-W1-4 | -- |
| Steel, electroless nickel pl. | HP-010-2-S1220-13-1 | HP-010-2-S1220-13-2 | HP-010-2-S1220-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M22 x 1.5 14mm tube OD (Heavy), Self-sealing Coupling
Partial Part Number: HP-010-0-S1422-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-0-S1422-12-1 | HP-010-0-S1422-12-2 | HP-010-0-S1422-12-4 | -- |
| Steel, 316 stainless | HP-010-0-S1422-01-1 | HP-010-0-S1422-01-2 | HP-010-0-S1422-01-4 | -- |
| Steel, electroless nickel pl. | HP-010-0-S1422-13-1 | HP-010-0-S1422-13-2 | HP-010-0-S1422-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M22 x 1.5 14mm tube OD (Heavy), Self-sealing Nipple
Partial Part Number: HP-010-2-S1422-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-2-S1422-12-1 | HP-010-2-S1422-12-2 | HP-010-2-S1422-12-4 | -- |
| Steel, 316 stainless | HP-010-2-S1422-01-1 | HP-010-2-S1422-01-2 | HP-010-2-S1422-01-4 | -- |
| Steel, stainless, hardened | HP-010-2-S1422-W1-1 | HP-010-2-S1422-W1-2 | HP-010-2-S1422-W1-4 | -- |
| Steel, electroless nickel pl. | HP-010-2-S1422-13-1 | HP-010-2-S1422-13-2 | HP-010-2-S1422-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.

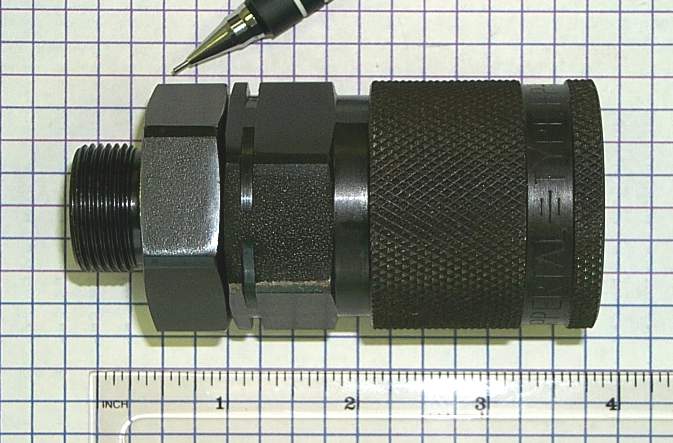

M24 x 1.5 16mm tube OD (Heavy), Self-sealing Coupling
Partial Part Number: HP-010-0-S1624-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-0-S1624-12-1 | HP-010-0-S1624-12-2 | HP-010-0-S1624-12-4 |  |
| Steel, 316 stainless | HP-010-0-S1624-01-1 | HP-010-0-S1624-01-2 | HP-010-0-S1624-01-4 | -- |
| Steel, electroless nickel pl. | HP-010-0-S1624-13-1 | HP-010-0-S1624-13-2 | HP-010-0-S1624-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.

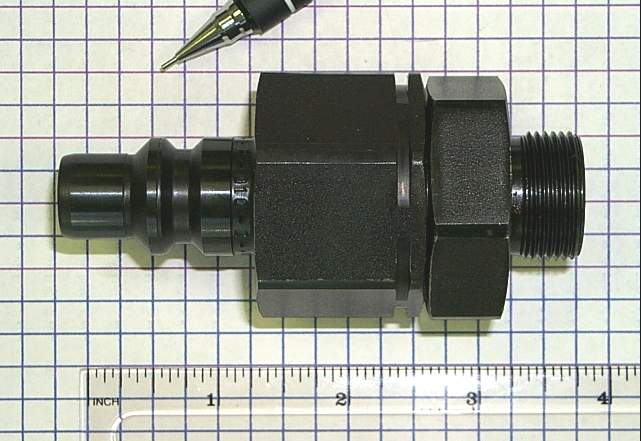

M24 x 1.5 16mm tube OD (Heavy), Self-sealing Nipple
Partial Part Number: HP-010-2-S1624-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-010-2-S1624-12-1 | HP-010-2-S1624-12-2 | HP-010-2-S1624-12-4 |  |
| Steel, 316 stainless | HP-010-2-S1624-01-1 | HP-010-2-S1624-01-2 | HP-010-2-S1624-01-4 | -- |
| Steel, stainless, hardened | HP-010-2-S1624-W1-1 | HP-010-2-S1624-W1-2 | HP-010-2-S1624-W1-4 | -- |
| Steel, electroless nickel pl. | HP-010-2-S1624-13-1 | HP-010-2-S1624-13-2 | HP-010-2-S1624-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
Contact one of our sales representatives today
to inquire about a quote from Maxbar | Walther Precision USA
or call us today at (832) 327-0534
Maxbar, Inc.
Products & Services
