Walther Coupling Model HP-032
Need A Quote?Coupling Information

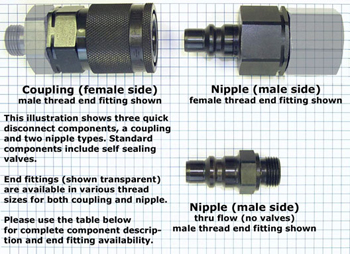

There are three basic types of HP-032 coupling. Part numbers for each are listed below.
| Valve arrangement | The Coupling (Female side) | The Nipple (Male side) |
|---|---|---|
| Standard (with valves) | HP-032-0-... | HP-032-2-... |
| No valves (thru type) | Use HP-032-0-... with - OV option | HP-032-1-... |
End Fittings
(Refer to Part Number System)| BSPP (British Standard Pipe, Parallel) with shoulder | |||
|---|---|---|---|
| End Fitting | Self-Sealing Coupling | Self-Sealing Nipple | Thru-type Nipple |
| BSPP(M) 1-1/2" | HP-032-0-WB048-.. | HP-032-2-WB048-.. | HP-032-1-WB048-.. |
| BSPP(M) 2" | HP-032-0-WB060-.. | HP-032-2-WB060-.. | HP-032-1-WB060-.. |
| NPT (National Pipe, Tapered) | |||
| End Fitting | Self-Sealing Coupling | Self-Sealing Nipple | Thru-type Nipple |
| NPT(F) 1-1/4" | HP-032-0-NP542-.. | HP-032-2-NP542-.. | -- |
| NPT(M) 1-1/2" | HP-032-0-NP048-.. | HP-032-2-NP048-.. | HP-032-1-NP048-.. |
| NPT(M) 2" | HP-032-0-NP060-.. | HP-032-2-NP060-.. | HP-032-1-NP060-.. |
| JIC (SAE 37° Flare) | |||
| End Fitting | Self-Sealing Coupling | Self-Sealing Nipple | Thru-type Nipple |

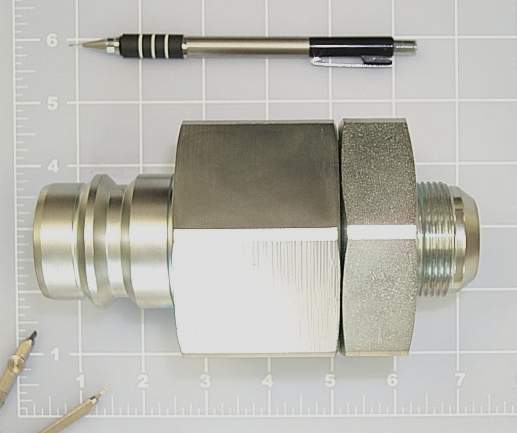

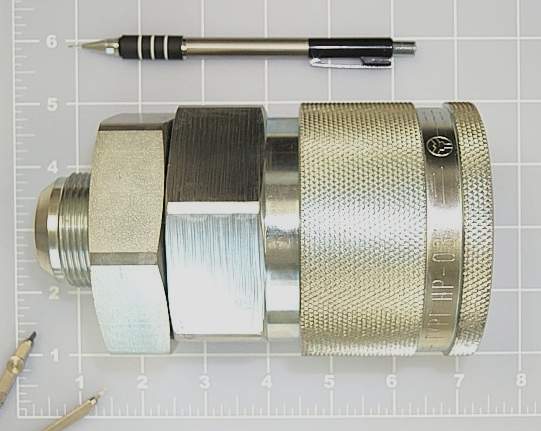

| -20 JIC(M) | HP-032-0-LH041-.. | HP-032-2-LH041-.. | -- |
| DIN 7631, M14 x 1.5mm with 60° Female cone(usually to fit hoses with metric swivel nuts) | |||
| End Fitting | Self-Sealing Coupling | Self-Sealing Nipple | Thru-type Nipple |
| M38 x 1.5 | HP-032-0-D2538-.. | HP-032-2-D2538-.. | -- |
| M45 x 1.5 | HP-032-0-D3245-.. | HP-032-2-D3245-.. | -- |
| EO (Ermeto) to fit tube & ferrule | |||
| End Fitting | Self-Sealing Coupling | Self-Sealing Nipple | Thru-type Nipple |
| 30mm OD tube (Heavy) | HP-032-0-S3042-.. | HP-032-2-S3042-.. | -- |
| M52 x 238mm OD tube (Heavy) | HP-032-0-S3852-.. | HP-032-2-S3852-.. | -- |
Dust Caps & Dust Plugs - Part numbers for Series HP-032
| Material | Plugs for Couplings (Female side) | Caps for Adapters (Male side) |
|---|---|---|
| Non-pressure retaining1 | HP-032-6-74-KK | HP-032-5-74-KK |
| Pressure retaining2 | HP-032-6-12 | HP-032-5-12-1 (Nitrile) HP-032-5-12-2 (Viton) HP-032-5-12-4 (EPDM) |
* Plugs and caps are available for both self-sealing & thru-type couplings and adapters.1. Soft PVC (grey), nickel-plated steel chain and retaining ring2. Oil burnished steel, nickel-plated steel chain and retaining rings

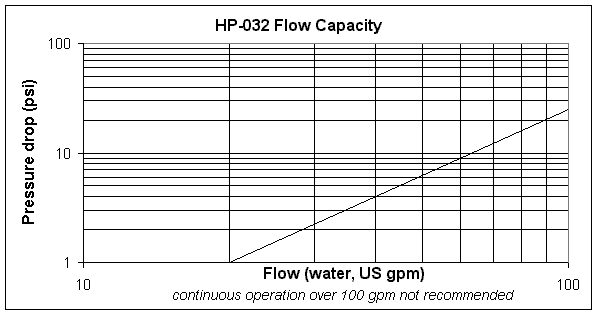

Flow Capacity
1-1/2" BSPP(M), Self-sealing Coupling
Partial Part Number: HP-032-0-WB048-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-0-WB048-12-1 | HP-032-0-WB048-12-2 | HP-032-0-WB048-12-4 | -- |
| Steel, zinc plated | HP-032-0-WB048-11-1 | HP-032-0-WB048-11-2 | HP-032-0-WB048-11-4 | -- |
| Steel, 316 stainless | HP-032-0-WB048-01-1 | HP-032-0-WB048-01-2 | HP-032-0-WB048-01-4 | -- |
| Steel, electroless nickel pl. | HP-032-0-WB048-13-1 | HP-032-0-WB048-13-2 | HP-032-0-WB048-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
| Ring grips | -GG |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
1-1/2" BSPP(M), Self-sealing Nipple
Partial Part Number: HP-032-2-WB048-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-2-WB048-12-1 | HP-032-2-WB048-12-2 | HP-032-2-WB048-12-4 | -- |
| Steel, zinc plated | HP-032-2-WB048-11-1 | HP-032-2-WB048-11-2 | HP-032-2-WB048-11-4 | -- |
| Steel, 316 stainless | HP-032-2-WB048-01-1 | HP-032-2-WB048-01-2 | HP-032-2-WB048-01-4 | -- |
| Steel, stainless, hardened | HP-032-2-WB048-W1-1 | HP-032-2-WB048-W1-2 | HP-032-2-WB048-W1-4 | -- |
| Steel, electroless nickel pl. | HP-032-2-WB048-13-1 | HP-032-2-WB048-13-2 | HP-032-2-WB048-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
1-1/2" BSPP(M), Thru type Nipple
Partial Part Number: HP-032-1-WB048-..
Find complete part numbers below:
| Material | Part Number | Click to Enlarge | ||
|---|---|---|---|---|
| Steel, hardened, oil burnished | HP-032-1-WB048-12 | -- | ||
| Steel, zinc plated | HP-032-1-WB048-11 | -- | ||
| Steel, 316 stainless | HP-032-1-WB048-01 | -- | ||
| Steel, stainless, hardened | HP-032-1-WB048-W1 | -- | ||
| Steel, electroless nickel pl. | HP-032-1-WB048-13 | -- | ||
| Standard materials in bold. Other materials & seals available. | ||||
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
2" BSPP(M), Self-sealing Coupling
Partial Part Number: HP-032-0-WB060-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-0-WB060-12-1 | HP-032-0-WB060-12-2 | HP-032-0-WB060-12-4 | -- |
| Steel, zinc plated | HP-032-0-WB060-11-1 | HP-032-0-WB060-11-2 | HP-032-0-WB060-11-4 | -- |
| Steel, 316 stainless | HP-032-0-WB060-01-1 | HP-032-0-WB060-01-2 | HP-032-0-WB060-01-4 | -- |
| Steel, electroless nickel pl. | HP-032-0-WB060-13-1 | HP-032-0-WB060-13-2 | HP-032-0-WB060-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
| Ring grips | -GG |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
2" BSPP(M), Self-sealing Nipple
Partial Part Number: HP-032-2-WB060-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-2-WB060-12-1 | HP-032-2-WB060-12-2 | HP-032-2-WB060-12-4 | -- |
| Steel, zinc plated | HP-032-2-WB060-11-1 | HP-032-2-WB060-11-2 | HP-032-2-WB060-11-4 | -- |
| Steel, 316 stainless | HP-032-2-WB060-01-1 | HP-032-2-WB060-01-2 | HP-032-2-WB060-01-4 | -- |
| Steel, stainless, hardened | HP-032-2-WB060-W1-1 | HP-032-2-WB060-W1-2 | HP-032-2-WB060-W1-4 | -- |
| Steel, electroless nickel pl. | HP-032-2-WB060-13-1 | HP-032-2-WB060-13-2 | HP-032-2-WB060-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
2" BSPP(M), Thru type Nipple
Partial Part Number: HP-032-1-WB060-..
Find complete part numbers below:
| Material | Part Number | Click to Enlarge | ||
|---|---|---|---|---|
| Steel, hardened, oil burnished | HP-032-1-WB060-12 | -- | ||
| Steel, zinc plated | HP-032-1-WB060-11 | -- | ||
| Steel, 316 stainless | HP-032-1-WB060-01 | -- | ||
| Steel, stainless, hardened | HP-032-1-WB060-W1 | -- | ||
| Steel, electroless nickel pl. | HP-032-1-WB060-13 | -- | ||
| Standard materials in bold. Other materials & seals available. | ||||
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.

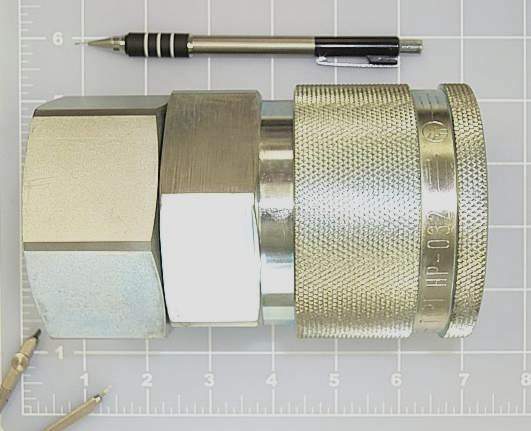

1-1/4" NPT(F), Self-sealing Coupling
Partial Part Number: HP-032-0-NP542-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-0-NP542-12-1 | HP-032-0-NP542-12-2 | HP-032-0-NP542-12-4 | -- |
| Steel, zinc plated | HP-032-0-NP542-11-1 | HP-032-0-NP542-11-2 | HP-032-0-NP542-11-4 |  |
| Steel, 316 stainless | HP-032-0-NP542-01-1 | HP-032-0-NP542-01-2 | HP-032-0-NP542-01-4 | -- |
| Steel, electroless nickel pl. | HP-032-0-NP542-13-1 | HP-032-0-NP542-13-2 | HP-032-0-NP542-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
| Ring grips | -GG |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.

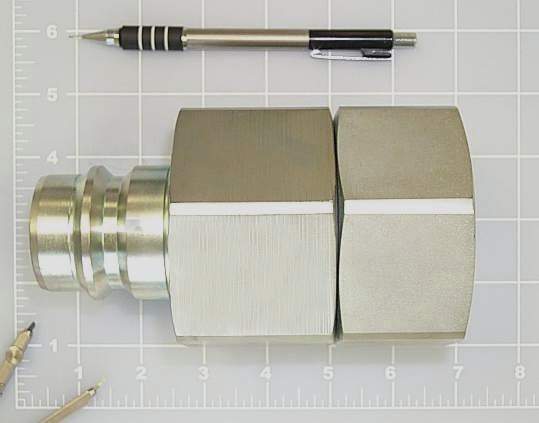

1-1/4" NPT(F), Self-sealing Nipple
Partial Part Number: HP-032-2-NP542-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-2-NP542-12-1 | HP-032-2-NP542-12-2 | HP-032-2-NP542-12-4 | -- |
| Steel, zinc plated | HP-032-2-NP542-11-1 | HP-032-2-NP542-11-2 | HP-032-2-NP542-11-4 |  |
| Steel, 316 stainless | HP-032-2-NP542-01-1 | HP-032-2-NP542-01-2 | HP-032-2-NP542-01-4 | -- |
| Steel, stainless, hardened | HP-032-2-NP542-W1-1 | HP-032-2-NP542-W1-2 | HP-032-2-NP542-W1-4 | -- |
| Steel, electroless nickel pl. | HP-032-2-NP542-13-1 | HP-032-2-NP542-13-2 | HP-032-2-NP542-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
1-1/2" NPT(M), Self-sealing Coupling
Partial Part Number: HP-032-0-NP048-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-0-NP048-12-1 | HP-032-0-NP048-12-2 | HP-032-0-NP048-12-4 | -- |
| Steel, zinc plated | HP-032-0-NP048-11-1 | HP-032-0-NP048-11-2 | HP-032-0-NP048-11-4 | -- |
| Steel, 316 stainless | HP-032-0-NP048-01-1 | HP-032-0-NP048-01-2 | HP-032-0-NP048-01-4 | -- |
| Steel, electroless nickel pl. | HP-032-0-NP048-13-1 | HP-032-0-NP048-13-2 | HP-032-0-NP048-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
| Ring grips | -GG |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
1-1/2" NPT(M), Self-sealing Nipple
Partial Part Number: HP-032-2-NP048-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-2-NP048-12-1 | HP-032-2-NP048-12-2 | HP-032-2-NP048-12-4 | -- |
| Steel, zinc plated | HP-032-2-NP048-11-1 | HP-032-2-NP048-11-2 | HP-032-2-NP048-11-4 | -- |
| Steel, 316 stainless | HP-032-2-NP048-01-1 | HP-032-2-NP048-01-2 | HP-032-2-NP048-01-4 | -- |
| Steel, stainless, hardened | HP-032-2-NP048-W1-1 | HP-032-2-NP048-W1-2 | HP-032-2-NP048-W1-4 | -- |
| Steel, electroless nickel pl. | HP-032-2-NP048-13-1 | HP-032-2-NP048-13-2 | HP-032-2-NP048-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
1-1/2" NPT(M), Thru type Nipple
Partial Part Number: HP-032-1-NP048-..
Find complete part numbers below:
| Material | Part Number | Click to Enlarge | ||
|---|---|---|---|---|
| Steel, hardened, oil burnished | HP-032-1-NP048-12 | -- | ||
| Steel, zinc plated | HP-032-1-NP048-11 | -- | ||
| Steel, 316 stainless | HP-032-1-NP048-01 | -- | ||
| Steel, stainless, hardened | HP-032-1-NP048-W1 | -- | ||
| Steel, electroless nickel pl. | HP-032-1-NP048-13 | -- | ||
| Standard materials in bold. Other materials & seals available. | ||||
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
2" NPT(M), Self-sealing Coupling
Partial Part Number: HP-032-0-NP060-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-0-NP060-12-1 | HP-032-0-NP060-12-2 | HP-032-0-NP060-12-4 | -- |
| Steel, zinc plated | HP-032-0-NP060-11-1 | HP-032-0-NP060-11-2 | HP-032-0-NP060-11-4 | -- |
| Steel, 316 stainless | HP-032-0-NP060-01-1 | HP-032-0-NP060-01-2 | HP-032-0-NP060-01-4 | -- |
| Steel, electroless nickel pl. | HP-032-0-NP060-13-1 | HP-032-0-NP060-13-2 | HP-032-0-NP060-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
| Ring grips | -GG |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
2" NPT(M), Self-sealing Nipple
Partial Part Number: HP-032-2-NP060-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-2-NP060-12-1 | HP-032-2-NP060-12-2 | HP-032-2-NP060-12-4 | -- |
| Steel, zinc plated | HP-032-2-NP060-11-1 | HP-032-2-NP060-11-2 | HP-032-2-NP060-11-4 | -- |
| Steel, 316 stainless | HP-032-2-NP060-01-1 | HP-032-2-NP060-01-2 | HP-032-2-NP060-01-4 | -- |
| Steel, stainless, hardened | HP-032-2-NP060-W1-1 | HP-032-2-NP060-W1-2 | HP-032-2-NP060-W1-4 | -- |
| Steel, electroless nickel pl. | HP-032-2-NP060-13-1 | HP-032-2-NP060-13-2 | HP-032-2-NP060-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
2" NPT(M), Thru type Nipple
Partial Part Number: HP-032-1-NP060-..
Find complete part numbers below:
| Material | Part Number | Click to Enlarge | ||
|---|---|---|---|---|
| Steel, hardened, oil burnished | HP-032-1-NP060-12 | -- | ||
| Steel, zinc plated | HP-032-1-NP060-11 | -- | ||
| Steel, 316 stainless | HP-032-1-NP060-01 | -- | ||
| Steel, stainless, hardened | HP-032-1-NP060-W1 | -- | ||
| Steel, electroless nickel pl. | HP-032-1-NP060-13 | -- | ||
| Standard materials in bold. Other materials & seals available. | ||||
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
20 JIC(M), Self-sealing Coupling
Partial Part Number: HP-032-0-LH041-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-0-LH041-12-1 | HP-032-0-LH041-12-2 | HP-032-0-LH041-12-4 | -- |
| Steel, zinc plated | HP-032-0-LH041-11-1 | HP-032-0-LH041-11-2 | HP-032-0-LH041-11-4 |  |
| Steel, 316 stainless | HP-032-0-LH041-01-1 | HP-032-0-LH041-01-2 | HP-032-0-LH041-01-4 | -- |
| Steel, electroless nickel pl. | HP-032-0-LH041-13-1 | HP-032-0-LH041-13-2 | HP-032-0-LH041-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
| Ring grips | -GG |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
20 JIC(M), Self-sealing Nipple
Partial Part Number: HP-032-2-LH041-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-2-LH041-12-1 | HP-032-2-LH041-12-2 | HP-032-2-LH041-12-4 | -- |
| Steel, zinc plated | HP-032-2-LH041-11-1 | HP-032-2-LH041-11-2 | HP-032-2-LH041-11-4 |  |
| Steel, 316 stainless | HP-032-2-LH041-01-1 | HP-032-2-LH041-01-2 | HP-032-2-LH041-01-4 | -- |
| Steel, stainless, hardened | HP-032-2-LH041-W1-1 | HP-032-2-LH041-W1-2 | HP-032-2-LH041-W1-4 | -- |
| Steel, electroless nickel pl. | HP-032-2-LH041-13-1 | HP-032-2-LH041-13-2 | HP-032-2-LH041-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M38 x 1.5 w/60° F cone, Self-sealing Coupling
Partial Part Number: HP-032-0-D2538-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-0-D2538-12-1 | HP-032-0-D2538-12-2 | HP-032-0-D2538-12-4 | -- |
| Steel, zinc plated | HP-032-0-D2538-11-1 | HP-032-0-D2538-11-2 | HP-032-0-D2538-11-4 | -- |
| Steel, 316 stainless | HP-032-0-D2538-01-1 | HP-032-0-D2538-01-2 | HP-032-0-D2538-01-4 | -- |
| Steel, electroless nickel pl. | HP-032-0-D2538-13-1 | HP-032-0-D2538-13-2 | HP-032-0-D2538-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
| Ring grips | -GG |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M38 x 1.5 w/60° F cone, Self-sealing Nipple
Partial Part Number: HP-032-2-D2538-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-2-D2538-12-1 | HP-032-2-D2538-12-2 | HP-032-2-D2538-12-4 | -- |
| Steel, zinc plated | HP-032-2-D2538-11-1 | HP-032-2-D2538-11-2 | HP-032-2-D2538-11-4 | -- |
| Steel, 316 stainless | HP-032-2-D2538-01-1 | HP-032-2-D2538-01-2 | HP-032-2-D2538-01-4 | -- |
| Steel, stainless, hardened | HP-032-2-D2538-W1-1 | HP-032-2-D2538-W1-2 | HP-032-2-D2538-W1-4 | -- |
| Steel, electroless nickel pl. | HP-032-2-D2538-13-1 | HP-032-2-D2538-13-2 | HP-032-2-D2538-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M45 x 1.5 w/60° F cone, Self-sealing Coupling
Partial Part Number: HP-032-0-D3245-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-0-D3245-12-1 | HP-032-0-D3245-12-2 | HP-032-0-D3245-12-4 | -- |
| Steel, 316 stainless | HP-032-0-D3245-01-1 | HP-032-0-D3245-01-2 | HP-032-0-D3245-01-4 | -- |
| Steel, electroless nickel pl. | HP-032-0-D3245-13-1 | HP-032-0-D3245-13-2 | HP-032-0-D3245-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
| Ring grips | -GG |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M45 x 1.5 w/60° F cone, Self-sealing Nipple
Partial Part Number: HP-032-2-D3245-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-2-D3245-12-1 | HP-032-2-D3245-12-2 | HP-032-2-D3245-12-4 | -- |
| Steel, zinc plated | HP-032-2-D3245-11-1 | HP-032-2-D3245-11-2 | HP-032-2-D3245-11-4 | -- |
| Steel, 316 stainless | HP-032-2-D3245-01-1 | HP-032-2-D3245-01-2 | HP-032-2-D3245-01-4 | -- |
| Steel, stainless, hardened | HP-032-2-D3245-W1-1 | HP-032-2-D3245-W1-2 | HP-032-2-D3245-W1-4 | -- |
| Steel, electroless nickel pl. | HP-032-2-D3245-13-1 | HP-032-2-D3245-13-2 | HP-032-2-D3245-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M42 x 2 30mm tube OD (Heavy), Self-sealing Coupling
Partial Part Number: HP-032-0-S3042-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-0-S3042-12-1 | HP-032-0-S3042-12-2 | HP-032-0-S3042-12-4 | -- |
| Steel, zinc plated | HP-032-0-S3042-11-1 | HP-032-0-S3042-11-2 | HP-032-0-S3042-11-4 | -- |
| Steel, 316 stainless | HP-032-0-S3042-01-1 | HP-032-0-S3042-01-2 | HP-032-0-S3042-01-4 | -- |
| Steel, electroless nickel pl. | HP-032-0-S3042-13-1 | HP-032-0-S3042-13-2 | HP-032-0-S3042-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
| Ring grips | -GG |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M42 x 2 30mm tube OD (Heavy), Self-sealing Nipple
Partial Part Number: HP-032-2-S3042-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-2-S3042-12-1 | HP-032-2-S3042-12-2 | HP-032-2-S3042-12-4 | -- |
| Steel, zinc plated | HP-032-2-S3042-11-1 | HP-032-2-S3042-11-2 | HP-032-2-S3042-11-4 | -- |
| Steel, 316 stainless | HP-032-2-S3042-01-1 | HP-032-2-S3042-01-2 | HP-032-2-S3042-01-4 | -- |
| Steel, stainless, hardened | HP-032-2-S3042-W1-1 | HP-032-2-S3042-W1-2 | HP-032-2-S3042-W1-4 | -- |
| Steel, electroless nickel pl. | HP-032-2-S3042-13-1 | HP-032-2-S3042-13-2 | HP-032-2-S3042-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M52 x 2 38mm tube OD (Heavy), Self-sealing Coupling
Partial Part Number: HP-032-0-S3852-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-0-S3852-12-1 | HP-032-0-S3852-12-2 | HP-032-0-S3852-12-4 | -- |
| Steel, zinc plated | HP-032-0-S3852-11-1 | HP-032-0-S3852-11-2 | HP-032-0-S3852-11-4 | -- |
| Steel, 316 stainless | HP-032-0-S3852-01-1 | HP-032-0-S3852-01-2 | HP-032-0-S3852-01-4 | -- |
| Steel, electroless nickel pl. | HP-032-0-S3852-13-1 | HP-032-0-S3852-13-2 | HP-032-0-S3852-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Safety locking ring | -SI |
| Heavy-duty ring valves | -RV |
| Ring grips | -GG |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
M52 x 2 38mm tube OD (Heavy), Self-sealing Nipple
Partial Part Number: HP-032-2-S3852-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Steel, hardened, oil burnished | HP-032-2-S3852-12-1 | HP-032-2-S3852-12-2 | HP-032-2-S3852-12-4 | -- |
| Steel, zinc plated | HP-032-2-S3852-11-1 | HP-032-2-S3852-11-2 | HP-032-2-S3852-11-4 | -- |
| Steel, 316 stainless | HP-032-2-S3852-01-1 | HP-032-2-S3852-01-2 | HP-032-2-S3852-01-4 | -- |
| Steel, stainless, hardened | HP-032-2-S3852-W1-1 | HP-032-2-S3852-W1-2 | HP-032-2-S3852-W1-4 | -- |
| Steel, electroless nickel pl. | HP-032-2-S3852-13-1 | HP-032-2-S3852-13-2 | HP-032-2-S3852-13-4 | -- |
| Standard materials in bold. Other materials & seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
| Heavy-duty ring valves | -RV |
Notes
- Coupling without valves (-OV) can only be connected to a nipple without valves.
- Ring valves are not compatible with standard valves.
Contact one of our sales representatives today
to inquire about a quote from Maxbar | Walther Precision USA
or call us today at (832) 327-0534
Maxbar, Inc.
Products & Services
