KL-030
Need A Quote?Coupling Information

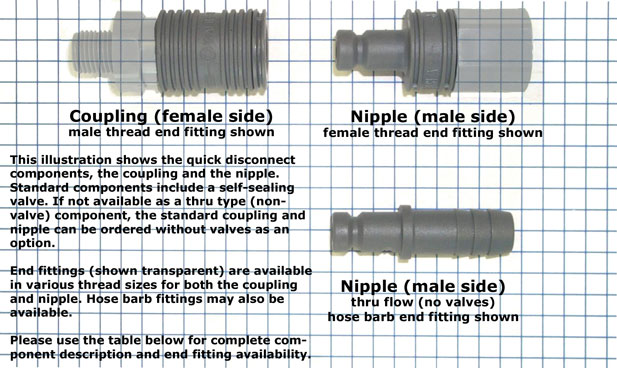

There are three basic types of KL-030 coupling. Part numbers for each are listed below.
| Valve arrangement | The Coupling (Female side) | The Nipple (Male side) |
|---|---|---|
| Standard (with valves) | KL-030-0-... | KL-030-2-... |
| No valves (thru type) | KL-030-4-.. | KL-030-1-... |
End Fittings - Partial Part Number
(Refer to Part Number System)| BSPP & NPT | ||||
|---|---|---|---|---|
| End fitting | Self-sealing Coupling | Thru Coupling | Self-sealing Nipple | Thru Nipple |
| BSPP(F) 1-1/2" NPT (F)* | KL-030-0-WR548-.. | KL-030-4-WR548-.. | KL-030-2-WR548-.. | KL-030-1-WR548-.. |
| BSPP(F) 2" NPT (F)* | KL-030-0-WR560-.. | -- | KL-030-2-WR560-.. | -- |
KL-030 Couplings & nipples are marked "30331".
*Requires an additional seal. Call for details.
Accessories
| Hose Barb adapters, 1-1/2" BSPP(M) by: | |
|---|---|
| Hose Barb 1" (25mm) | ANO-0SL-025-WR048-40 |
| Hose Barb 1-1/4" (32mm) | ANO-0SL-032-WR048-40 |
| Hose Barb 1-1/2" (38mm) | ANO-0SL-038-XX069-40 |
| Hose Barb 1-5/8" (42mm) | ANO-0SL-042-XX004-40 |
| Reducing Bushings, 1-1/2" BSPP(M) by: | |
| BSPP(F) 1" | ANO-0XX-008-WR533-40 |

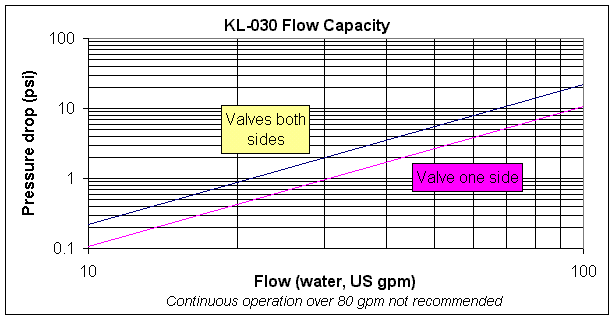

Flow Capacity
1-1/2" BSPP(F) NPT(F), Self-sealing Coupling
Partial Part Number: KL-030-0-WR548-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Polyacetal (Delrin), gray | KL-030-0-WR548-40-1 | KL-030-0-WR548-40-2 | KL-030-0-WR548-40-4 |  |
| Standard materials in bold. Other seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
Notes
- Requires additional O-ring, Part No. XX to be placed at the bottom of the end fitting threads to work as NPT. Order o-ring separately.
1-1/2" BSPP(F) NPT(F), Thru type Coupling
Partial Part Number: KL-030-4-WR548-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Polyacetal (Delrin), gray | KL-030-4-WR548-40-1 | KL-030-4-WR548-40-2 | KL-030-4-WR548-40-4 | -- |
| Standard materials in bold. Other seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
Notes
- Requires additional O-ring, Part No. XX to be placed at the bottom of the end fitting threads to work as NPT. Order o-ring separately.
1-1/2" BSPP(F) NPT(F), Self-sealing Nipple
Partial Part Number: KL-030-2-WR548-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||

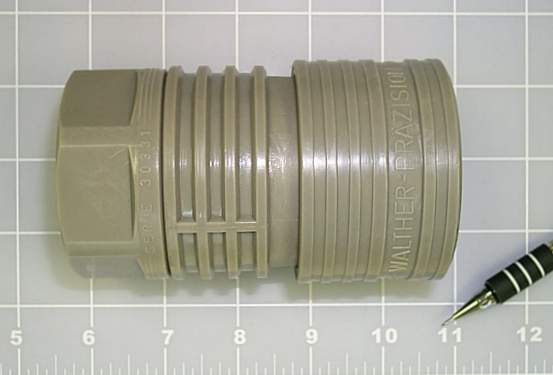

| Polyacetal (Delrin), gray | KL-030-2-WR548-40-1 | KL-030-2-WR548-40-2 | KL-030-2-WR548-40-4 |  |
| Standard materials in bold. Other seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
Notes
- Requires additional O-ring, Part No. XX to be placed at the bottom of the end fitting threads to work as NPT. Order o-ring separately.
1-1/2" BSPP(F) NPT(F), Thru type Nipple
Partial Part Number: KL-030-1-WR548-..
Find complete part numbers below:
| Material | Part Number | Click to Enlarge |
|---|---|---|

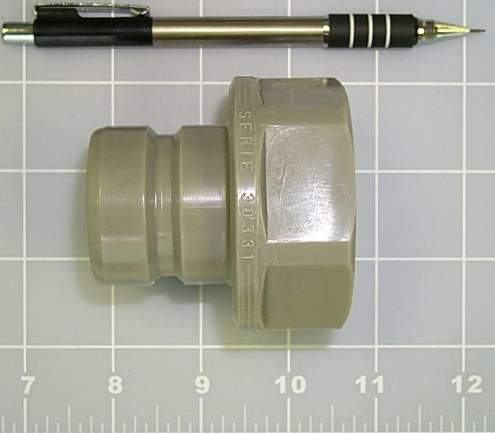

| Polyacetal (Delrin), gray | KL-030-1-WR548-40 |  |
| Standard materials in bold. | ||
Notes
- Requires additional O-ring, Part No. XX to be placed at the bottom of the end fitting threads to work as NPT. Order o-ring separately.
1-1/2" BSPP(F) NPT(F), Self-sealing Coupling
Partial Part Number: KL-030-0-WR560-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Polyacetal (Delrin), gray | KL-030-0-WR560-40-1 | KL-030-0-WR560-40-2 | KL-030-0-WR560-40-4 | -- |
| Standard materials in bold. Other seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
Notes
- Requires additional O-ring, Part No. XX to be placed at the bottom of the end fitting threads to work as NPT. Order o-ring separately.
1-1/2" BSPP(F) NPT(F), Self-sealing Nipple
Partial Part Number: KL-030-2-WR560-..-.
Find complete part numbers below:
| Material | Seal Material | Click to Enlarge | ||
|---|---|---|---|---|
| NBR (nitrile) | FPM (Viton) | EPDM | ||
| Polyacetal (Delrin), gray | KL-030-2-WR560-40-1 | KL-030-2-WR560-40-2 | KL-030-2-WR560-40-4 | -- |
| Standard materials in bold. Other seals available. | ||||
Find available options below:
| Option | Add to end of part number |
|---|---|
| No valves (omit valves) | -OV |
Notes
- Requires additional O-ring, Part No. XX to be placed at the bottom of the end fitting threads to work as NPT. Order o-ring separately.
