LP-012

Coupling Information

There are three basic types of LP-012 coupling. Part numbers for each are listed below.

Valve arrangement	The Coupling (Female side)	The Nipple (Male side)
Standard (with valves)	LP-012-0-...	LP-012-2-...
No valves (thru type)	Use LP-012-0-... with -OV option	LP-012-1-...

End Fittings

(Refer to Part Number System)

BSPP (British Standard Pipe, Parallel)
End fitting	Self-sealing Coupling	Self-sealing Nipple	Thru type Nipple
BSPP(M) 3/8"	LP-012-0-WR017-..	LP-012-2-WR017-..	LP-012-1-WR017-..
BSPP(M) 1/2"	LP-012-0-WR021-..	LP-012-2-WR021-..	LP-012-1-WR021-..
BSPP(M) 3/4"	LP-012-0-WR026-..	LP-012-2-WR026-..	LP-012-1-WR026-..
BSPP(M) 1"	LP-012-0-WR033-..	LP-012-2-WR033-..	--

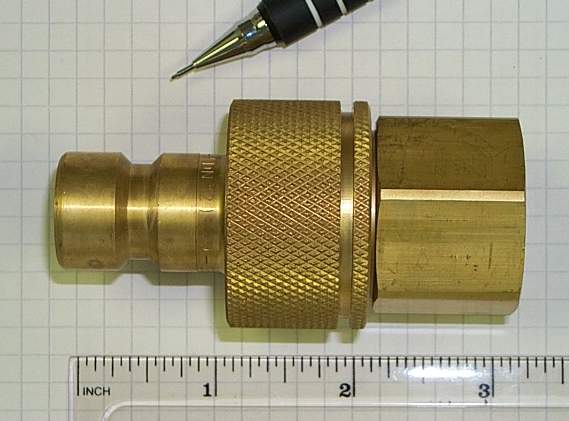

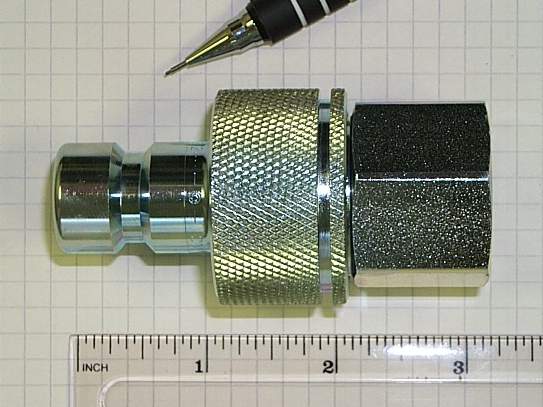

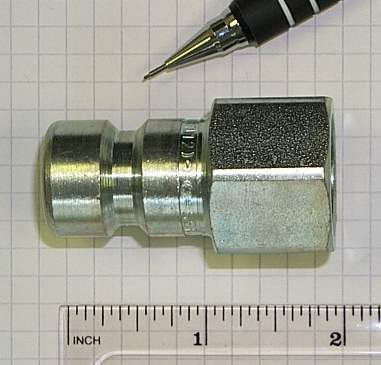

BSPP(F) 1/2"	LP-012-0-WR521-..	LP-012-2-WR521-..	LP-012-1-WR521-..

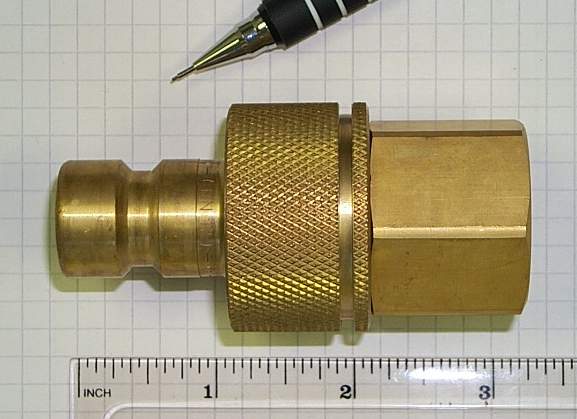

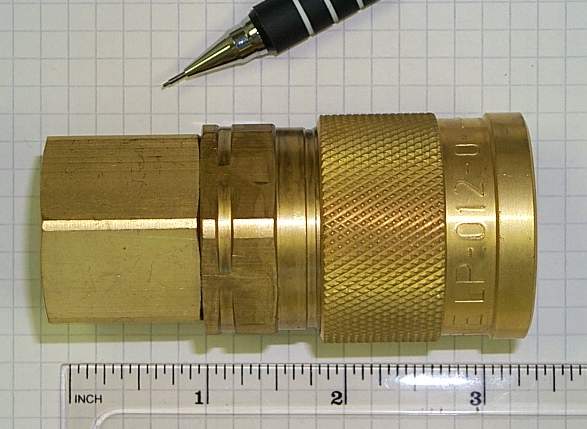

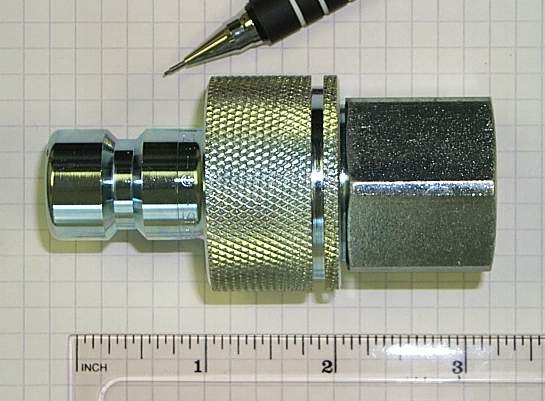

BSPP(F) 3/4"	LP-012-0-WR526-..	LP-012-2-WR526-..	LP-012-1-WR526-..
NPT (National Pipe, Tapered)
End fitting	Self-sealing Coupling	Self-sealing Nipple	Thru type Nipple
NPT(M) 3/8"	--	--	LP-012-1-NP017-..

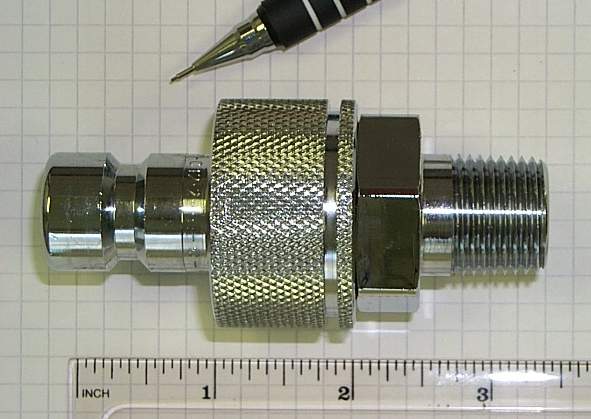

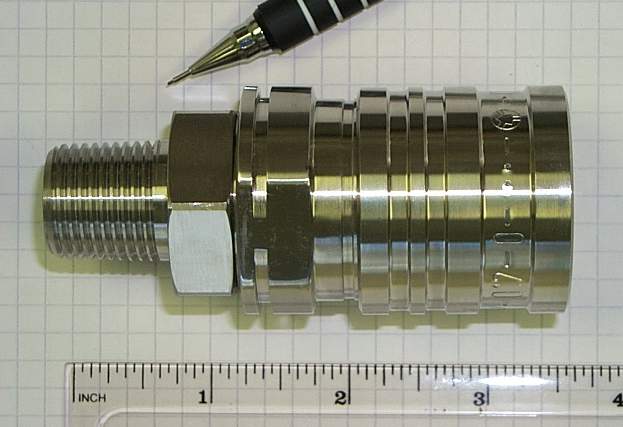

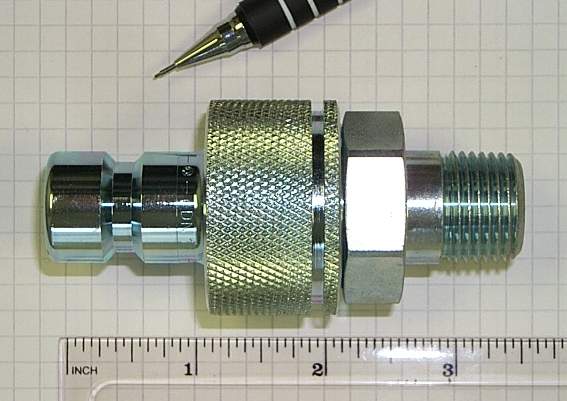

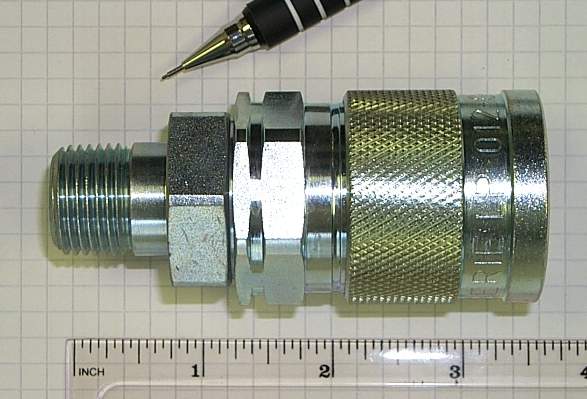

NPT(M) 1/2"	LP-012-0-NP021-..	LP-012-2-NP021-..	LP-012-1-NP021-..
NPT(M) 3/4"	LP-012-0-NP026-..	LP-012-2-NP026-..	LP-012-1-NP026-..
NPT(M) 1"	LP-012-0-NP033-..	LP-012-2-NP033-..	--

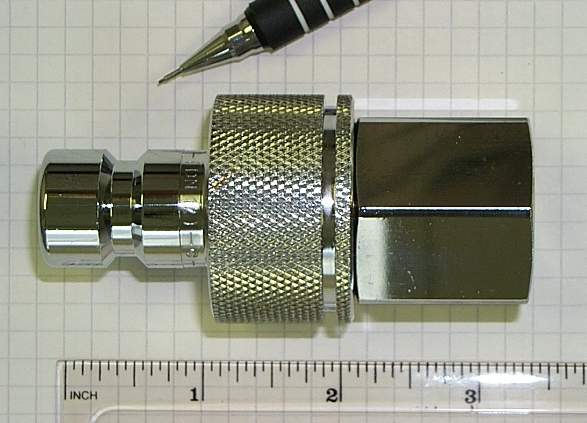

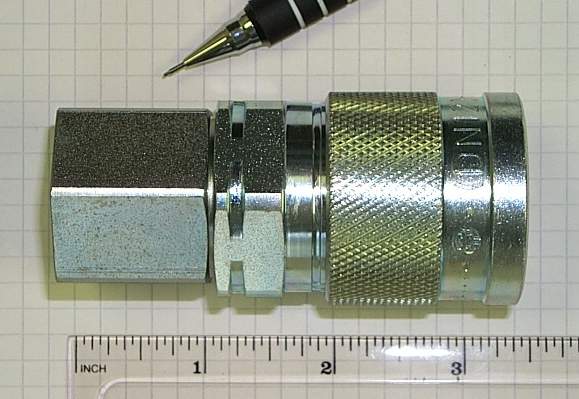

NTP(F) 1/2"	LP-012-0-NP521-..	LP-012-2-NP521-..	LP-012-1-NP521-..

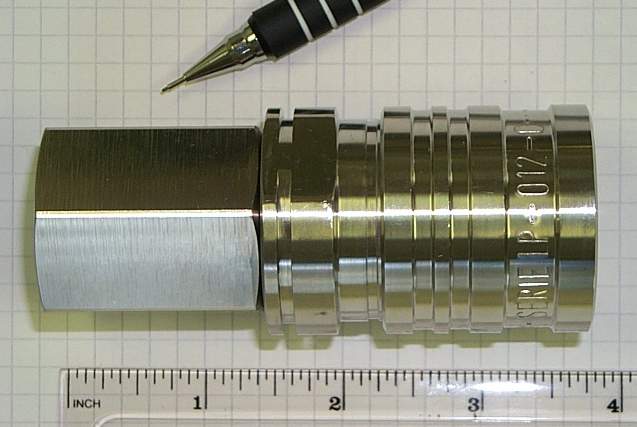

NPT(F) 3/4"	LP-012-0-NP526-..	LP-012-2-NP526-..	LP-012-1-NP526-..
BSPP(M) with 60° Female cone (usually to fit hose ends with BSP swivel nuts)
End fitting	Self-sealing Coupling	Self-sealing Nipple	Thru type Nipple

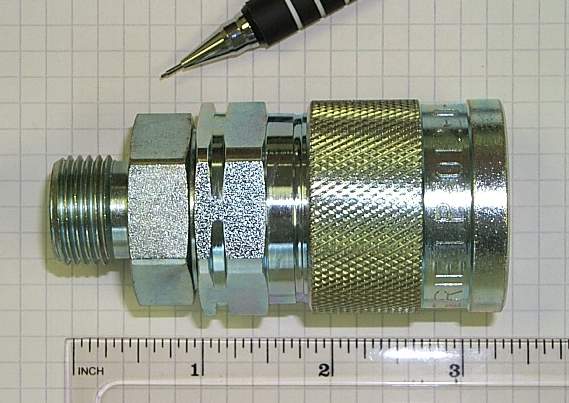

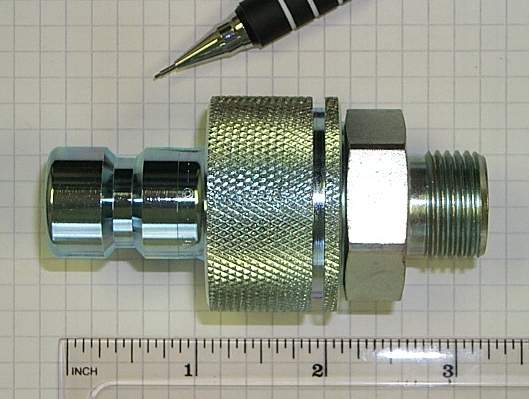

BSPP(M) 1/2" w/60° F cone	LP-012-0-VR021-...	LP-012-2-VR021-..	--

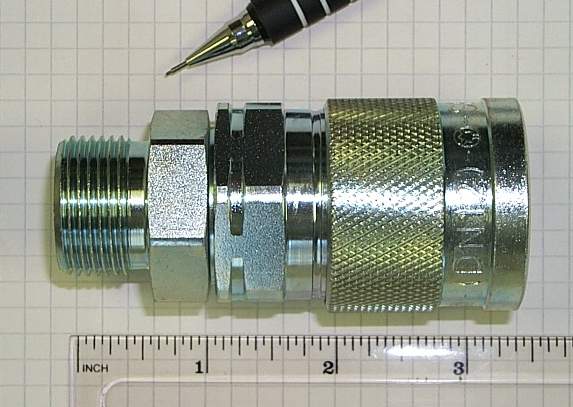

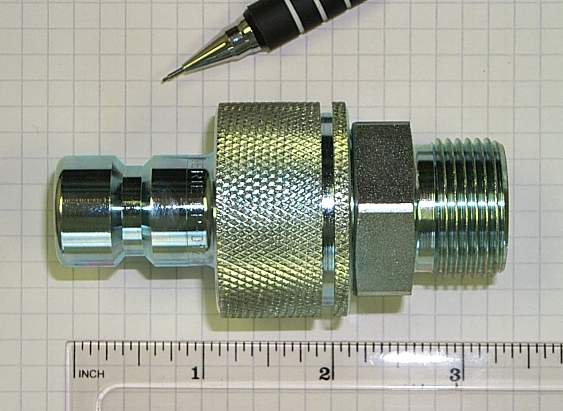

BSPP(M) 3/4" w/60° F cone	LP-012-0-VR026-..	LP-012-2-VR026-..	--
DIN 7631, M14 x 1.5mm with 60° Female cone (usually to fit hoses with metric swivel nuts)
End fitting	Self-sealing Coupling	Self-sealing Nipple	Thru type Nipple
M18 x 1.5	LP-012-0-D1018-..	LP-012-2-D1018-..	--

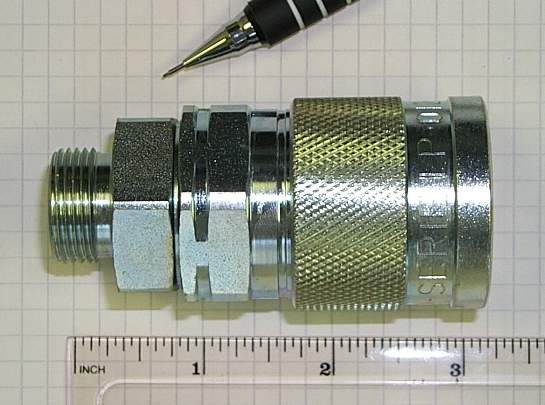

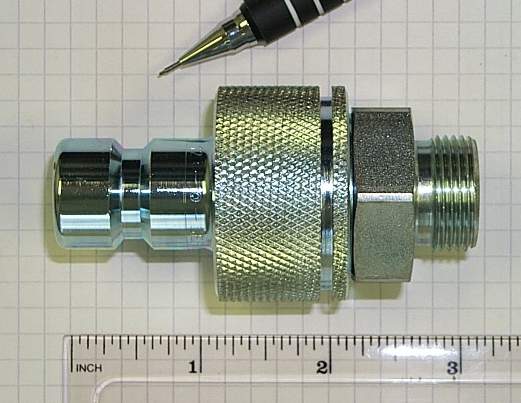

M22 x 1.5	LP-012-0-D1222-..	LP-012-2-D1222-..	--
M22 x 1.5 bulkhead mount	LP-012-0-DV015-..	LP-012-2-DV015-..	--
EO (Ermeto) to fit tube & ferrule

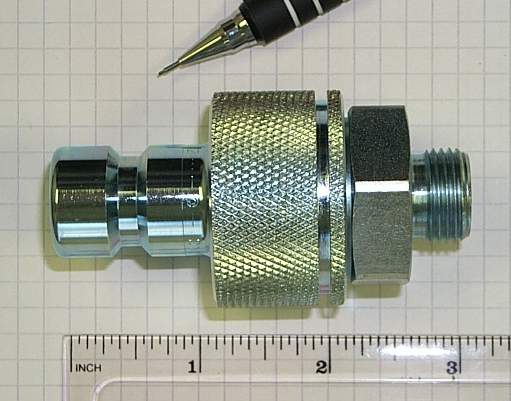

M18 x 1.5 12mm OD tube (Light)	LP-012-0-L1218-..	LP-012-2-L1218-..	--

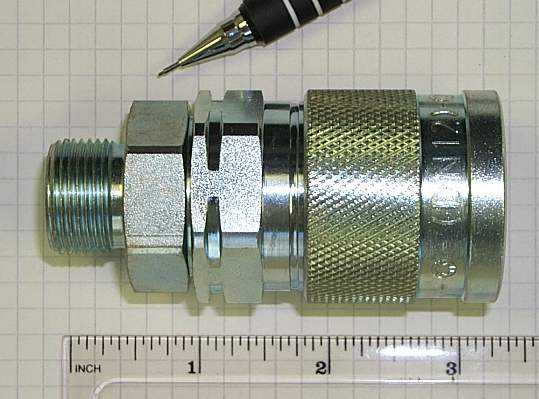

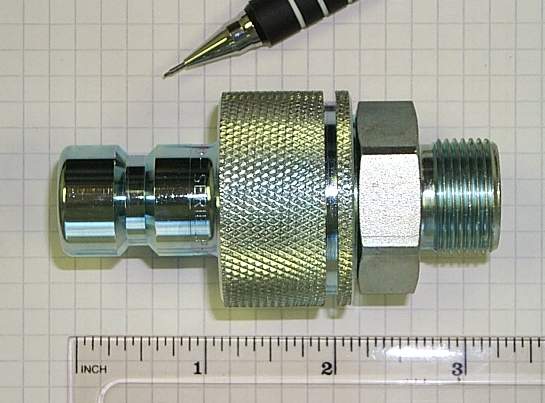

M22 x 1.5 15mm tube OD (Light)	LP-012-0-L1522-..	LP-012-2-L1522-..	--

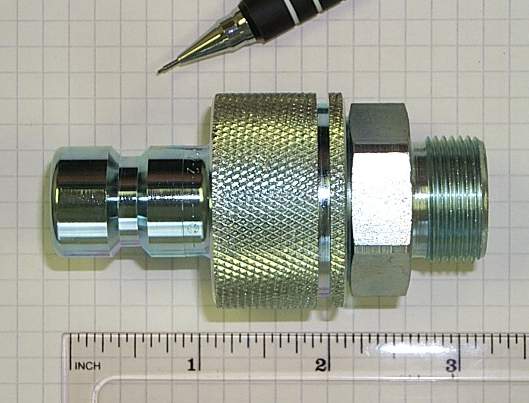

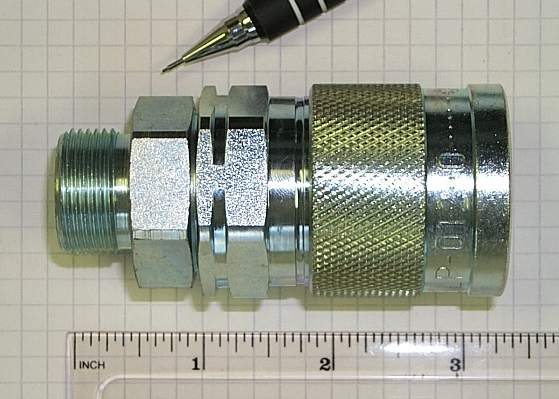

M24 x 1.5 16mm OD tube (Heavy)	LP-012-0-S1624-..	LP-012-2-S1624-..	--
Hose barbs

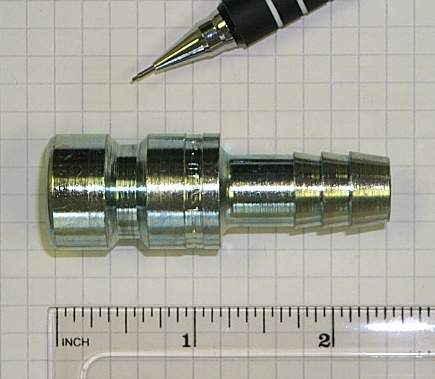

Hose Barb 1/2" (13mm)	--	--	LP-012-1-SL013-..

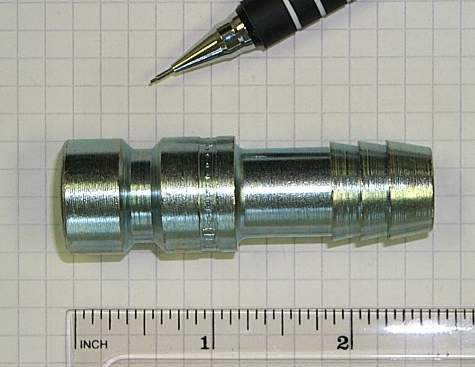

Hose Barb 5/8" (16mm)	LP-012-0-SL016-..	LP-012-2-SL016-..	LP-012-1-SL016-..

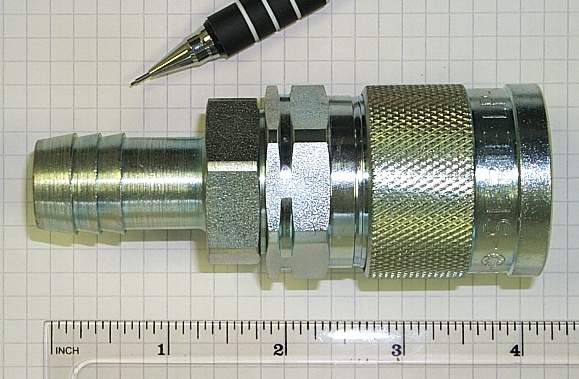

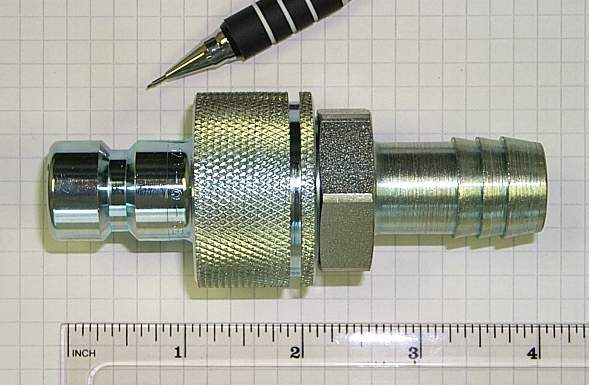

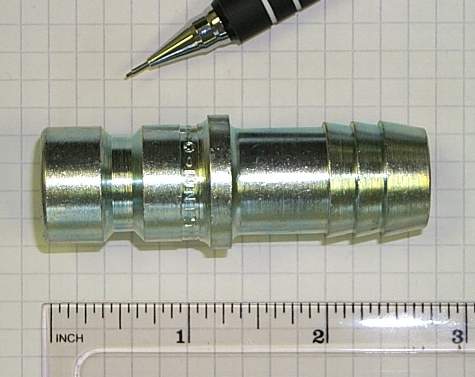

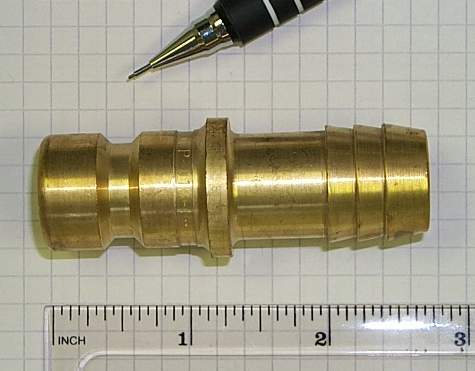

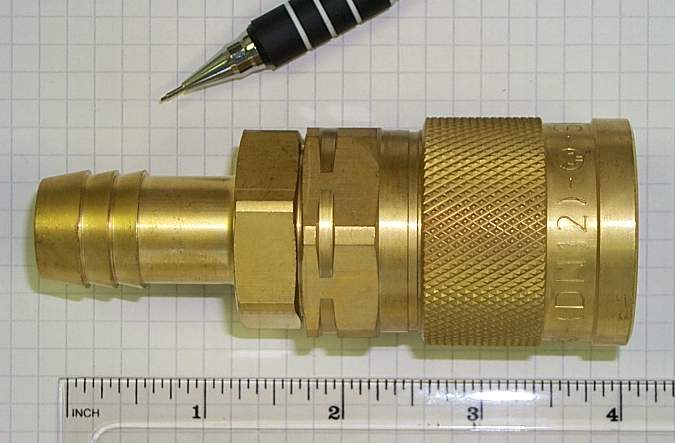

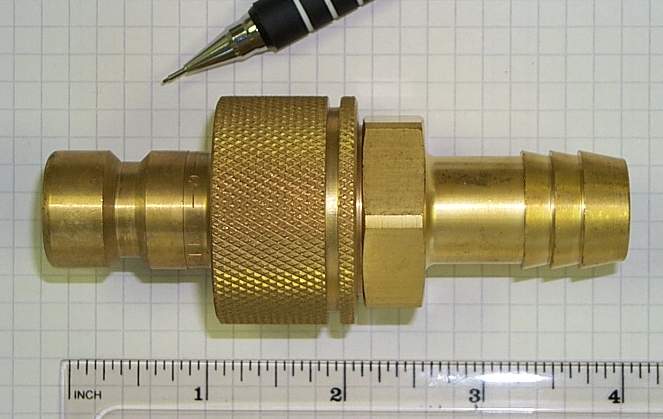

Hose Barb 3/4" (19mm)	LP-012-0-SL019-..	LP-012-2-SL019-..	LP-012-1-SL019-..

Dust Caps & Dust Plugs - Part numbers for Series LP-012

Material	Plugs for Couplings (Female side)	Caps for Adapters (Male side)
Non-pressure retaining1	LP-012-6-74-KU	LP-012-5-74-KU
Pressure retaining2	LP-012-6-11	LP-012-5-11-1 (Nitrile)LP-012-5-11-2 (Viton)LP-012-5-11-4 (EPDM)

Material

Plugs for Couplings (Female side)

Caps for Adapters (Male side)

Non-pressure retaining1

LP-012-6-74-KU

LP-012-5-74-KU

Pressure retaining2

LP-012-6-11

LP-012-5-11-1 (Nitrile)LP-012-5-11-2 (Viton)LP-012-5-11-4 (EPDM)

* Plugs and caps are available for both self-sealing & thru-type couplings and adapters.1. Soft PVC (grey)2. Zinc-plated steel body, nickel-plated steel chain and retaining ring

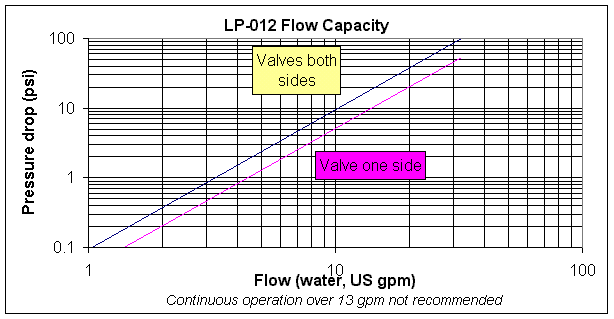

Flow Capacity

3/8" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-012-0-WR017-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-WR017-11-1	LP-012-0-WR017-11-2	LP-012-0-WR017-11-4	--
Brass, passivated	LP-012-0-WR017-21-1	LP-012-0-WR017-21-2	LP-012-0-WR017-21-4	--
Brass, chrome plated	LP-012-0-WR017-22-1	LP-012-0-WR017-22-2	LP-012-0-WR017-22-4	--
Steel, 316 stainless	LP-012-0-WR017-01-1	LP-012-0-WR017-01-2	LP-012-0-WR017-01-4	--
Steel, electroless nickel pl.	LP-012-0-WR017-13-1	LP-012-0-WR017-13-2	LP-012-0-WR017-13-4	--
Brass, electroless nickel pl.	LP-012-0-WR017-24-1	LP-012-0-WR017-24-2	LP-012-0-WR017-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/8" BSPP(M), Self-sealing Nipple

Partial Part Number: LP-012-2-WR017-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-WR017-11-1	LP-012-2-WR017-11-2	LP-012-2-WR017-11-4	--
Brass, passivated	LP-012-2-WR017-21-1	LP-012-2-WR017-21-2	LP-012-2-WR017-21-4	--
Brass, chrome plated	LP-012-2-WR017-22-1	LP-012-2-WR017-22-2	LP-012-2-WR017-22-4	--
Steel, 316 stainless	LP-012-2-WR017-01-1	LP-012-2-WR017-01-2	LP-012-2-WR017-01-4	--
Steel, electroless nickel pl.	LP-012-2-WR017-13-1	LP-012-2-WR017-13-2	LP-012-2-WR017-13-4	--
Brass, electroless nickel pl.	LP-012-2-WR017-24-1	LP-012-2-WR017-24-2	LP-012-2-WR017-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

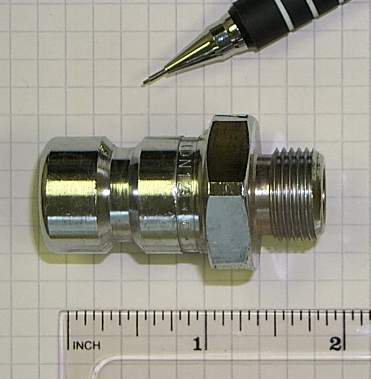

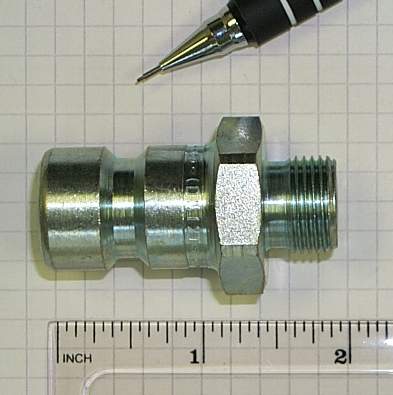

1/4" BSPP(M), Thru type Nipple

Partial Part Number: LP-012-1-WR017-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-WR017-11
Brass, passivated	LP-012-1-WR017-21	--
Brass, chrome plated	LP-012-1-WR017-22
Steel, 316 stainless	LP-012-1-WR017-01	--
Steel, electroless nickel pl.	LP-012-1-WR017-13	--
Brass, electroless nickel pl.	LP-012-1-WR017-24	--
Standard materials in bold. Other materials available.

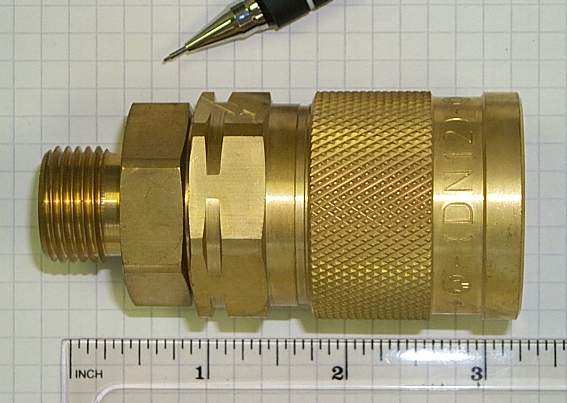

3/8" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-012-0-WR021-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge

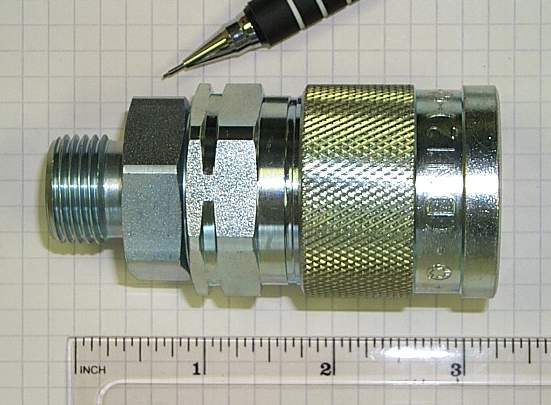

Steel, zinc plated	LP-012-0-WR021-11-1	LP-012-0-WR021-11-2	LP-012-0-WR021-11-4
Brass, passivated	LP-012-0-WR021-21-1	LP-012-0-WR021-21-2	LP-012-0-WR021-21-4
Brass, chrome plated	LP-012-0-WR021-22-1	LP-012-0-WR021-22-2	LP-012-0-WR021-22-4	--
Steel, 316 stainless	LP-012-0-WR021-01-1	LP-012-0-WR021-01-2	LP-012-0-WR021-01-4	--
Steel, electroless nickel pl.	LP-012-0-WR021-13-1	LP-012-0-WR021-13-2	LP-012-0-WR021-13-4	--
Brass, electroless nickel pl.	LP-012-0-WR021-24-1	LP-012-0-WR021-24-2	LP-012-0-WR021-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

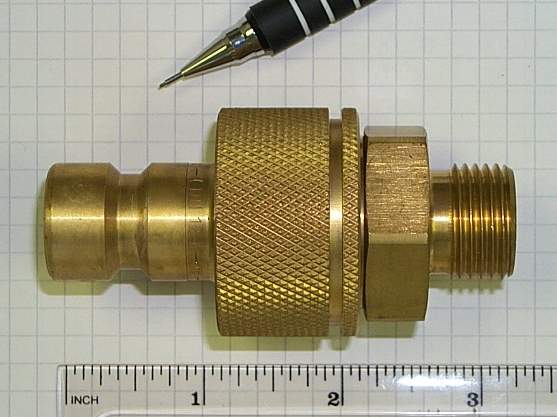

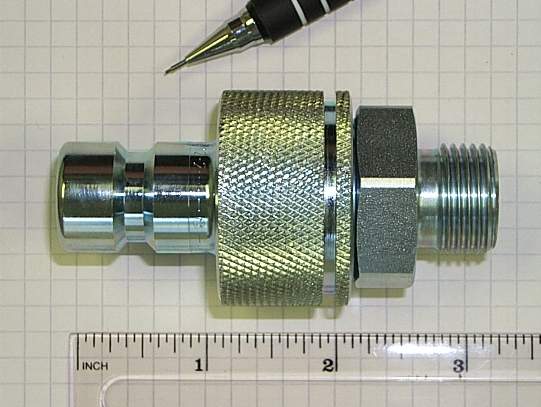

3/8" BSPP(M), Self-sealing Nipple

Partial Part Number: LP-012-2-WR021-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-WR021-11-1	LP-012-2-WR021-11-2	LP-012-2-WR021-11-4
Brass, passivated	LP-012-2-WR021-21-1	LP-012-2-WR021-21-2	LP-012-2-WR021-21-4
Brass, chrome plated	LP-012-2-WR021-22-1	LP-012-2-WR021-22-2	LP-012-2-WR021-22-4	--
Steel, 316 stainless	LP-012-2-WR021-01-1	LP-012-2-WR021-01-2	LP-012-2-WR021-01-4	--
Steel, electroless nickel pl.	LP-012-2-WR021-13-1	LP-012-2-WR021-13-2	LP-012-2-WR021-13-4	--
Brass, electroless nickel pl.	LP-012-2-WR021-24-1	LP-012-2-WR021-24-2	LP-012-2-WR021-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1/4" BSPP(M), Thru type Nipple

Partial Part Number: LP-012-1-WR021-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge

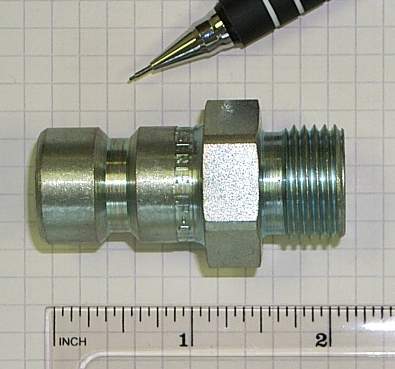

Steel, zinc plated	LP-012-1-WR021-11
Brass, passivated	LP-012-1-WR021-21	--
Brass, chrome plated	LP-012-1-WR021-22	--
Steel, 316 stainless	LP-012-1-WR021-01	--
Steel, electroless nickel pl.	LP-012-1-WR021-13	--
Brass, electroless nickel pl.	LP-012-1-WR021-24	--
Standard materials in bold. Other materials available.

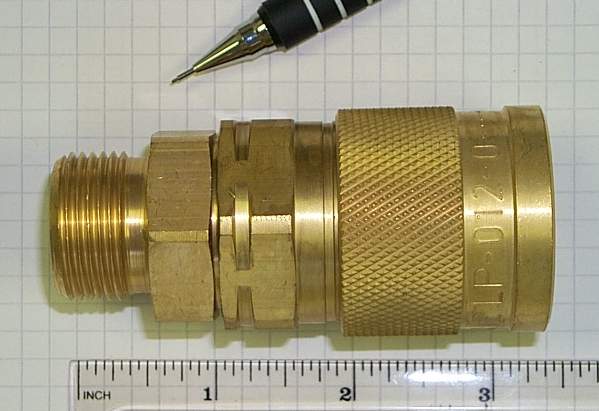

3/8" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-012-0-WR026-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge

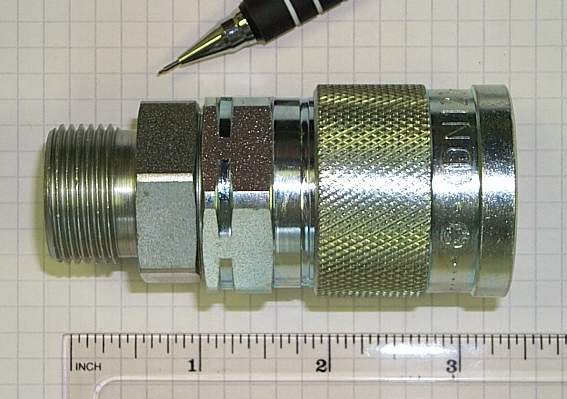

Steel, zinc plated	LP-012-0-WR026-11-1	LP-012-0-WR026-11-2	LP-012-0-WR026-11-4
Brass, passivated	LP-012-0-WR026-21-1	LP-012-0-WR026-21-2	LP-012-0-WR026-21-4
Brass, chrome plated	LP-012-0-WR026-22-1	LP-012-0-WR026-22-2	LP-012-0-WR026-22-4	--
Steel, 316 stainless	LP-012-0-WR026-01-1	LP-012-0-WR026-01-2	LP-012-0-WR026-01-4	--
Steel, electroless nickel pl.	LP-012-0-WR026-13-1	LP-012-0-WR026-13-2	LP-012-0-WR026-13-4	--
Brass, electroless nickel pl.	LP-012-0-WR026-24-1	LP-012-0-WR026-24-2	LP-012-0-WR026-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/8" BSPP(M), Self-sealing Nipple

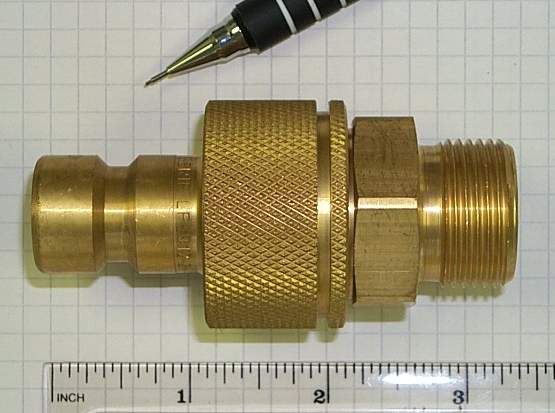

Partial Part Number: LP-012-2-WR026-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-WR026-11-1	LP-012-2-WR026-11-2	LP-012-2-WR026-11-4
Brass, passivated	LP-012-2-WR026-21-1	LP-012-2-WR026-21-2	LP-012-2-WR026-21-4
Brass, chrome plated	LP-012-2-WR026-22-1	LP-012-2-WR026-22-2	LP-012-2-WR026-22-4	--
Steel, 316 stainless	LP-012-2-WR026-01-1	LP-012-2-WR026-01-2	LP-012-2-WR026-01-4	--
Steel, electroless nickel pl.	LP-012-2-WR026-13-1	LP-012-2-WR026-13-2	LP-012-2-WR026-13-4	--
Brass, electroless nickel pl.	LP-012-2-WR026-24-1	LP-012-2-WR026-24-2	LP-012-2-WR026-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

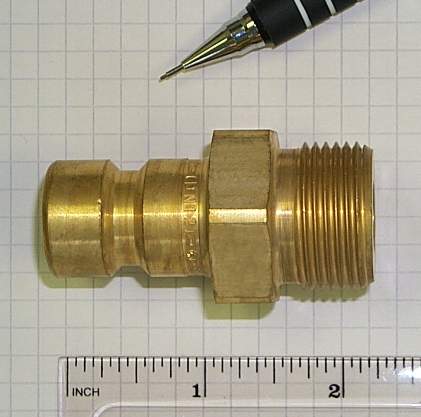

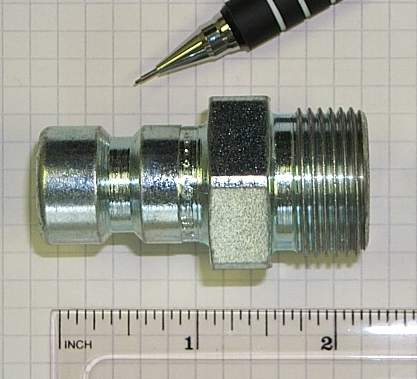

3/4" BSPP(M), Thru type Nipple

Partial Part Number: LP-012-1-WR026-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-WR026-11
Brass, passivated	LP-012-1-WR026-21
Brass, chrome plated	LP-012-1-WR026-22	--
Steel, 316 stainless	LP-012-1-WR026-01	--
Steel, electroless nickel pl.	LP-012-1-WR026-13	--
Brass, electroless nickel pl.	LP-012-1-WR026-24	--
Standard materials in bold. Other materials available.

1" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-012-0-WR033-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-WR033-11-1	LP-012-0-WR033-11-2	LP-012-0-WR033-11-4	--
Brass, passivated	LP-012-0-WR033-21-1	LP-012-0-WR033-21-2	LP-012-0-WR033-21-4	--
Brass, chrome plated	LP-012-0-WR033-22-1	LP-012-0-WR033-22-2	LP-012-0-WR033-22-4	--
Steel, 316 stainless	LP-012-0-WR033-01-1	LP-012-0-WR033-01-2	LP-012-0-WR033-01-4	--
Steel, electroless nickel pl.	LP-012-0-WR033-13-1	LP-012-0-WR033-13-2	LP-012-0-WR033-13-4	--
Brass, electroless nickel pl.	LP-012-0-WR033-24-1	LP-012-0-WR033-24-2	LP-012-0-WR033-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1" BSPP(M), Self-sealing Nipple

Partial Part Number: LP-012-2-WR033-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-WR033-11-1	LP-012-2-WR033-11-2	LP-012-2-WR033-11-4	--
Brass, passivated	LP-012-2-WR033-21-1	LP-012-2-WR033-21-2	LP-012-2-WR033-21-4	--
Brass, chrome plated	LP-012-2-WR033-22-1	LP-012-2-WR033-22-2	LP-012-2-WR033-22-4	--
Steel, 316 stainless	LP-012-2-WR033-01-1	LP-012-2-WR033-01-2	LP-012-2-WR033-01-4	--
Steel, electroless nickel pl.	LP-012-2-WR033-13-1	LP-012-2-WR033-13-2	LP-012-2-WR033-13-4	--
Brass, electroless nickel pl.	LP-012-2-WR033-24-1	LP-012-2-WR033-24-2	LP-012-2-WR033-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

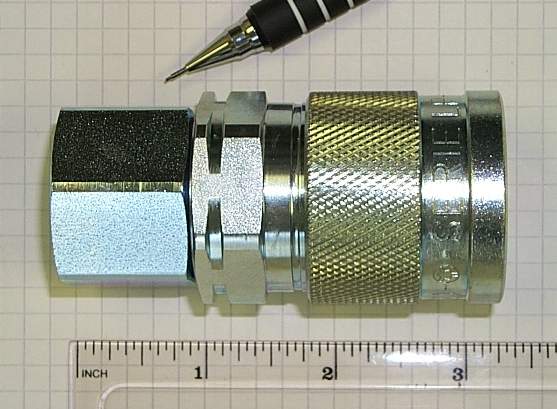

1/2" BSPP(F), Self-sealing Coupling

Partial Part Number: LP-012-0-WR521-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-WR521-11-1	LP-012-0-WR521-11-2	LP-012-0-WR521-11-4
Brass, passivated	LP-012-0-WR521-21-1	LP-012-0-WR521-21-2	LP-012-0-WR521-21-4
Brass, chrome plated	LP-012-0-WR521-22-1	LP-012-0-WR521-22-2	LP-012-0-WR521-22-4	--
Steel, 316 stainless	LP-012-0-WR521-01-1	LP-012-0-WR521-01-2	LP-012-0-WR521-01-4	--
Steel, electroless nickel pl.	LP-012-0-WR521-13-1	LP-012-0-WR521-13-2	LP-012-0-WR521-13-4	--
Brass, electroless nickel pl.	LP-012-0-WR521-24-1	LP-012-0-WR521-24-2	LP-012-0-WR521-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1/2" BSPP(F), Self-sealing Nipple

Partial Part Number: LP-012-2-WR521-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-WR521-11-1	LP-012-2-WR521-11-2	LP-012-2-WR521-11-4
Brass, passivated	LP-012-2-WR521-21-1	LP-012-2-WR521-21-2	LP-012-2-WR521-21-4
Brass, chrome plated	LP-012-2-WR521-22-1	LP-012-2-WR521-22-2	LP-012-2-WR521-22-4	--
Steel, 316 stainless	LP-012-2-WR521-01-1	LP-012-2-WR521-01-2	LP-012-2-WR521-01-4	--
Steel, electroless nickel pl.	LP-012-2-WR521-13-1	LP-012-2-WR521-13-2	LP-012-2-WR521-13-4	--
Brass, electroless nickel pl.	LP-012-2-WR521-24-1	LP-012-2-WR521-24-2	LP-012-2-WR521-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1/2" BSPP(F), Thru type Nipple

Partial Part Number: LP-012-1-WR521-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-WR521-11
Brass, passivated	LP-012-1-WR521-21	--
Brass, chrome plated	LP-012-1-WR521-22	--
Steel, 316 stainless	LP-012-1-WR521-01	--
Steel, electroless nickel pl.	LP-012-1-WR521-13	--
Brass, electroless nickel pl.	LP-012-1-WR521-24	--
Standard materials in bold. Other materials available.

3/4" BSPP(F), Self-sealing Coupling

Partial Part Number: LP-012-0-WR526-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-WR526-11-1	LP-012-0-WR526-11-2	LP-012-0-WR526-11-4
Brass, passivated	LP-012-0-WR526-21-1	LP-012-0-WR526-21-2	LP-012-0-WR526-21-4
Brass, chrome plated	LP-012-0-WR526-22-1	LP-012-0-WR526-22-2	LP-012-0-WR526-22-4	--
Steel, 316 stainless	LP-012-0-WR526-01-1	LP-012-0-WR526-01-2	LP-012-0-WR526-01-4	--
Steel, electroless nickel pl.	LP-012-0-WR526-13-1	LP-012-0-WR526-13-2	LP-012-0-WR526-13-4	--
Brass, electroless nickel pl.	LP-012-0-WR526-24-1	LP-012-0-WR526-24-2	LP-012-0-WR526-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/4" BSPP(F), Self-sealing Nipple

Partial Part Number: LP-012-2-WR526-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-WR526-11-1	LP-012-2-WR526-11-2	LP-012-2-WR526-11-4
Brass, passivated	LP-012-2-WR526-21-1	LP-012-2-WR526-21-2	LP-012-2-WR526-21-4
Brass, chrome plated	LP-012-2-WR526-22-1	LP-012-2-WR526-22-2	LP-012-2-WR526-22-4	--
Steel, 316 stainless	LP-012-2-WR526-01-1	LP-012-2-WR526-01-2	LP-012-2-WR526-01-4	--
Steel, electroless nickel pl.	LP-012-2-WR526-13-1	LP-012-2-WR526-13-2	LP-012-2-WR526-13-4	--
Brass, electroless nickel pl.	LP-012-2-WR526-24-1	LP-012-2-WR526-24-2	LP-012-2-WR526-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/4" BSPP(F), Thru type Nipple

Partial Part Number: LP-012-1-WR526-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-WR526-11	--
Brass, passivated	LP-012-1-WR526-21
Brass, chrome plated	LP-012-1-WR526-22	--
Steel, 316 stainless	LP-012-1-WR526-01	--
Steel, electroless nickel pl.	LP-012-1-WR526-13	--
Brass, electroless nickel pl.	LP-012-1-WR526-24	--
Standard materials in bold. Other materials available.

3/8" NPT(M), Thru type Nipple

Partial Part Number: LP-012-1-NP017-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-NP017-11	--
Brass, passivated	LP-012-1-NP017-21	--
Brass, chrome plated	LP-012-1-NP017-22	--
Steel, 316 stainless	LP-012-1-NP017-01	--
Steel, electroless nickel pl.	LP-012-1-NP017-13	--
Brass, electroless nickel pl.	LP-012-1-NP017-24	--
Standard materials in bold. Other materials available.

1/2" NPT(M), Self-sealing Coupling

Partial Part Number: LP-012-0-NP021-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-NP021-11-1	LP-012-0-NP021-11-2	LP-012-0-NP021-11-4
Brass, passivated	LP-012-0-NP021-21-1	LP-012-0-NP021-21-2	LP-012-0-NP021-21-4	--
Brass, chrome plated	LP-012-0-NP021-22-1	LP-012-0-NP021-22-2	LP-012-0-NP021-22-4	--
Steel, 316 stainless	LP-012-0-NP021-01-1	LP-012-0-NP021-01-2	LP-012-0-NP021-01-4
Steel, electroless nickel pl.	LP-012-0-NP021-13-1	LP-012-0-NP021-13-2	LP-012-0-NP021-13-4	--
Brass, electroless nickel pl.	LP-012-0-NP021-24-1	LP-012-0-NP021-24-2	LP-012-0-NP021-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1/2" NPT(M), Self-sealing Nipple

Partial Part Number: LP-012-2-NP021-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-NP021-11-1	LP-012-2-NP021-11-2	LP-012-2-NP021-11-4
Brass, passivated	LP-012-2-NP021-21-1	LP-012-2-NP021-21-2	LP-012-2-NP021-21-4	--
Brass, chrome plated	LP-012-2-NP021-22-1	LP-012-2-NP021-22-2	LP-012-2-NP021-22-4
Steel, 316 stainless	LP-012-2-NP021-01-1	LP-012-2-NP021-01-2	LP-012-2-NP021-01-4	--
Steel, electroless nickel pl.	LP-012-2-NP021-13-1	LP-012-2-NP021-13-2	LP-012-2-NP021-13-4	--
Brass, electroless nickel pl.	LP-012-2-NP021-24-1	LP-012-2-NP021-24-2	LP-012-2-NP021-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1/2" NPT(M), Thru type Nipple

Partial Part Number: LP-012-1-NP021-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-NP021-11	--
Brass, passivated	LP-012-1-NP021-21	--
Brass, chrome plated	LP-012-1-NP021-22	--
Steel, 316 stainless	LP-012-1-NP021-01	--
Steel, electroless nickel pl.	LP-012-1-NP021-13	--
Brass, electroless nickel pl.	LP-012-1-NP021-24	--
Standard materials in bold. Other materials available.

3/4" NPT(M), Self-sealing Coupling

Partial Part Number: LP-012-0-NP026-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-NP026-11-1	LP-012-0-NP026-11-2	LP-012-0-NP026-11-4	--
Brass, passivated	LP-012-0-NP026-21-1	LP-012-0-NP026-21-2	LP-012-0-NP026-21-4	--
Brass, chrome plated	LP-012-0-NP026-22-1	LP-012-0-NP026-22-2	LP-012-0-NP026-22-4	--
Steel, 316 stainless	LP-012-0-NP026-01-1	LP-012-0-NP026-01-2	LP-012-0-NP026-01-4	--
Steel, electroless nickel pl.	LP-012-0-NP026-13-1	LP-012-0-NP026-13-2	LP-012-0-NP026-13-4	--
Brass, electroless nickel pl.	LP-012-0-NP026-24-1	LP-012-0-NP026-24-2	LP-012-0-NP026-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/4" NPT(M), Self-sealing Nipple

Partial Part Number: LP-012-2-NP026-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-NP026-11-1	LP-012-2-NP026-11-2	LP-012-2-NP026-11-4	--
Brass, passivated	LP-012-2-NP026-21-1	LP-012-2-NP026-21-2	LP-012-2-NP026-21-4	--
Brass, chrome plated	LP-012-2-NP026-22-1	LP-012-2-NP026-22-2	LP-012-2-NP026-22-4	--
Steel, 316 stainless	LP-012-2-NP026-01-1	LP-012-2-NP026-01-2	LP-012-2-NP026-01-4	--
Steel, electroless nickel pl.	LP-012-2-NP026-13-1	LP-012-2-NP026-13-2	LP-012-2-NP026-13-4	--
Brass, electroless nickel pl.	LP-012-2-NP026-24-1	LP-012-2-NP026-24-2	LP-012-2-NP026-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/4" NPT(M), Thru type Nipple

Partial Part Number: LP-012-1-NP026-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-NP026-11	--
Brass, passivated	LP-012-1-NP026-21	--
Brass, chrome plated	LP-012-1-NP026-22	--
Steel, 316 stainless	LP-012-1-NP026-01	--
Steel, electroless nickel pl.	LP-012-1-NP026-13	--
Brass, electroless nickel pl.	LP-012-1-NP026-24	--
Standard materials in bold. Other materials available.

1" NPT(M), Self-sealing Coupling

Partial Part Number: LP-012-0-NP033-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-NP033-11-1	LP-012-0-NP033-11-2	LP-012-0-NP033-11-4	--
Brass, passivated	LP-012-0-NP033-21-1	LP-012-0-NP033-21-2	LP-012-0-NP033-21-4	--
Brass, chrome plated	LP-012-0-NP033-22-1	LP-012-0-NP033-22-2	LP-012-0-NP033-22-4	--
Steel, 316 stainless	LP-012-0-NP033-01-1	LP-012-0-NP033-01-2	LP-012-0-NP033-01-4	--
Steel, electroless nickel pl.	LP-012-0-NP033-13-1	LP-012-0-NP033-13-2	LP-012-0-NP033-13-4	--
Brass, electroless nickel pl.	LP-012-0-NP033-24-1	LP-012-0-NP033-24-2	LP-012-0-NP033-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1" NPT(M), Self-sealing Nipple

Partial Part Number: LP-012-2-NP033-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-NP033-11-1	LP-012-2-NP033-11-2	LP-012-2-NP033-11-4	--
Brass, passivated	LP-012-2-NP033-21-1	LP-012-2-NP033-21-2	LP-012-2-NP033-21-4	--
Brass, chrome plated	LP-012-2-NP033-22-1	LP-012-2-NP033-22-2	LP-012-2-NP033-22-4	--
Steel, 316 stainless	LP-012-2-NP033-01-1	LP-012-2-NP033-01-2	LP-012-2-NP033-01-4	--
Steel, electroless nickel pl.	LP-012-2-NP033-13-1	LP-012-2-NP033-13-2	LP-012-2-NP033-13-4	--
Brass, electroless nickel pl.	LP-012-2-NP033-24-1	LP-012-2-NP033-24-2	LP-012-2-NP033-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1/2" NPT(F), Self-sealing Coupling

Partial Part Number: LP-012-0-NP521-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-NP521-11-1	LP-012-0-NP521-11-2	LP-012-0-NP521-11-4
Brass, passivated	LP-012-0-NP521-21-1	LP-012-0-NP521-21-2	LP-012-0-NP521-21-4	--
Brass, chrome plated	LP-012-0-NP521-22-1	LP-012-0-NP521-22-2	LP-012-0-NP521-22-4	--
Steel, 316 stainless	LP-012-0-NP521-01-1	LP-012-0-NP521-01-2	LP-012-0-NP521-01-4
Steel, electroless nickel pl.	LP-012-0-NP521-13-1	LP-012-0-NP521-13-2	LP-012-0-NP521-13-4	--
Brass, electroless nickel pl.	LP-012-0-NP521-24-1	LP-012-0-NP521-24-2	LP-012-0-NP521-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1/2" NPT(F), Self-sealing Nipple

Partial Part Number: LP-012-2-NP521-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-NP521-11-1	LP-012-2-NP521-11-2	LP-012-2-NP521-11-4
Brass, passivated	LP-012-2-NP521-21-1	LP-012-2-NP521-21-2	LP-012-2-NP521-21-4	--
Brass, chrome plated	LP-012-2-NP521-22-1	LP-012-2-NP521-22-2	LP-012-2-NP521-22-4
Steel, 316 stainless	LP-012-2-NP521-01-1	LP-012-2-NP521-01-2	LP-012-2-NP521-01-4	--
Steel, electroless nickel pl.	LP-012-2-NP521-13-1	LP-012-2-NP521-13-2	LP-012-2-NP521-13-4	--
Brass, electroless nickel pl.	LP-012-2-NP521-24-1	LP-012-2-NP521-24-2	LP-012-2-NP521-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1/2" NPT(F), Thru type Nipple

Partial Part Number: LP-012-1-NP521-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-NP521-11	--
Brass, passivated	LP-012-1-NP521-21	--
Brass, chrome plated	LP-012-1-NP521-22	--
Steel, 316 stainless	LP-012-1-NP521-01	--
Steel, electroless nickel pl.	LP-012-1-NP521-13	--
Brass, electroless nickel pl.	LP-012-1-NP521-24	--
Standard materials in bold. Other materials available.

3/4" NPT(F), Self-sealing Coupling

Partial Part Number: LP-012-0-NP526-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-NP526-11-1	LP-012-0-NP526-11-2	LP-012-0-NP526-11-4	--
Brass, passivated	LP-012-0-NP526-21-1	LP-012-0-NP526-21-2	LP-012-0-NP526-21-4	--
Brass, chrome plated	LP-012-0-NP526-22-1	LP-012-0-NP526-22-2	LP-012-0-NP526-22-4	--
Steel, 316 stainless	LP-012-0-NP526-01-1	LP-012-0-NP526-01-2	LP-012-0-NP526-01-4
Steel, electroless nickel pl.	LP-012-0-NP526-13-1	LP-012-0-NP526-13-2	LP-012-0-NP526-13-4	--
Brass, electroless nickel pl.	LP-012-0-NP526-24-1	LP-012-0-NP526-24-2	LP-012-0-NP526-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/4" NPT(F), Self-sealing Nipple

Partial Part Number: LP-012-2-NP526-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-NP526-11-1	LP-012-2-NP526-11-2	LP-012-2-NP526-11-4	--
Brass, passivated	LP-012-2-NP526-21-1	LP-012-2-NP526-21-2	LP-012-2-NP526-21-4	--
Brass, chrome plated	LP-012-2-NP526-22-1	LP-012-2-NP526-22-2	LP-012-2-NP526-22-4	--
Steel, 316 stainless	LP-012-2-NP526-01-1	LP-012-2-NP526-01-2	LP-012-2-NP526-01-4	--
Steel, electroless nickel pl.	LP-012-2-NP526-13-1	LP-012-2-NP526-13-2	LP-012-2-NP526-13-4	--
Brass, electroless nickel pl.	LP-012-2-NP526-24-1	LP-012-2-NP526-24-2	LP-012-2-NP526-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/4" NPT(F), Thru type Nipple

Partial Part Number: LP-012-1-NP526-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-NP526-11	--
Brass, passivated	LP-012-1-NP526-21	--
Brass, chrome plated	LP-012-1-NP526-22	--
Steel, 316 stainless	LP-012-1-NP526-01	--
Steel, electroless nickel pl.	LP-012-1-NP526-13	--
Brass, electroless nickel pl.	LP-012-1-NP526-24	--
Standard materials in bold. Other materials available.

1/2" BSPP(M) w/60° F cone, Self-sealing Coupling

Partial Part Number: LP-012-0-VR021-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-VR021-11-1	LP-012-0-VR021-11-2	LP-012-0-VR021-11-4
Steel, 316 stainless	LP-012-2-VR021-01-1	LP-012-2-VR021-01-2	LP-012-2-VR021-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1/2" BSPP(M) w/60° F cone, Self-sealing Nipple

Partial Part Number: LP-012-2-VR021-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-VR021-11-1	LP-012-2-VR021-11-2	LP-012-2-VR021-11-4
Steel, 316 stainless	LP-012-2-VR021-01-1	LP-012-2-VR021-01-2	LP-012-2-VR021-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/4" BSPP(M) w/60° F cone, Self-sealing Coupling

Partial Part Number: LP-012-0-VR026-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-VR026-11-1	LP-012-0-VR026-11-2	LP-012-0-VR026-11-4
Steel, 316 stainless	LP-012-2-VR026-01-1	LP-012-2-VR026-01-2	LP-012-2-VR026-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/4" BSPP(M) w/60° F cone, Self-sealing Nipple

Partial Part Number: LP-012-2-VR026-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-VR026-11-1	LP-012-2-VR026-11-2	LP-012-2-VR026-11-4
Steel, 316 stainless	LP-012-2-VR026-01-1	LP-012-2-VR026-01-2	LP-012-2-VR026-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M18 x 1.5 w/60° F cone, Self-sealing Coupling

Partial Part Number: LP-012-0-D1018-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-D1018-11-1	LP-012-0-D1018-11-2	LP-012-0-D1018-11-4	--
Steel, 316 stainless	LP-012-2-D1018-01-1	LP-012-2-D1018-01-2	LP-012-2-D1018-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M18 x 1.5 w/60° F cone, Self-sealing Nipple

Partial Part Number: LP-012-2-D1018-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-D1018-11-1	LP-012-2-D1018-11-2	LP-012-2-D1018-11-4	--
Steel, 316 stainless	LP-012-2-D1018-01-1	LP-012-2-D1018-01-2	LP-012-2-D1018-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M22 x 1.5 w/60° F cone, Self-sealing Coupling

Partial Part Number: LP-012-0-D1222-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-D1222-11-1	LP-012-0-D1222-11-2	LP-012-0-D1222-11-4
Steel, 316 stainless	LP-012-0-D1222-01-1	LP-012-0-D1222-01-2	LP-012-0-D1222-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M22 x 1.5 w/60° F cone, Self-sealing Nipple

Partial Part Number: LP-012-2-D1222-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-D1222-11-1	LP-012-2-D1222-11-2	LP-012-2-D1222-11-4
Steel, 316 stainless	LP-012-2-D1222-01-1	LP-012-2-D1222-01-2	LP-012-2-D1222-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M22 x 1.5w/60° F cone, bulkhead mount, Self-sealing Coupling

Partial Part Number: LP-012-0-DV015-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-DV015-11-1	LP-012-0-DV015-11-2	LP-012-0-DV015-11-4	--
Steel, 316 stainless	LP-012-0-DV015-01-1	LP-012-0-DV015-01-2	LP-012-0-DV015-01-4	--
Steel, electroless nickel pl.	LP-012-0-DV015-13-1	LP-012-0-DV015-13-2	LP-012-0-DV015-13-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M22 x 1.5 w/60° F cone, bulkhead mount, Self-sealing Nipple

Partial Part Number: LP-012-2-DV015-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-DV015-11-1	LP-012-2-DV015-11-2	LP-012-2-DV015-11-4	--
Steel, 316 stainless	LP-012-2-DV015-01-1	LP-012-2-DV015-01-2	LP-012-2-DV015-01-4	--
Steel, electroless nickel pl.	LP-012-2-DV015-13-1	LP-012-2-DV015-13-2	LP-012-2-DV015-13-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M18 x 1.5 12mm tube OD (Light), Self-sealing Coupling

Partial Part Number: LP-012-0-L1218-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-L1218-11-1	LP-012-0-L1218-11-2	LP-012-0-L1218-11-4
Steel, 316 stainless	LP-012-0-L1218-01-1	LP-012-0-L1218-01-2	LP-012-0-L1218-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M18 x 1.5 12mm tube OD (Light), Self-sealing Nipple

Partial Part Number: LP-012-2-L1218-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-L1218-11-1	LP-012-2-L1218-11-2	LP-012-2-L1218-11-4
Steel, 316 stainless	LP-012-2-L1218-01-1	LP-012-2-L1218-01-2	LP-012-2-L1218-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M22 x 1.5 15mm tube OD (Light), Self-sealing Coupling

Partial Part Number: LP-012-0-L1522-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-L1522-11-1	LP-012-0-L1522-11-2	LP-012-0-L1522-11-4
Steel, 316 stainless	LP-012-0-L1522-01-1	LP-012-0-L1522-01-2	LP-012-0-L1522-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M22 x 1.5 15mm tube OD (Light), Self-sealing Nipple

Partial Part Number: LP-012-2-L1522-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-L1522-11-1	LP-012-2-L1522-11-2	LP-012-2-L1522-11-4
Steel, 316 stainless	LP-012-2-L1522-01-1	LP-012-2-L1522-01-2	LP-012-2-L1522-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M24 x 1.5 16mm tube OD (Heavy), Self-sealing Coupling

Partial Part Number: LP-012-0-S1624-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-S1624-11-1	LP-012-0-S1624-11-2	LP-012-0-S1624-11-4
Steel, 316 stainless	LP-012-0-S1624-01-1	LP-012-0-S1624-01-2	LP-012-0-S1624-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

M24 x 1.5 16mm tube OD (Heavy), Self-sealing Nipple

Partial Part Number: LP-012-2-S1624-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-S1624-11-1	LP-012-2-S1624-11-2	LP-012-2-S1624-11-4
Steel, 316 stainless	LP-012-2-S1624-01-1	LP-012-2-S1624-01-2	LP-012-2-S1624-01-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

1/2" Hose Barb (13mm), Thru type Nipple

Partial Part Number: LP-012-1-SL013-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-SL013-11
Brass, passivated	LP-012-1-SL013-21	--
Brass, chrome plated	LP-012-1-SL013-22	--
Steel, 316 stainless	LP-012-1-SL013-01	--
Steel, electroless nickel pl.	LP-012-1-SL013-13	--
Brass, electroless nickel pl.	LP-012-1-SL013-24	--
Standard materials in bold. Other materials available.

5/8" Hose Barb (16mm), Self-sealing Coupling

Partial Part Number: LP-012-0-SL016-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-SL016-11-1	LP-012-0-SL016-11-2	LP-012-0-SL016-11-4	--
Brass, passivated	LP-012-0-SL016-21-1	LP-012-0-SL016-21-2	LP-012-0-SL016-21-4	--
Brass, chrome plated	LP-012-0-SL016-22-1	LP-012-0-SL016-22-2	LP-012-0-SL016-22-4	--
Steel, 316 stainless	LP-012-0-SL016-01-1	LP-012-0-SL016-01-2	LP-012-0-SL016-01-4	--
Steel, electroless nickel pl.	LP-012-0-SL016-13-1	LP-012-0-SL016-13-2	LP-012-0-SL016-13-4	--
Brass, electroless nickel pl.	LP-012-0-SL016-24-1	LP-012-0-SL016-24-2	LP-012-0-SL016-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

5/8" Hose Barb (16mm), Self-sealing Nipple

Partial Part Number: LP-012-2-SL016-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-SL016-11-1	LP-012-2-SL016-11-2	LP-012-2-SL016-11-4	--
Brass, passivated	LP-012-2-SL016-21-1	LP-012-2-SL016-21-2	LP-012-2-SL016-21-4	--
Brass, chrome plated	LP-012-2-SL016-22-1	LP-012-2-SL016-22-2	LP-012-2-SL016-22-4	--
Steel, 316 stainless	LP-012-2-SL016-01-1	LP-012-2-SL016-01-2	LP-012-2-SL016-01-4	--
Steel, electroless nickel pl.	LP-012-2-SL016-13-1	LP-012-2-SL016-13-2	LP-012-2-SL016-13-4	--
Brass, electroless nickel pl.	LP-012-2-SL016-24-1	LP-012-2-SL016-24-2	LP-012-2-SL016-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

5/8" Hose Barb (16mm), Thru type Nipple

Partial Part Number: LP-012-1-SL016-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-SL016-11
Brass, passivated	LP-012-1-SL016-21	--
Brass, chrome plated	LP-012-1-SL016-22	--
Steel, 316 stainless	LP-012-1-SL016-01	--
Steel, electroless nickel pl.	LP-012-1-SL016-13	--
Brass, electroless nickel pl.	LP-012-1-SL016-24	--
Standard materials in bold. Other materials available.

3/4" Hose Barb (19mm), Self-sealing Coupling

Partial Part Number: LP-012-0-SL019-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-0-SL019-11-1	LP-012-0-SL019-11-2	LP-012-0-SL019-11-4
Brass, passivated	LP-012-0-SL019-21-1	LP-012-0-SL019-21-2	LP-012-0-SL019-21-4
Brass, chrome plated	LP-012-0-SL019-22-1	LP-012-0-SL019-22-2	LP-012-0-SL019-22-4	--
Steel, 316 stainless	LP-012-0-SL019-01-1	LP-012-0-SL019-01-2	LP-012-0-SL019-01-4	--
Steel, electroless nickel pl.	LP-012-0-SL019-13-1	LP-012-0-SL019-13-2	LP-012-0-SL019-13-4	--
Brass, electroless nickel pl.	LP-012-0-SL019-24-1	LP-012-0-SL019-24-2	LP-012-0-SL019-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/4" Hose Barb (19mm), Self-sealing Nipple

Partial Part Number: LP-012-2-SL019-..-.

Find complete part numbers below:

Material	Seal Material			Click to Enlarge
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge
Steel, zinc plated	LP-012-2-SL019-11-1	LP-012-2-SL019-11-2	LP-012-2-SL019-11-4
Brass, passivated	LP-012-2-SL019-21-1	LP-012-2-SL019-21-2	LP-012-2-SL019-21-4
Brass, chrome plated	LP-012-2-SL019-22-1	LP-012-2-SL019-22-2	LP-012-2-SL019-22-4	--
Steel, 316 stainless	LP-012-2-SL019-01-1	LP-012-2-SL019-01-2	LP-012-2-SL019-01-4	--
Steel, electroless nickel pl.	LP-012-2-SL019-13-1	LP-012-2-SL019-13-2	LP-012-2-SL019-13-4	--
Brass, electroless nickel pl.	LP-012-2-SL019-24-1	LP-012-2-SL019-24-2	LP-012-2-SL019-24-4	--
Standard materials in bold. Other materials & seals available.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
Safety locking ring	-SI
Sleeve pre-set for one-hand connecting	-VH

3/4" Hose Barb (19mm), Thru type Nipple

Partial Part Number: LP-012-1-SL019-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Steel, zinc plated	LP-012-1-SL019-11
Brass, passivated	LP-012-1-SL019-21
Brass, chrome plated	LP-012-1-SL019-22	--
Steel, 316 stainless	LP-012-1-SL019-01	--
Steel, electroless nickel pl.	LP-012-1-SL019-13	--
Brass, electroless nickel pl.	LP-012-1-SL019-24	--
Standard materials in bold. Other materials available.

Contact one of our sales representatives today
to inquire about a quote from Maxbar | Walther Precision USA
or call us today at (832) 327-0534

LP-012

Coupling Information

End Fittings

Dust Caps & Dust Plugs - Part numbers for Series LP-012

Flow Capacity

3/8" BSPP(M), Self-sealing Coupling

3/8" BSPP(M), Self-sealing Nipple

1/4" BSPP(M), Thru type Nipple

3/8" BSPP(M), Self-sealing Coupling

3/8" BSPP(M), Self-sealing Nipple

1/4" BSPP(M), Thru type Nipple

3/8" BSPP(M), Self-sealing Coupling

3/8" BSPP(M), Self-sealing Nipple

3/4" BSPP(M), Thru type Nipple

1" BSPP(M), Self-sealing Coupling

1" BSPP(M), Self-sealing Nipple

1/2" BSPP(F), Self-sealing Coupling

1/2" BSPP(F), Self-sealing Nipple

1/2" BSPP(F), Thru type Nipple

3/4" BSPP(F), Self-sealing Coupling

3/4" BSPP(F), Self-sealing Nipple

3/4" BSPP(F), Thru type Nipple

3/8" NPT(M), Thru type Nipple

1/2" NPT(M), Self-sealing Coupling

1/2" NPT(M), Self-sealing Nipple

1/2" NPT(M), Thru type Nipple

3/4" NPT(M), Self-sealing Coupling

3/4" NPT(M), Self-sealing Nipple

3/4" NPT(M), Thru type Nipple

1" NPT(M), Self-sealing Coupling

1" NPT(M), Self-sealing Nipple

1/2" NPT(F), Self-sealing Coupling

1/2" NPT(F), Self-sealing Nipple

1/2" NPT(F), Thru type Nipple

3/4" NPT(F), Self-sealing Coupling

3/4" NPT(F), Self-sealing Nipple

3/4" NPT(F), Thru type Nipple

1/2" BSPP(M) w/60° F cone, Self-sealing Coupling

1/2" BSPP(M) w/60° F cone, Self-sealing Nipple

3/4" BSPP(M) w/60° F cone, Self-sealing Coupling

3/4" BSPP(M) w/60° F cone, Self-sealing Nipple

M18 x 1.5 w/60° F cone, Self-sealing Coupling

M18 x 1.5 w/60° F cone, Self-sealing Nipple

M22 x 1.5 w/60° F cone, Self-sealing Coupling

M22 x 1.5 w/60° F cone, Self-sealing Nipple

M22 x 1.5w/60° F cone, bulkhead mount, Self-sealing Coupling

M22 x 1.5 w/60° F cone, bulkhead mount, Self-sealing Nipple

M18 x 1.5 12mm tube OD (Light), Self-sealing Coupling

M18 x 1.5 12mm tube OD (Light), Self-sealing Nipple

M22 x 1.5 15mm tube OD (Light), Self-sealing Coupling

M22 x 1.5 15mm tube OD (Light), Self-sealing Nipple

M24 x 1.5 16mm tube OD (Heavy), Self-sealing Coupling

M24 x 1.5 16mm tube OD (Heavy), Self-sealing Nipple

1/2" Hose Barb (13mm), Thru type Nipple

5/8" Hose Barb (16mm), Self-sealing Coupling

5/8" Hose Barb (16mm), Self-sealing Nipple

5/8" Hose Barb (16mm), Thru type Nipple

3/4" Hose Barb (19mm), Self-sealing Coupling

3/4" Hose Barb (19mm), Self-sealing Nipple

3/4" Hose Barb (19mm), Thru type Nipple

Maxbar, Inc.

Products & Services

Resources
