LP-019

Need A Quote?

Coupling Information

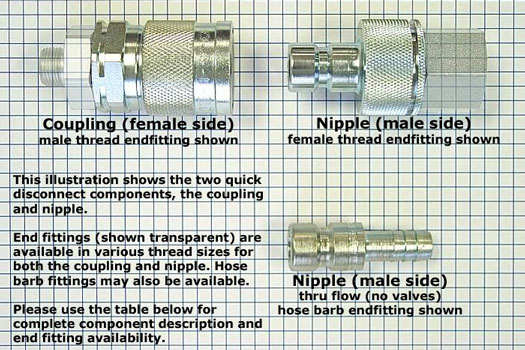

There are three basic types of LP-019 coupling. Part numbers for each are listed below.

Valve arrangement The Coupling (Female side) The Nipple (Male side)
Standard (with valves) LP-019-0-... LP-019-2-...
No valves (thru type) Use LP-019-0-... with -OV option LP-019-1-...
LP-019 Couplings

End Fittings - Partial Part Numbers

(Refer to Part Number System)
BSPP (British Standard Pipe, Parallel)
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple
BSPP(M) 1/2" -- -- LP-019-1-WR021-..
BSPP(M) 3/4" LP-019-0-WR026-.. LP-019-2-WR026-.. LP-019-1-WR026-..
BSPP(M) 1" LP-019-0-WR033-.. LP-019-2-WR033-.. LP-019-1-WR033-..
BSPP(F) 3/4" LP-019-0-WR526-.. LP-019-2-WR526-.. LP-019-1-WR526-..
BSPP(F) 1" LP-019-0-WR533-.. LP-019-2-WR533-.. LP-019-1-WR533-..
NPT (National Pipe, Tapered)
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple
NPT(M) 1/2" -- -- LP-019-1-NP021-..

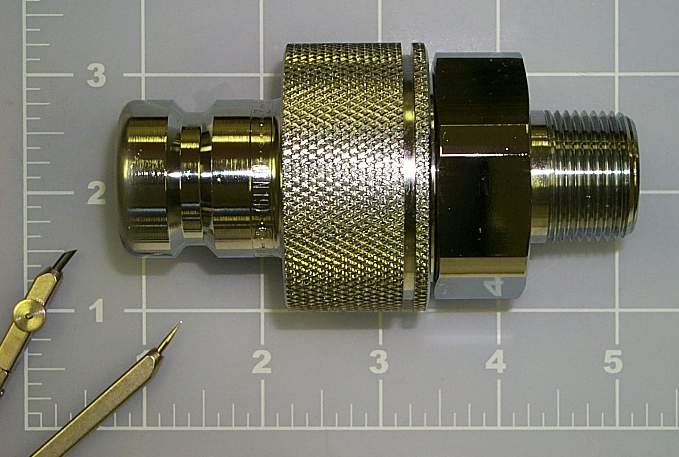

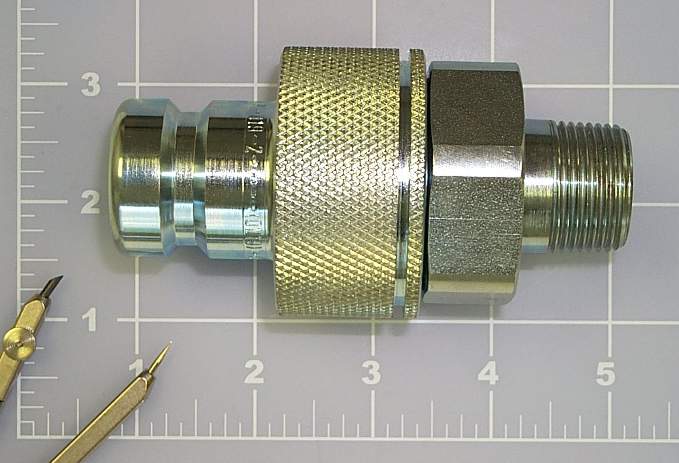

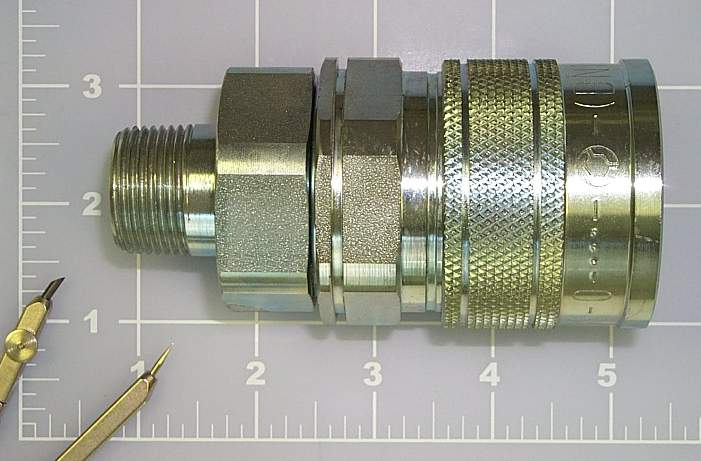

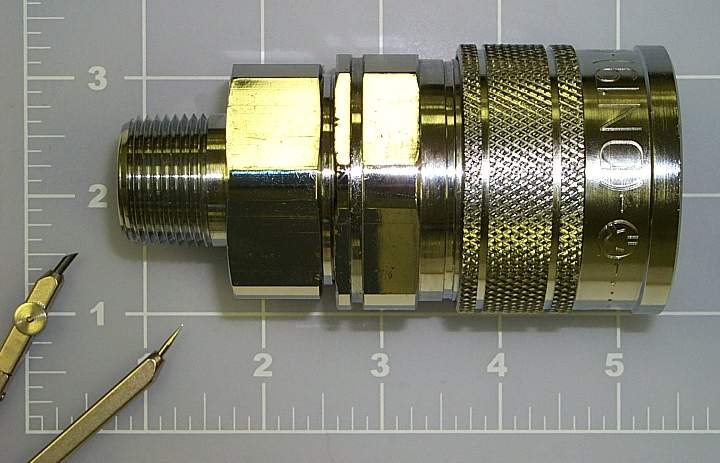

NPT(M) 3/4" LP-019-0-NP026-.. LP-019-2-NP026-.. LP-019-1-NP026-..

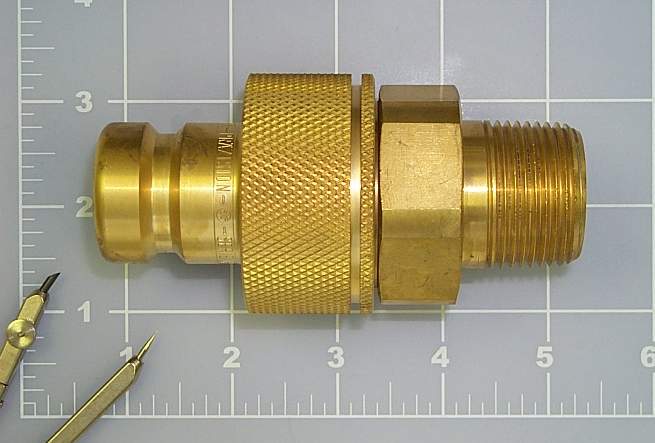

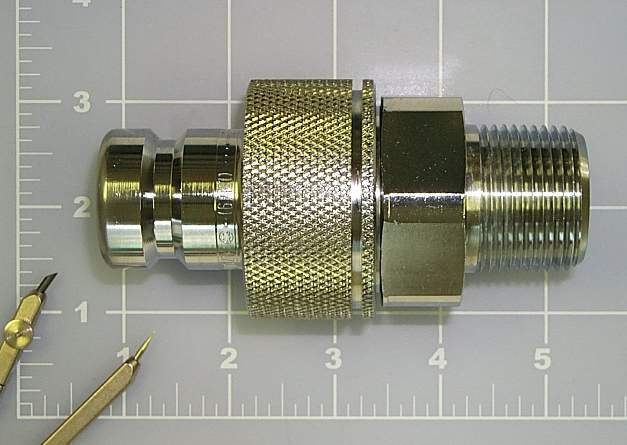

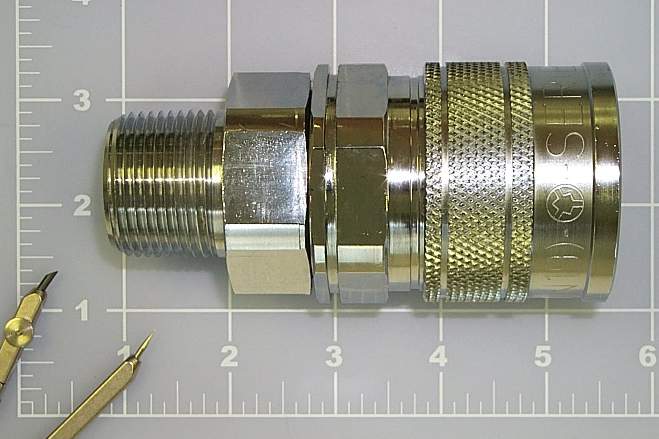

NPT(M) 1" LP-019-0-NP033-.. LP-019-2-NP033-.. LP-019-1-NP033-..

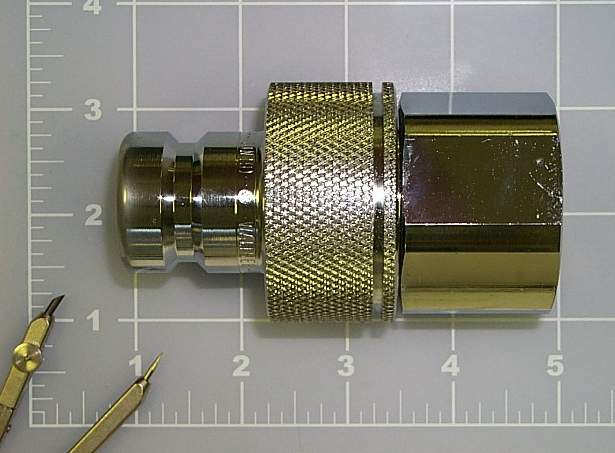

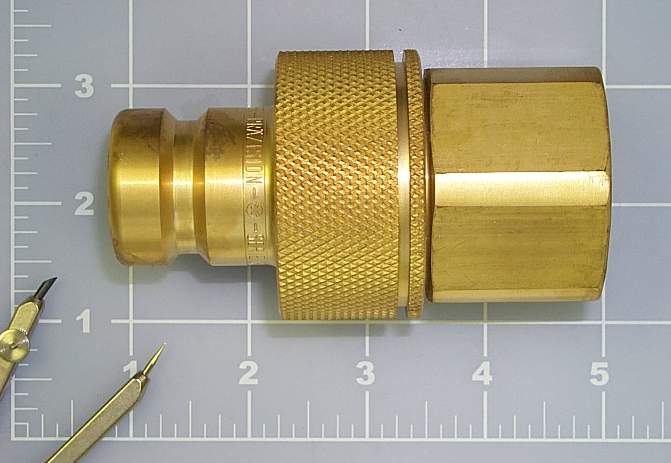

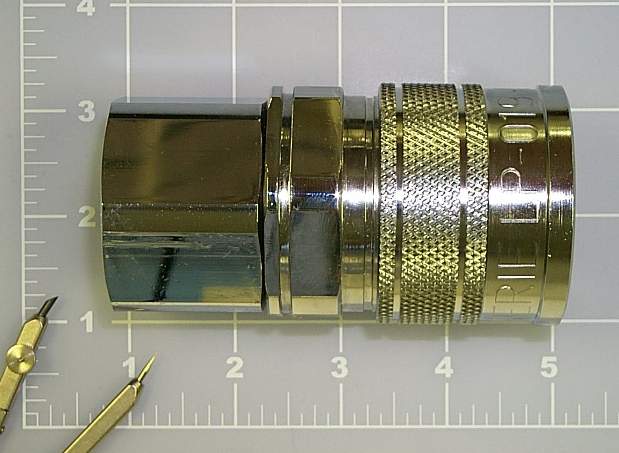

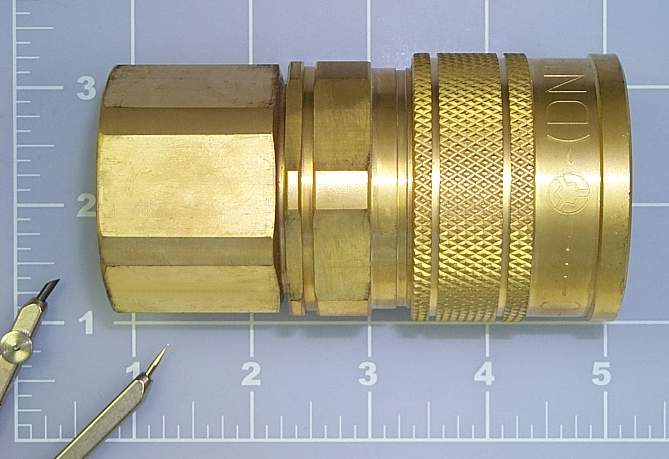

NPT(F) 3/4" LP-019-0-NP526-.. LP-019-2-NP526-.. LP-019-1-NP526-..

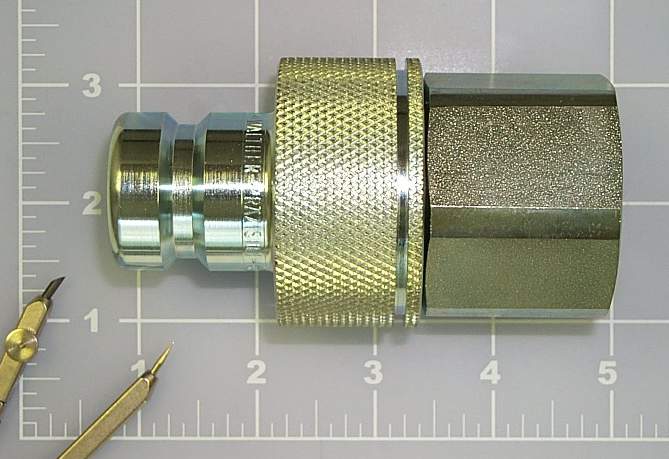

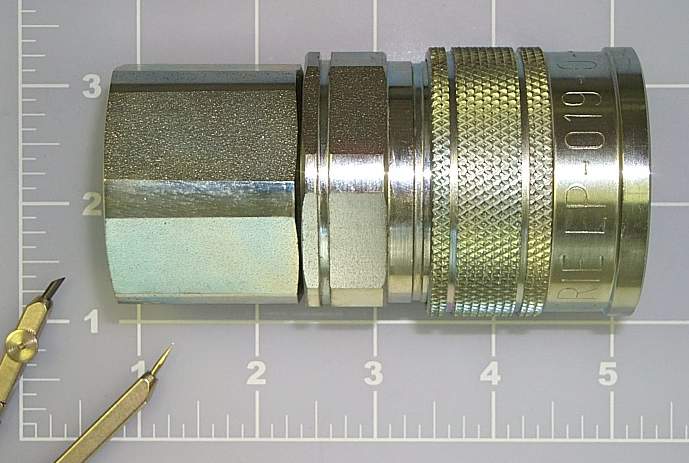

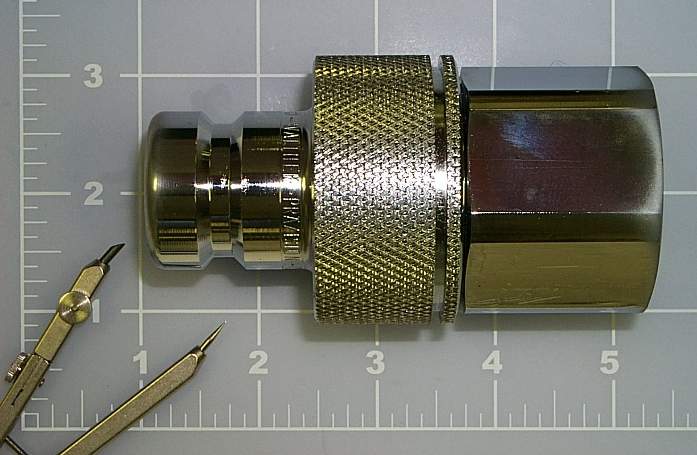

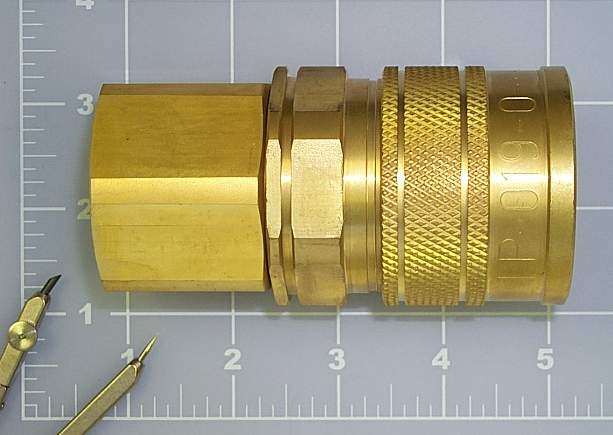

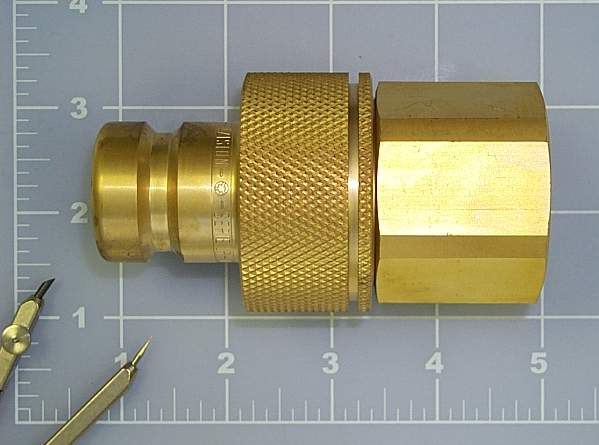

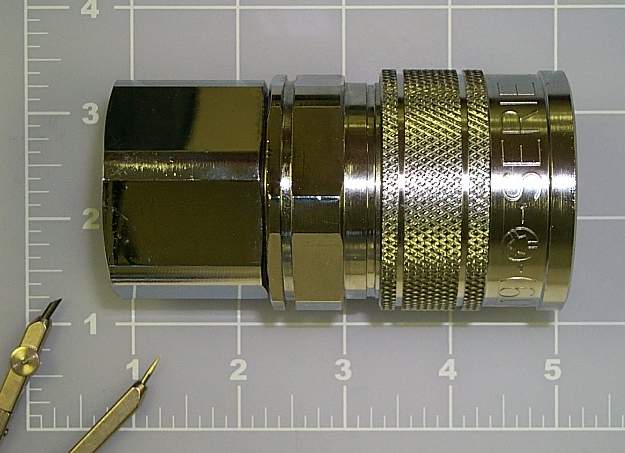

NTP(F) 1" LP-019-0-NP533-.. LP-019-2-NP533-.. LP-019-1-NP533-..
BSPP(M) with 60° Female cone  (usually to fit hose ends with BSP swivel nuts)
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple

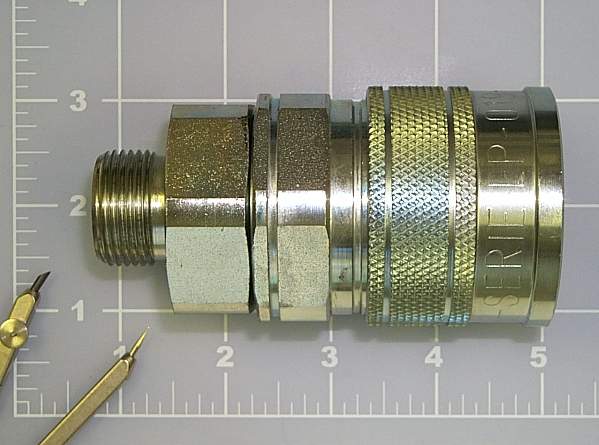

BSPP(M) 3/4" w/60° F cone  LP-019-0-VR026-.. LP-019-2-VR026-.. --
BSPP(M) 1" w/60° F cone  LP-019-0-VR033-.. LP-019-2-VR033-.. --
DIN 7631, M14 x 1.5mm with 60° Female cone (usually to fit hoses with metric swivel nuts)
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple
M26 x 1.5 LP-019-0-D1526-.. LP-019-2-D1526-.. --
M30 x 1.5 LP-019-0-D1930-.. LP-019-2-D1930-.. --
M30 x 1.5 bulkhead mount LP-019-0-DV022-.. LP-019-2-DV022-.. --
EO (Ermeto) to fit tube & ferrule
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple
M26 x 1.5
18mm OD tube (Light)		 LP-019-0-L1826-.. LP-019-2-L1826-.. --
M30 x 2.0
22mm tube OD (Light)		 LP-019-0-L2230-.. LP-019-2-L2230-.. --
M30 x 2.0

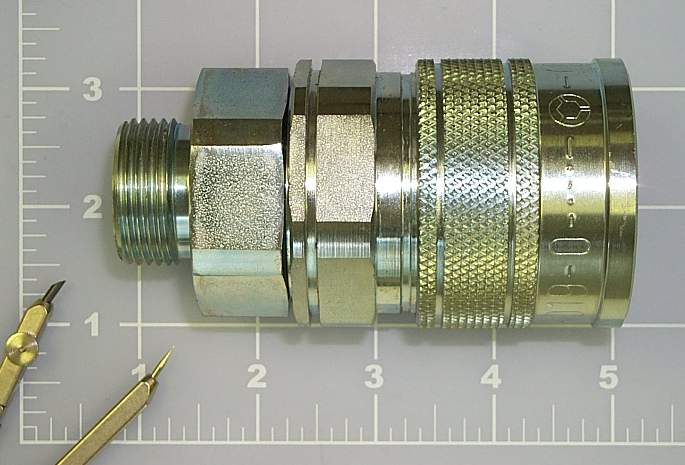

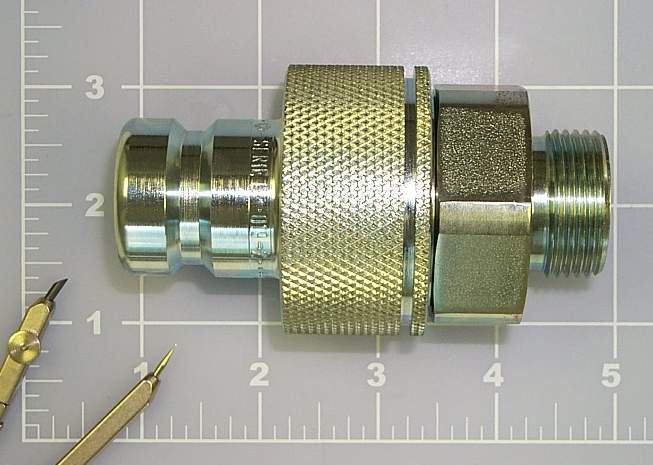

20mm OD tube (Heavy)		 LP-019-0-S2030-.. LP-019-2-S2030-.. --
M36 x 2.0
25mm OD tube (Heavy)		 LP-019-0-S2536-.. LP-019-2-S2536-.. --
Hose barbs
End fitting Self-sealing Coupling Self-sealing Nipple Thru Nipple

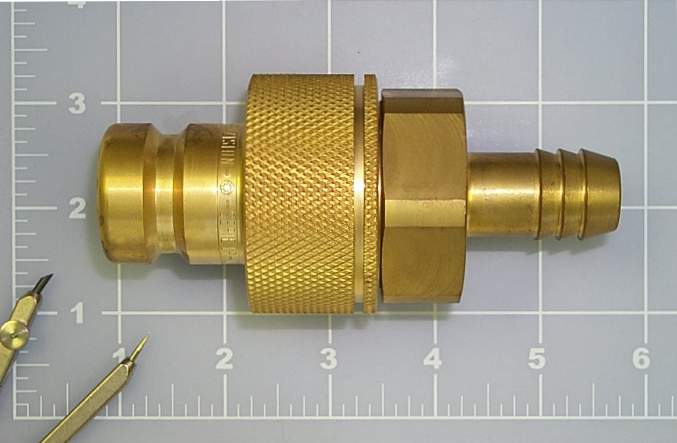

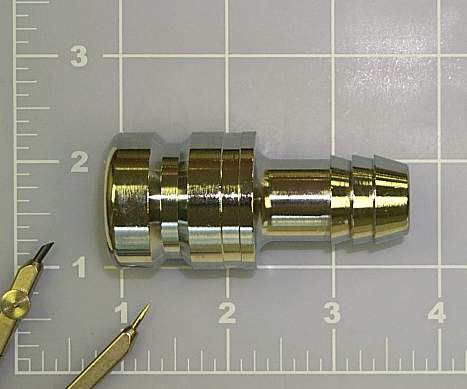

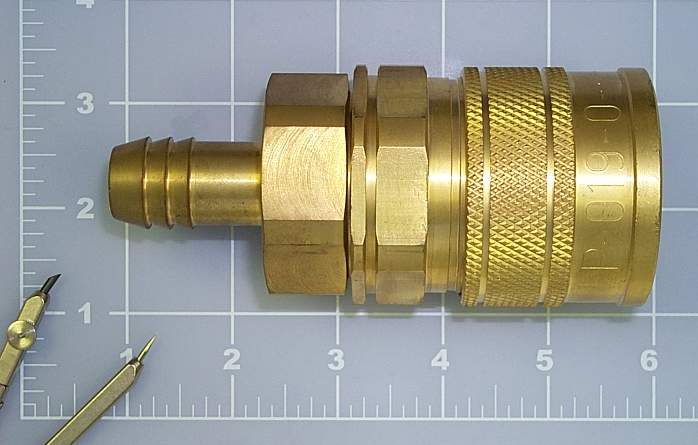

Hose Barb 3/4" (19mm) LP-019-0-SL019-.. LP-019-2-SL019-.. LP-019-1-SL019-..

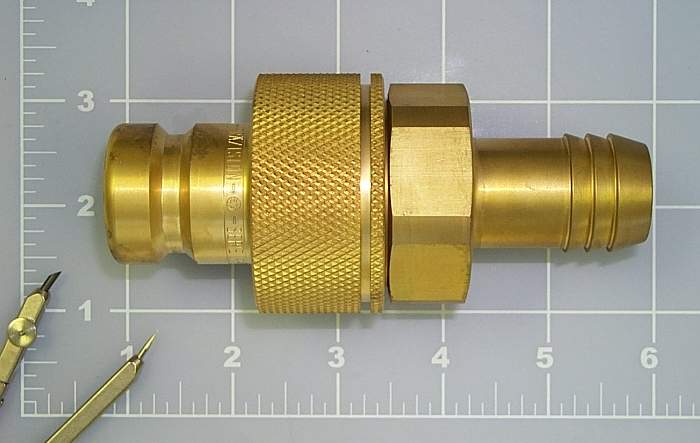

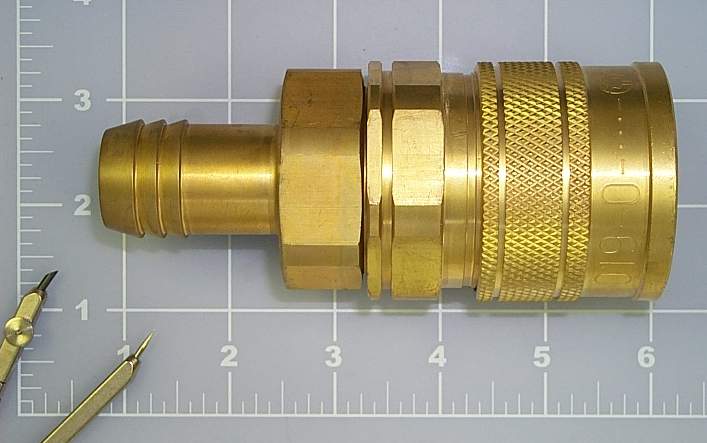

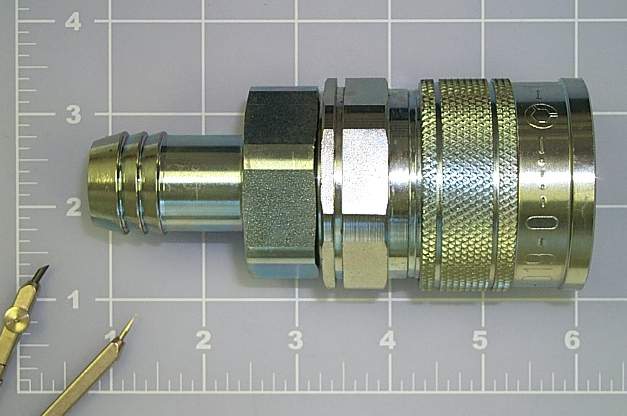

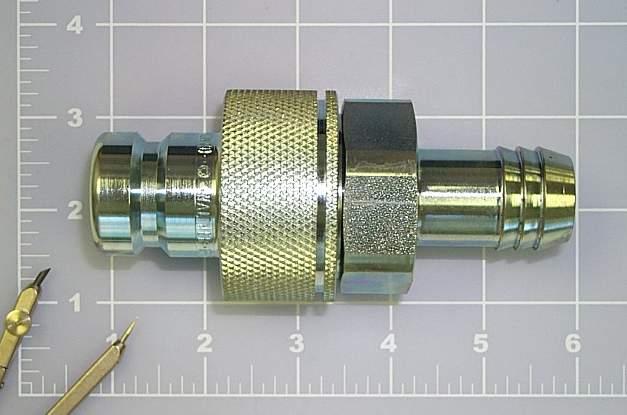

Hose Barb 1" (25mm) LP-019-0-SL025-.. LP-019-2-SL025-.. LP-019-1-SL025-..
Hose Barb 1-3/32" (28mm) LP-019-0-SL028-.. LP-019-2-SL028-.. --

Dust Caps & Dust Plugs - Part numbers for Series LP-019

Material Plugs for Couplings (Female side) Caps for Adapters (Male side)

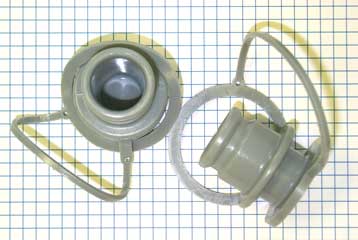

Non-pressure retaining1 LP-019-6-74-KU
 LP-019-5-74-KU
Pressure retaining2 LP-019-6-11 LP-019-5-11-1 (Nitrile)LP-019-5-11-2 (Viton)LP-019-5-11-4 (EPDM)

* Plugs and caps are available for both self-sealing & thru-type couplings and adapters.1. Soft PVC (grey)2. Zinc-plated steel body, nickel-plated steel chain and retaining ring

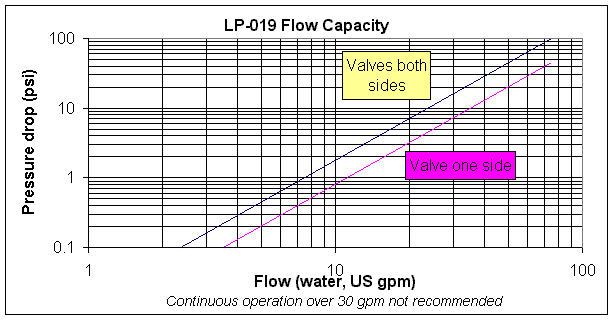

Flow Capacity

Flow Capacity for LP-019

Maxbar logo

1/2" BSPP(M), Thru type Nipple

Partial Part Number: LP-019-1-WR021-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-WR021-11
 --
Brass, passivated LP-019-1-WR021-21
 --
Brass, chrome plated LP-019-1-WR021-22
 --
Steel, 316 stainless LP-019-1-WR021-01
 --
Steel, electroless nickel pl. LP-019-1-WR021-13
 --
Brass, electroless nickel pl. LP-019-1-WR021-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

3/4" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-019-0-WR026-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-WR026-11-1
 LP-019-0-WR026-11-2
 LP-019-0-WR026-11-4
 LP-019-0-WR026-11

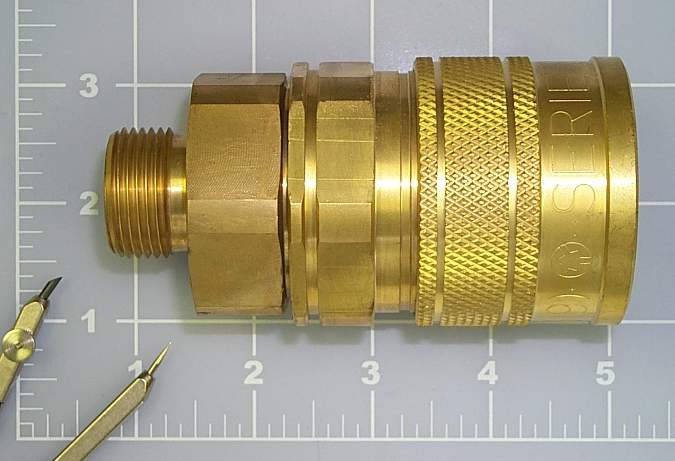

Brass, passivated LP-019-0-WR026-21-1
 LP-019-0-WR026-21-2
 LP-019-0-WR026-21-4
 LP-019-0-WR026-21
Brass, chrome plated LP-019-0-WR026-22-1
 LP-019-0-WR026-22-2
 LP-019-0-WR026-22-4
 --
Steel, 316 stainless LP-019-0-WR026-01-1
 LP-019-0-WR026-01-2
 LP-019-0-WR026-01-4
 --
Steel, electroless nickel pl. LP-019-0-WR026-13-1
 LP-019-0-WR026-13-2
 LP-019-0-WR026-13-4
 --
Brass, electroless nickel pl. LP-019-0-WR026-24-1
 LP-019-0-WR026-24-2
 LP-019-0-WR026-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

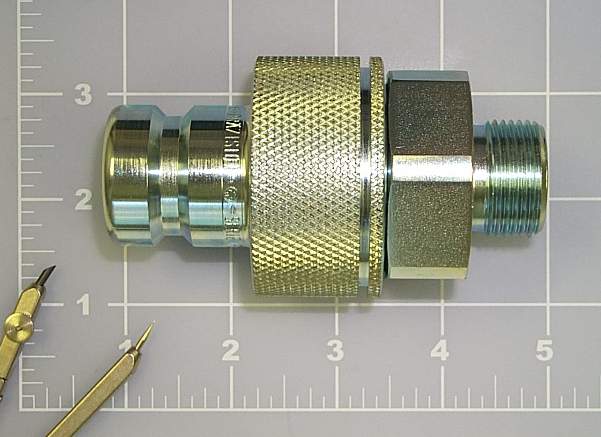

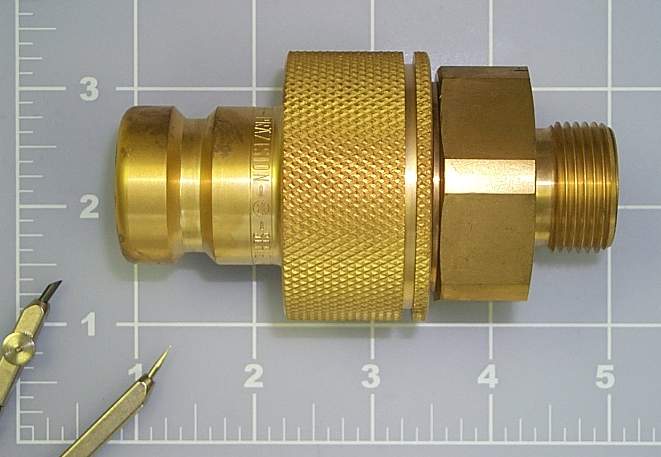

3/4" BSPP(M), Self-sealing Nipple

Partial Part Number: LP-019-2-WR026-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-WR026-11-1
 LP-019-2-WR026-11-2
 LP-019-2-WR026-11-4
 LP-019-2-WR026-11
Brass, passivated LP-019-2-WR026-21-1
 LP-019-2-WR026-21-2
 LP-019-2-WR026-21-4
 LP-019-2-WR026-21
Brass, chrome plated LP-019-2-WR026-22-1
 LP-019-2-WR026-22-2
 LP-019-2-WR026-22-4
 --
Steel, 316 stainless LP-019-2-WR026-01-1
 LP-019-2-WR026-01-2
 LP-019-2-WR026-01-4
 --
Steel, electroless nickel pl. LP-019-2-WR026-13-1
 LP-019-2-WR026-13-2
 LP-019-2-WR026-13-4
 --
Brass, electroless nickel pl. LP-019-2-WR026-24-1
 LP-019-2-WR026-24-2
 LP-019-2-WR026-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/4" BSPP(M), Thru type Nipple

Partial Part Number: LP-019-1-WR026-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-WR026-11
 --
Brass, passivated LP-019-1-WR026-21
 --
Brass, chrome plated LP-019-1-WR026-22
 --
Steel, 316 stainless LP-019-1-WR026-01
 --
Steel, electroless nickel pl. LP-019-1-WR026-13
 --
Brass, electroless nickel pl. LP-019-1-WR026-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

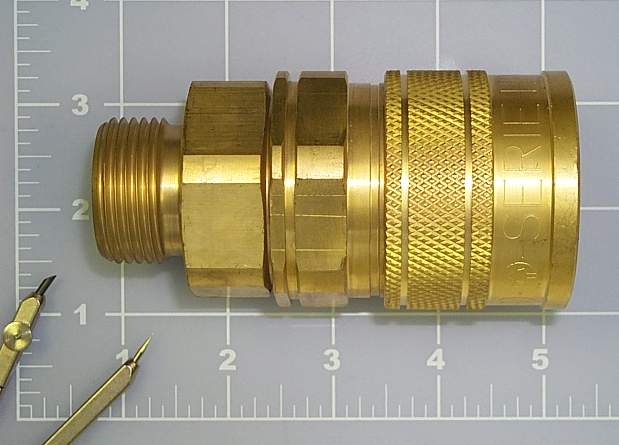

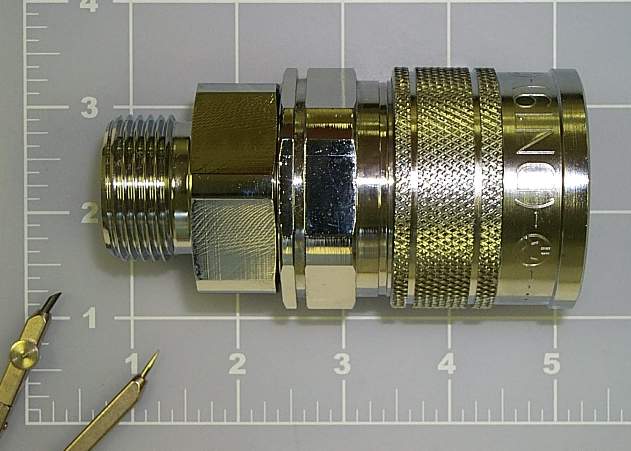

1" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-019-0-WR033-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-WR033-11-1
 LP-019-0-WR033-11-2
 LP-019-0-WR033-11-4
 LP-019-0-WR033-11
Brass, passivated LP-019-0-WR033-21-1
 LP-019-0-WR033-21-2
 LP-019-0-WR033-21-4
 LP-019-0-WR033-21
Brass, chrome plated LP-019-0-WR033-22-1
 LP-019-0-WR033-22-2
 LP-019-0-WR033-22-4
 LP-019-0-WR033-22
Steel, 316 stainless LP-019-0-WR033-01-1
 LP-019-0-WR033-01-2
 LP-019-0-WR033-01-4
 --
Steel, electroless nickel pl. LP-019-0-WR033-13-1
 LP-019-0-WR033-13-2
 LP-019-0-WR033-13-4
 --
Brass, electroless nickel pl. LP-019-0-WR033-24-1
 LP-019-0-WR033-24-2
 LP-019-0-WR033-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

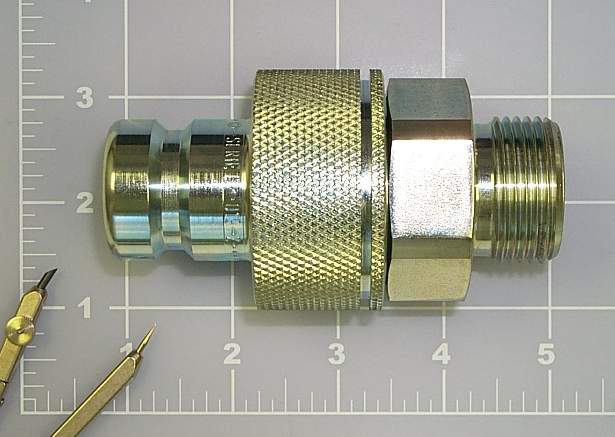

1" BSPP(M), Self-sealing Nipple

Partial Part Number: LP-019-2-WR033-..-.

Find complete part numbers below:

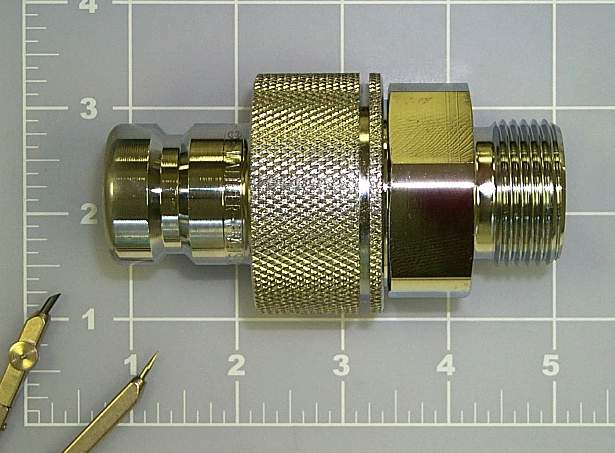

LP-019-2-WR033-22
Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-WR033-11-1
 LP-019-2-WR033-11-2
 LP-019-2-WR033-11-4
 LP-019-2-WR033-11

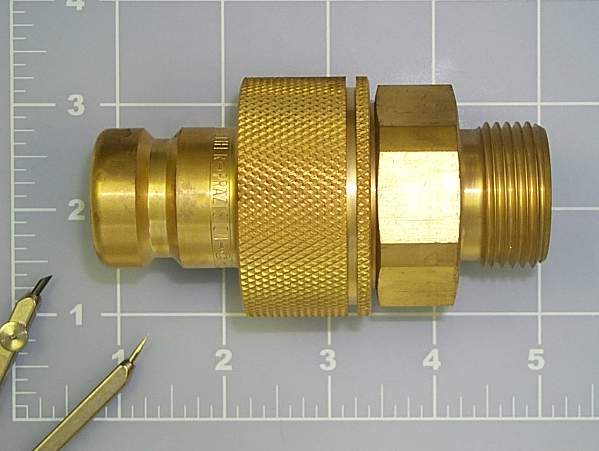

Brass, passivated LP-019-2-WR033-21-1
 LP-019-2-WR033-21-2
 LP-019-2-WR033-21-4
 LP-019-2-WR033-21
Brass, chrome plated LP-019-2-WR033-22-1
 LP-019-2-WR033-22-2
 LP-019-2-WR033-22-4
 LP-019-2-WR033-22
Steel, 316 stainless LP-019-2-WR033-01-1
 LP-019-2-WR033-01-2
 LP-019-2-WR033-01-4
 --
Steel, electroless nickel pl. LP-019-2-WR033-13-1
 LP-019-2-WR033-13-2
 LP-019-2-WR033-13-4
 --
Brass, electroless nickel pl. LP-019-2-WR033-24-1
 LP-019-2-WR033-24-2
 LP-019-2-WR033-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1" BSPP(M), Thru type Nipple

Partial Part Number: LP-019-1-WR033-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-WR033-11
 --
Brass, passivated LP-019-1-WR033-21
 --
Brass, chrome plated LP-019-1-WR033-22
 --
Steel, 316 stainless LP-019-1-WR033-01
 --
Steel, electroless nickel pl. LP-019-1-WR033-13
 --
Brass, electroless nickel pl. LP-019-1-WR033-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

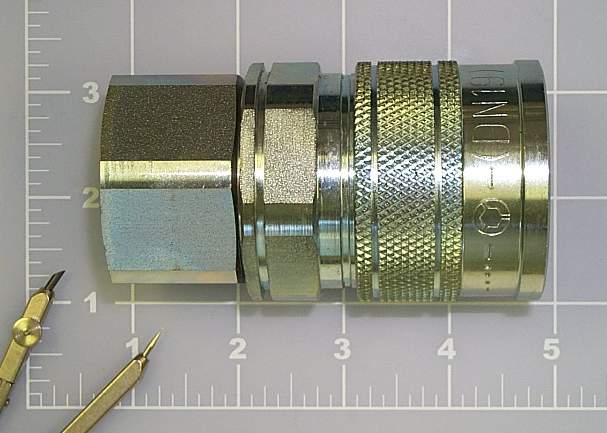

3/4" BSPP(F), Self-sealing Coupling

Partial Part Number: LP-019-0-WR526-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-WR526-11-1
 LP-019-0-WR526-11-2
 LP-019-0-WR526-11-4
 LP-019-0-WR526-11
Brass, passivated LP-019-0-WR526-21-1
 LP-019-0-WR526-21-2
 LP-019-0-WR526-21-4
 LP-019-0-WR526-21
Brass, chrome plated LP-019-0-WR526-22-1
 LP-019-0-WR526-22-2
 LP-019-0-WR526-22-4
 --
Steel, 316 stainless LP-019-0-WR526-01-1
 LP-019-0-WR526-01-2
 LP-019-0-WR526-01-4
 --
Steel, electroless nickel pl. LP-019-0-WR526-13-1
 LP-019-0-WR526-13-2
 LP-019-0-WR526-13-4
 --
Brass, electroless nickel pl. LP-019-0-WR526-24-1
 LP-019-0-WR526-24-2
 LP-019-0-WR526-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

3/4" BSPP(F), Self-sealing Nipple

Partial Part Number: LP-019-2-WR526-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM

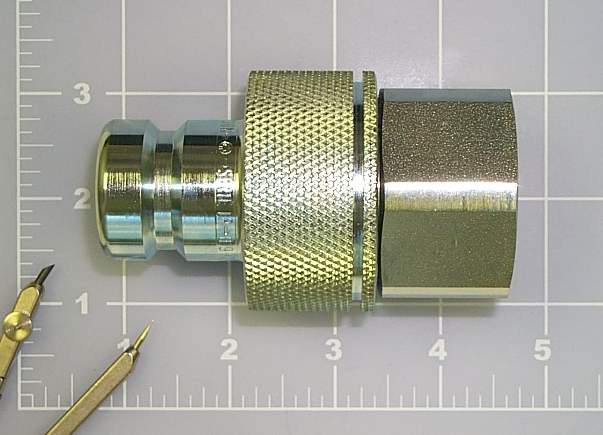

Steel, zinc plated LP-019-2-WR526-11-1
 LP-019-2-WR526-11-2
 LP-019-2-WR526-11-4
 LP-019-2-WR526-11
Brass, passivated LP-019-2-WR526-21-1
 LP-019-2-WR526-21-2
 LP-019-2-WR526-21-4
 LP-019-2-WR526-21
Brass, chrome plated LP-019-2-WR526-22-1
 LP-019-2-WR526-22-2
 LP-019-2-WR526-22-4
 --
Steel, 316 stainless LP-019-2-WR526-01-1
 LP-019-2-WR526-01-2
 LP-019-2-WR526-01-4
 --
Steel, electroless nickel pl. LP-019-2-WR526-13-1
 LP-019-2-WR526-13-2
 LP-019-2-WR526-13-4
 --
Brass, electroless nickel pl. LP-019-2-WR526-24-1
 LP-019-2-WR526-24-2
 LP-019-2-WR526-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/4" BSPP(F), Thru type Nipple

Partial Part Number: LP-019-1-WR526-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-WR526-11
 --
Brass, passivated LP-019-1-WR526-21
 --
Brass, chrome plated LP-019-1-WR526-22
 --
Steel, 316 stainless LP-019-1-WR526-01
 --
Steel, electroless nickel pl. LP-019-1-WR526-13
 --
Brass, electroless nickel pl. LP-019-1-WR526-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

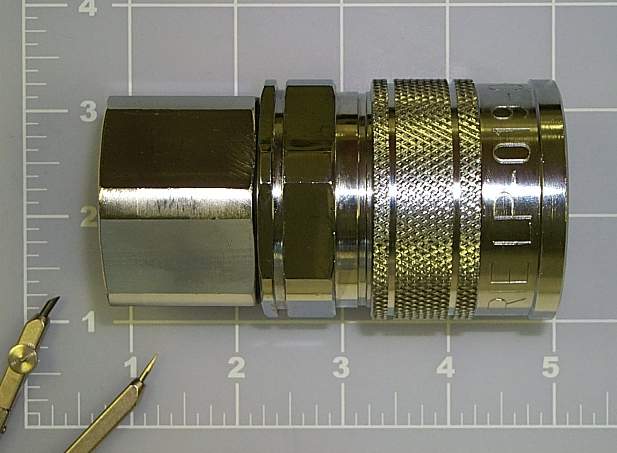

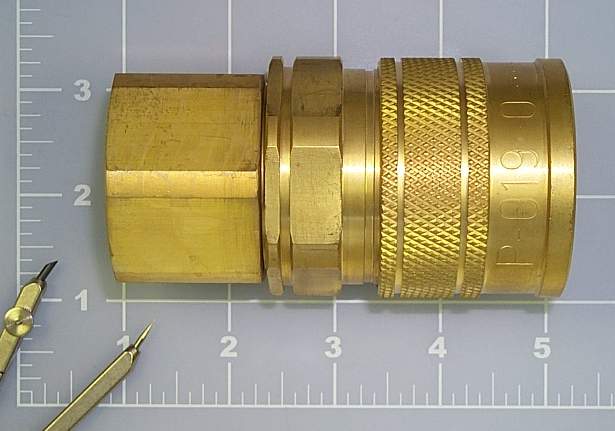

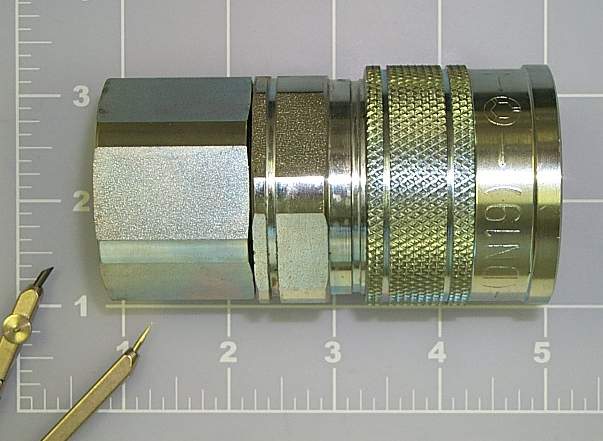

1" BSPP(F), Self-sealing Coupling

Partial Part Number: LP-019-0-WR533-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-WR533-11-1
 LP-019-0-WR533-11-2
 LP-019-0-WR533-11-4
 LP-019-0-WR533-11
Brass, passivated LP-019-0-WR533-21-1
 LP-019-0-WR533-21-2
 LP-019-0-WR533-21-4
 LP-019-0-WR533-21
Brass, chrome plated LP-019-0-WR533-22-1
 LP-019-0-WR533-22-2
 LP-019-0-WR533-22-4
 LP-019-0-WR533-22
Steel, 316 stainless LP-019-0-WR533-01-1
 LP-019-0-WR533-01-2
 LP-019-0-WR533-01-4
 --
Steel, electroless nickel pl. LP-019-0-WR533-13-1
 LP-019-0-WR533-13-2
 LP-019-0-WR533-13-4
 --
Brass, electroless nickel pl. LP-019-0-WR533-24-1
 LP-019-0-WR533-24-2
 LP-019-0-WR533-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

1" BSPP(F), Self-sealing Nipple

Partial Part Number: LP-019-2-WR533-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM

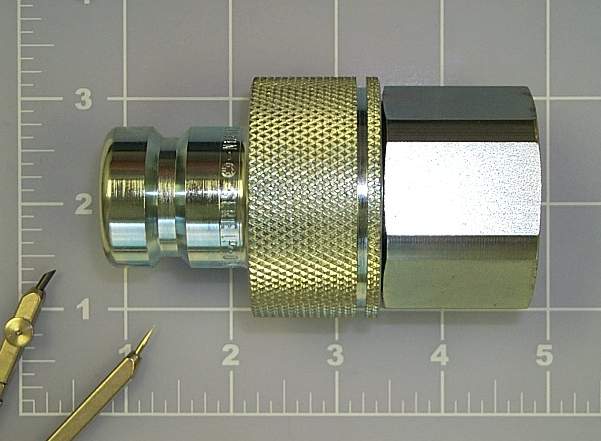

Steel, zinc plated LP-019-2-WR533-11-1
 LP-019-2-WR533-11-2
 LP-019-2-WR533-11-4
 LP-019-2-WR533-11

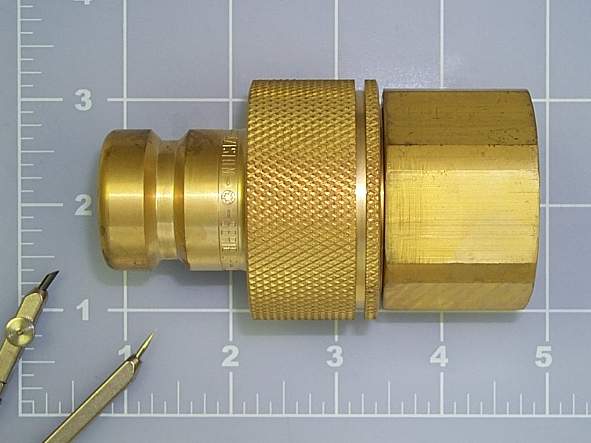

Brass, passivated LP-019-2-WR533-21-1
 LP-019-2-WR533-21-2
 LP-019-2-WR533-21-4
 LP-019-2-WR533-21

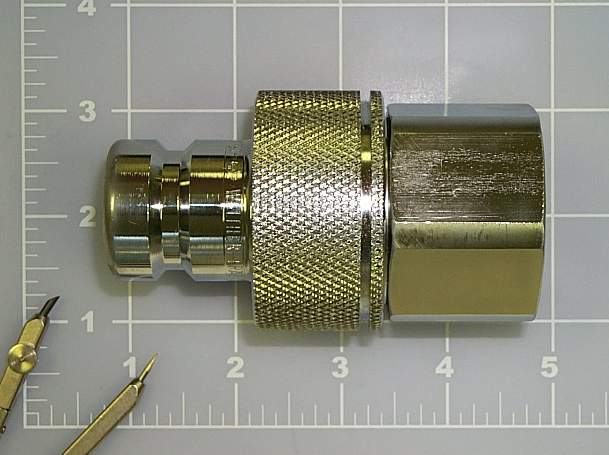

Brass, chrome plated LP-019-2-WR533-22-1
 LP-019-2-WR533-22-2
 LP-019-2-WR533-22-4
 LP-019-2-WR533-22
Steel, 316 stainless LP-019-2-WR533-01-1
 LP-019-2-WR533-01-2
 LP-019-2-WR533-01-4
 --
Steel, electroless nickel pl. LP-019-2-WR533-13-1
 LP-019-2-WR533-13-2
 LP-019-2-WR533-13-4
 --
Brass, electroless nickel pl. LP-019-2-WR533-24-1
 LP-019-2-WR533-24-2
 LP-019-2-WR533-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1" BSPP(F), Thru type Nipple

Partial Part Number: LP-019-1-WR533-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-WR533-11
 --
Brass, passivated LP-019-1-WR533-21
 --
Brass, chrome plated LP-019-1-WR533-22
 --
Steel, 316 stainless LP-019-1-WR533-01
 --
Steel, electroless nickel pl. LP-019-1-WR533-13
 --
Brass, electroless nickel pl. LP-019-1-WR533-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1/2" NPT(M), Thru type Nipple

Partial Part Number: LP-019-1-NP021-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-NP021-11
 --
Brass, passivated LP-019-1-NP021-21
 --
Brass, chrome plated LP-019-1-NP021-22
 --
Steel, 316 stainless LP-019-1-NP021-01
 --
Steel, electroless nickel pl. LP-019-1-NP021-13
 --
Brass, electroless nickel pl. LP-019-1-NP021-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

3/4" NPT(M), Self-sealing Coupling

Partial Part Number: LP-019-0-NP026-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-NP026-11-1
 LP-019-0-NP026-11-2
 LP-019-0-NP026-11-4
 LP-019-0-NP026-11
Brass, passivated LP-019-0-NP026-21-1
 LP-019-0-NP026-21-2
 LP-019-0-NP026-21-4
 LP-019-0-NP026-21
Brass, chrome plated LP-019-0-NP026-22-1
 LP-019-0-NP026-22-2
 LP-019-0-NP026-22-4
 LP-019-0-NP026-22
Steel, 316 stainless LP-019-0-NP026-01-1
 LP-019-0-NP026-01-2
 LP-019-0-NP026-01-4
 --
Steel, electroless nickel pl. LP-019-0-NP026-13-1
 LP-019-0-NP026-13-2
 LP-019-0-NP026-13-4
 --
Brass, electroless nickel pl. LP-019-0-NP026-24-1
 LP-019-0-NP026-24-2
 LP-019-0-NP026-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

3/4" NPT(M), Self-sealing Nipple

Partial Part Number: LP-019-2-NP026-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-NP026-11-1
 LP-019-2-NP026-11-2
 LP-019-2-NP026-11-4
 LP-019-2-NP026-11
Brass, passivated LP-019-2-NP026-21-1
 LP-019-2-NP026-21-2
 LP-019-2-NP026-21-4
 LP-019-2-NP026-21
Brass, chrome plated LP-019-2-NP026-22-1
 LP-019-2-NP026-22-2
 LP-019-2-NP026-22-4
 LP-019-2-NP026-22
Steel, 316 stainless LP-019-2-NP026-01-1
 LP-019-2-NP026-01-2
 LP-019-2-NP026-01-4
 --
Steel, electroless nickel pl. LP-019-2-NP026-13-1
 LP-019-2-NP026-13-2
 LP-019-2-NP026-13-4
 --
Brass, electroless nickel pl. LP-019-2-NP026-24-1
 LP-019-2-NP026-24-2
 LP-019-2-NP026-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/4" NPT(M), Thru type Nipple

Partial Part Number: LP-019-1-NP026-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-NP026-11
 --
Brass, passivated LP-019-1-NP026-21
 --
Brass, chrome plated LP-019-1-NP026-22
 --
Steel, 316 stainless LP-019-1-NP026-01
 --
Steel, electroless nickel pl. LP-019-1-NP026-13
 --
Brass, electroless nickel pl. LP-019-1-NP026-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1" NPT(M), Self-sealing Coupling

Partial Part Number: LP-019-0-NP033-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-NP033-11-1
 LP-019-0-NP033-11-2
 LP-019-0-NP033-11-4
 --
Brass, passivated LP-019-0-NP033-21-1
 LP-019-0-NP033-21-2
 LP-019-0-NP033-21-4
 LP-019-0-NP033-21
Brass, chrome plated LP-019-0-NP033-22-1
 LP-019-0-NP033-22-2
 LP-019-0-NP033-22-4
 LP-019-0-NP033-22
Steel, 316 stainless LP-019-0-NP033-01-1
 LP-019-0-NP033-01-2
 LP-019-0-NP033-01-4
 --
Steel, electroless nickel pl. LP-019-0-NP033-13-1
 LP-019-0-NP033-13-2
 LP-019-0-NP033-13-4
 --
Brass, electroless nickel pl. LP-019-0-NP033-24-1
 LP-019-0-NP033-24-2
 LP-019-0-NP033-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

1" NPT(M), Self-sealing Nipple

Partial Part Number: LP-019-2-NP033-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-NP033-11-1
 LP-019-2-NP033-11-2
 LP-019-2-NP033-11-4
 --
Brass, passivated LP-019-2-NP033-21-1
 LP-019-2-NP033-21-2
 LP-019-2-NP033-21-4
 LP-019-2-NP033-21
Brass, chrome plated LP-019-2-NP033-22-1
 LP-019-2-NP033-22-2
 LP-019-2-NP033-22-4
 LP-019-2-NP033-22
Steel, 316 stainless LP-019-2-NP033-01-1
 LP-019-2-NP033-01-2
 LP-019-2-NP033-01-4
 --
Steel, electroless nickel pl. LP-019-2-NP033-13-1
 LP-019-2-NP033-13-2
 LP-019-2-NP033-13-4
 --
Brass, electroless nickel pl. LP-019-2-NP033-24-1
 LP-019-2-NP033-24-2
 LP-019-2-NP033-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1" NPT(M), Thru type Nipple

Partial Part Number: LP-019-1-NP033-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-NP033-11
 --
Brass, passivated LP-019-1-NP033-21
 --
Brass, chrome plated LP-019-1-NP033-22
 --
Steel, 316 stainless LP-019-1-NP033-01
 --
Steel, electroless nickel pl. LP-019-1-NP033-13
 --
Brass, electroless nickel pl. LP-019-1-NP033-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

3/4" NPT(F), Self-sealing Coupling

Partial Part Number: LP-019-0-NP526-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-NP526-11-1
 LP-019-0-NP526-11-2
 LP-019-0-NP526-11-4
 --
Brass, passivated LP-019-0-NP526-21-1
 LP-019-0-NP526-21-2
 LP-019-0-NP526-21-4
 LP-019-0-NP526-21
Brass, chrome plated LP-019-0-NP526-22-1
 LP-019-0-NP526-22-2
 LP-019-0-NP526-22-4
 LP-019-0-NP526-22
Steel, 316 stainless LP-019-0-NP526-01-1
 LP-019-0-NP526-01-2
 LP-019-0-NP526-01-4
 --
Steel, electroless nickel pl. LP-019-0-NP526-13-1
 LP-019-0-NP526-13-2
 LP-019-0-NP526-13-4
 --
Brass, electroless nickel pl. LP-019-0-NP526-24-1
 LP-019-0-NP526-24-2
 LP-019-0-NP526-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

3/4" NPT(F), Self-sealing Nipple

Partial Part Number: LP-019-2-NP526-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-NP526-11-1
 LP-019-2-NP526-11-2
 LP-019-2-NP526-11-4
 --
Brass, passivated LP-019-2-NP526-21-1
 LP-019-2-NP526-21-2
 LP-019-2-NP526-21-4
 LP-019-2-NP526-21
Brass, chrome plated LP-019-2-NP526-22-1
 LP-019-2-NP526-22-2
 LP-019-2-NP526-22-4
 LP-019-2-NP526-22
Steel, 316 stainless LP-019-2-NP526-01-1
 LP-019-2-NP526-01-2
 LP-019-2-NP526-01-4
 --
Steel, electroless nickel pl. LP-019-2-NP526-13-1
 LP-019-2-NP526-13-2
 LP-019-2-NP526-13-4
 --
Brass, electroless nickel pl. LP-019-2-NP526-24-1
 LP-019-2-NP526-24-2
 LP-019-2-NP526-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/4" NPT(F), Thru type Nipple

Partial Part Number: LP-019-1-NP526-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-NP526-11
 --
Brass, passivated LP-019-1-NP526-21
 --
Brass, chrome plated LP-019-1-NP526-22
 --
Steel, 316 stainless LP-019-1-NP526-01
 --
Steel, electroless nickel pl. LP-019-1-NP526-13
 --
Brass, electroless nickel pl. LP-019-1-NP526-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1" NPT(F), Self-sealing Coupling

Partial Part Number: LP-019-0-NP533-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-NP533-11-1
 LP-019-0-NP533-11-2
 LP-019-0-NP533-11-4
 LP-019-0-NP533-11
Brass, passivated LP-019-0-NP533-21-1
 LP-019-0-NP533-21-2
 LP-019-0-NP533-21-4
 LP-019-0-NP533-21
Brass, chrome plated LP-019-0-NP533-22-1
 LP-019-0-NP533-22-2
 LP-019-0-NP533-22-4
 LP-019-0-NP533-22
Steel, 316 stainless LP-019-0-NP533-01-1
 LP-019-0-NP533-01-2
 LP-019-0-NP533-01-4
 --
Steel, electroless nickel pl. LP-019-0-NP533-13-1
 LP-019-0-NP533-13-2
 LP-019-0-NP533-13-4
 --
Brass, electroless nickel pl. LP-019-0-NP533-24-1
 LP-019-0-NP533-24-2
 LP-019-0-NP533-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

1" NPT(F), Self-sealing Nipple

Partial Part Number: LP-019-2-NP533-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-NP533-11-1
 LP-019-2-NP533-11-2
 LP-019-2-NP533-11-4
 LP-019-2-NP533-11
Brass, passivated LP-019-2-NP533-21-1
 LP-019-2-NP533-21-2
 LP-019-2-NP533-21-4
 LP-019-2-NP533-21
Brass, chrome plated LP-019-2-NP533-22-1
 LP-019-2-NP533-22-2
 LP-019-2-NP533-22-4
 LP-019-2-NP533-22
Steel, 316 stainless LP-019-2-NP533-01-1
 LP-019-2-NP533-01-2
 LP-019-2-NP533-01-4
 --
Steel, electroless nickel pl. LP-019-2-NP533-13-1
 LP-019-2-NP533-13-2
 LP-019-2-NP533-13-4
 --
Brass, electroless nickel pl. LP-019-2-NP533-24-1
 LP-019-2-NP533-24-2
 LP-019-2-NP533-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1" NPT(F), Thru type Nipple

Partial Part Number: LP-019-1-NP533-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-NP533-11
 --
Brass, passivated LP-019-1-NP533-21
 --
Brass, chrome plated LP-019-1-NP533-22
 --
Steel, 316 stainless LP-019-1-NP533-01
 --
Steel, electroless nickel pl. LP-019-1-NP533-13
 --
Brass, electroless nickel pl. LP-019-1-NP533-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1/4" BSPP(M) w/60° F cone, Self-sealing Coupling

Partial Part Number: LP-019-0-VR026-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-VR026-11-1
 LP-019-0-VR026-11-2
 LP-019-0-VR026-11-4
 LP-019-0-VR026-11
Steel, 316 stainless LP-019-0-VR026-01-1
 LP-019-0-VR026-01-2
 LP-019-0-VR026-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

1/4" BSPP(M) w/60° F cone, Self-sealing Nipple

Partial Part Number: LP-019-2-VR026-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-VR026-11-1
 LP-019-2-VR026-11-2
 LP-019-2-VR026-11-4
 LP-019-2-VR026-11
Steel, 316 stainless LP-019-2-VR026-01-1
 LP-019-2-VR026-01-2
 LP-019-2-VR026-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

1/4" BSPP(M) w/60° F cone, Self-sealing Coupling

Partial Part Number: LP-019-0-VR033-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-VR033-11-1
 LP-019-0-VR033-11-2
 LP-019-0-VR033-11-4
 --
Steel, 316 stainless LP-019-0-VR033-01-1
 LP-019-0-VR033-01-2
 LP-019-0-VR033-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

1/4" BSPP(M) w/60° F cone, Self-sealing Nipple

Partial Part Number: LP-019-2-VR033-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-VR033-11-1
 LP-019-2-VR033-11-2
 LP-019-2-VR033-11-4
 --
Steel, 316 stainless LP-019-2-VR033-01-1
 LP-019-2-VR033-01-2
 LP-019-2-VR033-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M26 x 1.5 w/60° F cone, Self-sealing Coupling

Partial Part Number: LP-019-0-D1526-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-D1526-11-1
 LP-019-0-D1526-11-2
 LP-019-0-D1526-11-4
 --
Steel, 316 stainless LP-019-0-D1526-01-1
 LP-019-0-D1526-01-2
 LP-019-0-D1526-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

M26 x 1.5 w/60° F cone, Self-sealing Nipple

Partial Part Number: LP-019-2-D1526-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-D1526-11-1
 LP-019-2-D1526-11-2
 LP-019-2-D1526-11-4
 --
Steel, 316 stainless LP-019-2-D1526-01-1
 LP-019-2-D1526-01-2
 LP-019-2-D1526-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M30 x 1.5 w/60° F cone, Self-sealing Coupling

Partial Part Number: LP-019-0-D1930-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-D1930-11-1
 LP-019-0-D1930-11-2
 LP-019-0-D1930-11-4
 --
Steel, 316 stainless LP-019-0-D1930-01-1
 LP-019-0-D1930-01-2
 LP-019-0-D1930-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

M30 x 1.5 w/60° F cone, Self-sealing Nipple

Partial Part Number: LP-019-2-D1930-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-D1930-11-1
 LP-019-2-D1930-11-2
 LP-019-2-D1930-11-4
 --
Steel, 316 stainless LP-019-2-D1930-01-1
 LP-019-2-D1930-01-2
 LP-019-2-D1930-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M30 x 1.5 w/60° F cone, bulkhead mount, Self-sealing Coupling

Partial Part Number: LP-019-0-DV022-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-DV022-11-1
 LP-019-0-DV022-11-2
 LP-019-0-DV022-11-4
 --
Steel, 316 stainless LP-019-0-DV022-01-1
 LP-019-0-DV022-01-2
 LP-019-0-DV022-01-4
 --
Steel, electroless nickel pl. LP-019-0-DV022-13-1
 LP-019-0-DV022-13-2
 LP-019-0-DV022-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

M30 x 1.5 w/60° F cone, bulkhead mount, Self-sealing Nipple

Partial Part Number: LP-019-2-DV022-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-DV022-11-1
 LP-019-2-DV022-11-2
 LP-019-2-DV022-11-4
 --
Steel, 316 stainless LP-019-2-DV022-01-1
 LP-019-2-DV022-01-2
 LP-019-2-DV022-01-4
 --
Steel, electroless nickel pl. LP-019-2-DV022-13-1
 LP-019-2-DV022-13-2
 LP-019-2-DV022-13-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M26 x 1.5 18mm tube OD (Light), Self-sealing Coupling

Partial Part Number: LP-019-0-L1826-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-L1826-11-1
 LP-019-0-L1826-11-2
 LP-019-0-L1826-11-4
 --
Steel, 316 stainless LP-019-0-L1826-01-1
 LP-019-0-L1826-01-2
 LP-019-0-L1826-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

M26 x 1.5 18mm tube OD (Light), Self-sealing Nipple

Partial Part Number: LP-019-2-L1826-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-L1826-11-1
 LP-019-2-L1826-11-2
 LP-019-2-L1826-11-4
 --
Steel, 316 stainless LP-019-2-L1826-01-1
 LP-019-2-L1826-01-2
 LP-019-2-L1826-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M30 x 1.5 22mm tube OD (Light), Self-sealing Coupling

Partial Part Number: LP-019-0-L2230-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-L2230-11-1
 LP-019-0-L2230-11-2
 LP-019-0-L2230-11-4
 --
Steel, 316 stainless LP-019-0-L2230-01-1
 LP-019-0-L2230-01-2
 LP-019-0-L2230-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

M30 x 1.5 22mm tube OD (Light), Self-sealing Nipple

Partial Part Number: LP-019-2-L2230-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-L2230-11-1
 LP-019-2-L2230-11-2
 LP-019-2-L2230-11-4
 --
Steel, 316 stainless LP-019-2-L2230-01-1
 LP-019-2-L2230-01-2
 LP-019-2-L2230-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M30 x 2.0 20mm tube OD (Heavy), Self-sealing Coupling

Partial Part Number: LP-019-0-S2030-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-S2030-11-1
 LP-019-0-S2030-11-2
 LP-019-0-S2030-11-4
 LP-019-0-S2030-11
Steel, 316 stainless LP-019-0-S2030-01-1
 LP-019-0-S2030-01-2
 LP-019-0-S2030-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

M30 x 2.0 20mm tube OD (Heavy), Self-sealing Nipple

Partial Part Number: LP-019-2-S2030-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-S2030-11-1
 LP-019-2-S2030-11-2
 LP-019-2-S2030-11-4
 LP-019-2-S2030-11
Steel, 316 stainless LP-019-2-S2030-01-1
 LP-019-2-S2030-01-2
 LP-019-2-S2030-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

M36 x 2.0 25mm tube OD (Heavy), Self-sealing Coupling

Partial Part Number: LP-019-0-S2536-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-S2536-11-1
 LP-019-0-S2536-11-2
 LP-019-0-S2536-11-4
 --
Steel, 316 stainless LP-019-0-S2536-01-1
 LP-019-0-S2536-01-2
 LP-019-0-S2536-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

M36 x 2.0 25mm tube OD (Heavy), Self-sealing Nipple

Partial Part Number: LP-019-2-S2536-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-S2536-11-1
 LP-019-2-S2536-11-2
 LP-019-2-S2536-11-4
 --
Steel, 316 stainless LP-019-2-S2536-01-1
 LP-019-2-S2536-01-2
 LP-019-2-S2536-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Maxbar logo

3/4" Hose Barb (19mm), Self-sealing Coupling

Partial Part Number: LP-019-0-SL019-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-SL019-11-1
 LP-019-0-SL019-11-2
 LP-019-0-SL019-11-4
 --
Brass, passivated LP-019-0-SL019-21-1
 LP-019-0-SL019-21-2
 LP-019-0-SL019-21-4
 LP-019-0-SL019-21
Brass, chrome plated LP-019-0-SL019-22-1
 LP-019-0-SL019-22-2
 LP-019-0-SL019-22-4
 --
Steel, 316 stainless LP-019-0-SL019-01-1
 LP-019-0-SL019-01-2
 LP-019-0-SL019-01-4
 --
Steel, electroless nickel pl. LP-019-0-SL019-13-1
 LP-019-0-SL019-13-2
 LP-019-0-SL019-13-4
 --
Brass, electroless nickel pl. LP-019-0-SL019-24-1
 LP-019-0-SL019-24-2
 LP-019-0-SL019-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

3/4" Hose Barb (19mm), Self-sealing Nipple

Partial Part Number: LP-019-2-SL019-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-SL019-11-1
 LP-019-2-SL019-11-2
 LP-019-2-SL019-11-4
 --
Brass, passivated LP-019-2-SL019-21-1
 LP-019-2-SL019-21-2
 LP-019-2-SL019-21-4
 LP-019-2-SL019-21
Brass, chrome plated LP-019-2-SL019-22-1
 LP-019-2-SL019-22-2
 LP-019-2-SL019-22-4
 --
Steel, 316 stainless LP-019-2-SL019-01-1
 LP-019-2-SL019-01-2
 LP-019-2-SL019-01-4
 --
Steel, electroless nickel pl. LP-019-2-SL019-13-1
 LP-019-2-SL019-13-2
 LP-019-2-SL019-13-4
 --
Brass, electroless nickel pl. LP-019-2-SL019-24-1
 LP-019-2-SL019-24-2
 LP-019-2-SL019-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

3/4" Hose Barb (19mm), Thru type Nipple

Partial Part Number: LP-019-1-SL019-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-SL019-11
 --
Brass, passivated LP-019-1-SL019-21
 --
Brass, chrome plated LP-019-1-SL019-22
 LP-019-1-SL019-22
Steel, 316 stainless LP-019-1-SL019-01
 --
Steel, electroless nickel pl. LP-019-1-SL019-13
 --
Brass, electroless nickel pl. LP-019-1-SL019-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1" Hose Barb (25mm), Self-sealing Coupling

Partial Part Number: LP-019-0-SL025-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-SL025-11-1
 LP-019-0-SL025-11-2
 LP-019-0-SL025-11-4
 LP-019-0-SL025-11
Brass, passivated LP-019-0-SL025-21-1
 LP-019-0-SL025-21-2
 LP-019-0-SL025-21-4
 LP-019-0-SL025-21
Brass, chrome plated LP-019-0-SL025-22-1
 LP-019-0-SL025-22-2
 LP-019-0-SL025-22-4
 --
Steel, 316 stainless LP-019-0-SL025-01-1
 LP-019-0-SL025-01-2
 LP-019-0-SL025-01-4
 --
Steel, electroless nickel pl. LP-019-0-SL025-13-1
 LP-019-0-SL025-13-2
 LP-019-0-SL025-13-4
 --
Brass, electroless nickel pl. LP-019-0-SL025-24-1
 LP-019-0-SL025-24-2
 LP-019-0-SL025-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

1" Hose Barb (25mm), Self-sealing Nipple

Partial Part Number: LP-019-2-SL025-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-SL025-11-1
 LP-019-2-SL025-11-2
 LP-019-2-SL025-11-4
 LP-019-2-SL025-11
Brass, passivated LP-019-2-SL025-21-1
 LP-019-2-SL025-21-2
 LP-019-2-SL025-21-4
 LP-019-2-SL025-21
Brass, chrome plated LP-019-2-SL025-22-1
 LP-019-2-SL025-22-2
 LP-019-2-SL025-22-4
 --
Steel, 316 stainless LP-019-2-SL025-01-1
 LP-019-2-SL025-01-2
 LP-019-2-SL025-01-4
 --
Steel, electroless nickel pl. LP-019-2-SL025-13-1
 LP-019-2-SL025-13-2
 LP-019-2-SL025-13-4
 --
Brass, electroless nickel pl. LP-019-2-SL025-24-1
 LP-019-2-SL025-24-2
 LP-019-2-SL025-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

1" Hose Barb (25mm), Thru type Nipple

Partial Part Number: LP-019-1-SL025-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-019-1-SL025-11
 --
Brass, passivated LP-019-1-SL025-21
 --
Brass, chrome plated LP-019-1-SL025-22
 --
Steel, 316 stainless LP-019-1-SL025-01
 --
Steel, electroless nickel pl. LP-019-1-SL025-13
 --
Brass, electroless nickel pl. LP-019-1-SL025-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1-3/32" Hose Barb (28mm), Self-sealing Coupling

Partial Part Number: LP-019-0-SL028-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-0-SL028-11-1
 LP-019-0-SL028-11-2
 LP-019-0-SL028-11-4
 --
Brass, passivated LP-019-0-SL028-21-1
 LP-019-0-SL028-21-2
 LP-019-0-SL028-21-4
 --
Brass, chrome plated LP-019-0-SL028-22-1
 LP-019-0-SL028-22-2
 LP-019-0-SL028-22-4
 --
Steel, 316 stainless LP-019-0-SL028-01-1
 LP-019-0-SL028-01-2
 LP-019-0-SL028-01-4
 --
Steel, electroless nickel pl. LP-019-0-SL028-13-1
 LP-019-0-SL028-13-2
 LP-019-0-SL028-13-4
 --
Brass, electroless nickel pl. LP-019-0-SL028-24-1
 LP-019-0-SL028-24-2
 LP-019-0-SL028-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG
Maxbar logo

1-3/32" Hose Barb (28mm), Self-sealing Nipple

Partial Part Number: LP-019-2-SL028-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-019-2-SL028-11-1
 LP-019-2-SL028-11-2
 LP-019-2-SL028-11-4
 --
Brass, passivated LP-019-2-SL028-21-1
 LP-019-2-SL028-21-2
 LP-019-2-SL028-21-4
 --
Brass, chrome plated LP-019-2-SL028-22-1
 LP-019-2-SL028-22-2
 LP-019-2-SL028-22-4
 --
Steel, 316 stainless LP-019-2-SL028-01-1
 LP-019-2-SL028-01-2
 LP-019-2-SL028-01-4
 --
Steel, electroless nickel pl. LP-019-2-SL028-13-1
 LP-019-2-SL028-13-2
 LP-019-2-SL028-13-4
 --
Brass, electroless nickel pl. LP-019-2-SL028-24-1
 LP-019-2-SL028-24-2
 LP-019-2-SL028-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Sleeve pre-set for one-hand connecting -VH
Ring grips -GG

Contact one of our sales representatives today
to inquire about a quote from Maxbar | Walther Precision USA
or call us today at (832) 327-0534
