LP-032

Need A Quote?

Coupling Information

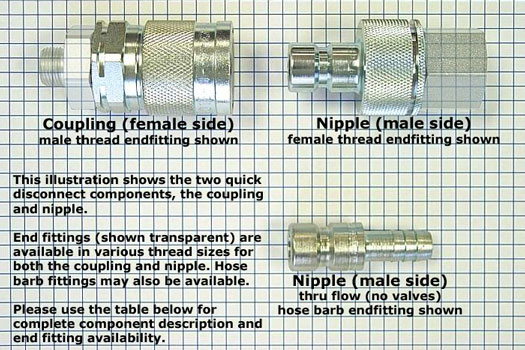

There are four basic types of LP-032 coupling. Part numbers for each are listed below.

Valve arrangement The Coupling (Female side) The Nipple (Male side)
Standard (with valves) LP-032-0-... LP-032-2-...
No valves (thru type) LP-032-4-... LP-032-1-...
LP-032 Couplings

End Fittings - Partial Part Number

(Refer to Part Number System)
BSPP (British Standard Pipe, Parallel)
End fitting Self-sealing Coupling Thru Coupling Self-sealing Nipple Thru Nipple
BSPP(M) 1-1/2" LP-032-0-WR048-.. LP-032-4-WR048-.. LP-032-2-WR048-.. LP-032-1-WR048-..
BSPP(M) 2" LP-032-0-WR060-.. LP-032-4-WR060-.. LP-032-2-WR060-.. LP-032-1-WR060-..
BSPP(F) 1-1/4" -- LP-032-4-WR542-.. -- LP-032-1-WR542-..
BSPP(F) 1-1/2" LP-032-0-WR548-.. LP-032-4-WR548-.. LP-032-2-WR548-.. LP-032-1-WR548-..
BSPP(F) 2" LP-032-0-WR560-.. LP-032-4-WR560-.. LP-032-2-WR560-.. LP-032-1-WR560-..
NPT (National Pipe, Tapered)
End fitting Self-sealing Coupling Thru Coupling Self-sealing Nipple Thru Nipple
NPT (M) 1-1/2" LP-032-0-NP048-.. LP-032-4-NP048-.. LP-032-2-NP048-.. LP-032-1-NP048-..
NPT(M) 2" LP-032-0-NP060-.. LP-032-4-NP060-.. LP-032-2-NP060-.. LP-032-1-NP060-..
NPT(F) 1-1/4" -- LP-032-4-NP542-.. -- LP-032-1-NP542-..

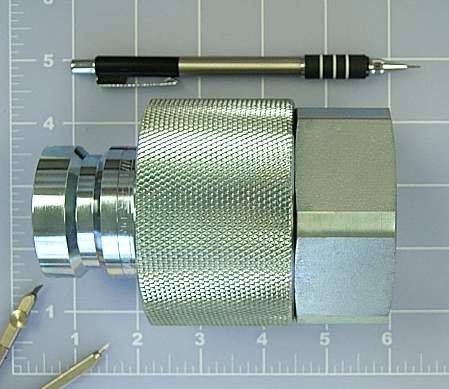

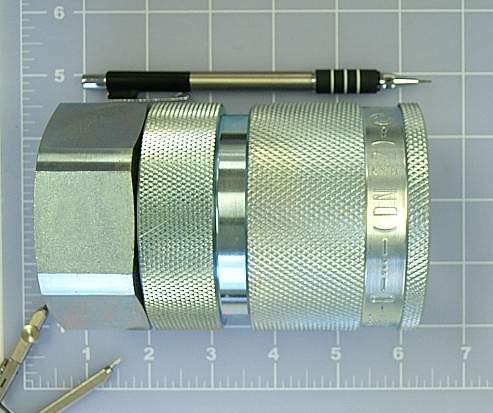

NPT(F) 1-1/2" LP-032-0-NP548-.. LP-032-4-NP548-.. LP-032-2-NP548-.. LP-032-1-NP548-..
NPT(F) 2" LP-032-0-NP560-.. LP-032-4-NP560-.. LP-032-2-NP560-.. LP-032-1-NP560-..
DIN 7631, M14 x 1.5mm with 60° Female cone (usually to fit hoses with metric swivel nuts)
End fitting Self-sealing Coupling Thru Coupling Self-sealing Nipple Thru Nipple
M45 x 1.5 LP-032-0-D3245-.. -- LP-032-2-D3245-.. --
EO (Ermeto) to fit tube & ferrule
End fitting Self-sealing Coupling Thru Coupling Self-sealing Nipple Thru Nipple

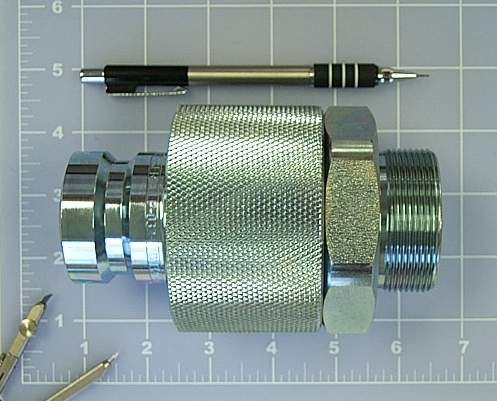

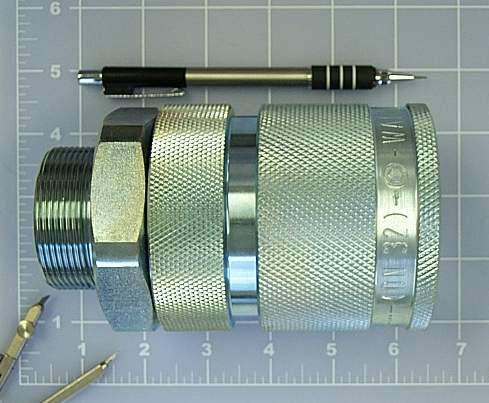

M52 x 2.0 38mm OD tube (Heavy) LP-032-0-S3852-.. -- LP-032-2-S3852-.. --
Hose barbs
End fitting Self-sealing Coupling Thru Coupling Self-sealing Nipple Thru Nipple

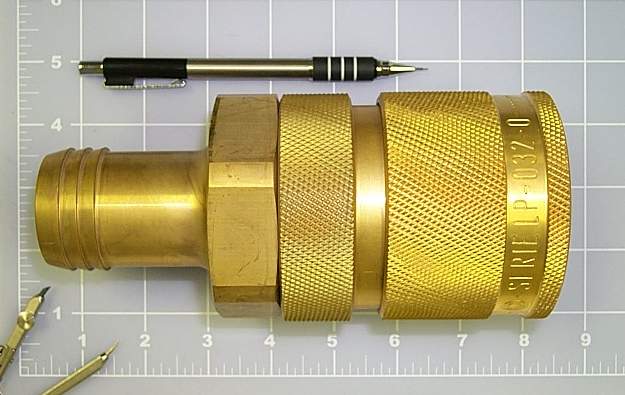

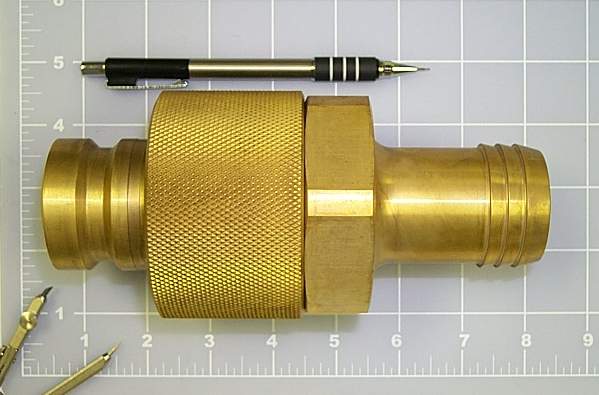

Hose Barb 1-5/8" (42mm) LP-032-0-SL042-.. LP-032-4-SL042-.. LP-032-2-SL042-.. LP-032-1-SL042-..
Hose Barb 2-1/8" (53mm) LP-032-0-SL053-.. LP-032-4-SL053-.. LP-032-2-SL053-.. --

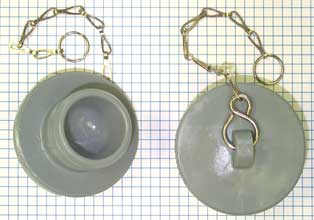

Dust Caps & Dust Plugs - Part numbers for Series LP-032

Material Plugs for Couplings (Female side) Caps for Adapters (Male side)
Non-pressure retaining1 LP-032-6-74-KK
 LP-032-5-74-KK
Pressure retaining2 LP-032-6-11 LP-032-5-11-1 (Nitrile)LP-032-5-11-2 (Viton)LP-032-5-11-4 (EPDM)

* Plugs and caps are available for both self-sealing & thru-type couplings and adapters.1. Soft PVC (grey); nickel-plated steel chain and retaining ring2. Zinc-plated steel body, nickel-plated steel chain and retaining ring

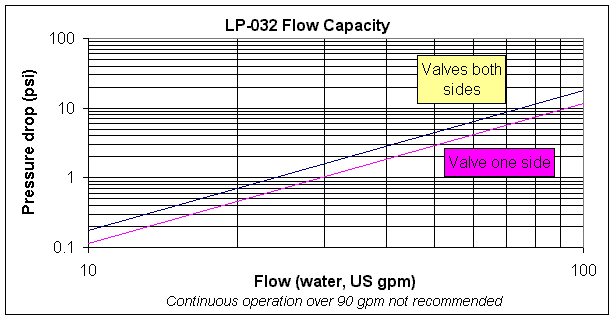

Flow Capacity

Flow Capacity for LP-032

Maxbar logo

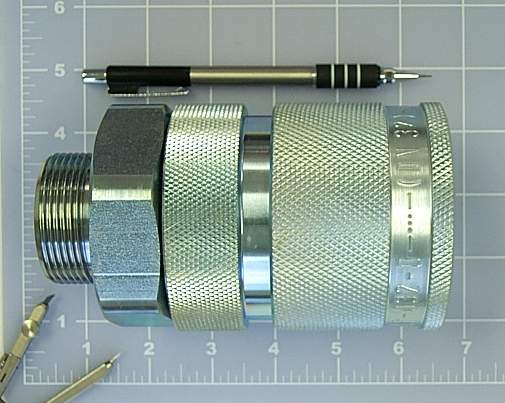

1-1/2" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-032-0-WR048-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-WR048-11-1
 LP-032-0-WR048-11-2
 LP-032-0-WR048-11-4
 LP-032-0-WR048-11

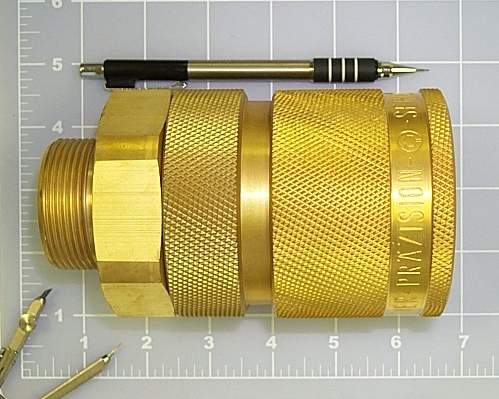

Brass, passivated LP-032-0-WR048-21-1
 LP-032-0-WR048-21-2
 LP-032-0-WR048-21-4
 LP-032-0-WR048-21
Brass, chrome plated LP-032-0-WR048-22-1
 LP-032-0-WR048-22-2
 LP-032-0-WR048-22-4
 --
Steel, 316 stainless LP-032-0-WR048-01-1
 LP-032-0-WR048-01-2
 LP-032-0-WR048-01-4
 --
Aluminum, anodized LP-032-0-WR048-31-1
 LP-032-0-WR048-31-2
 LP-032-0-WR048-31-4
 --
Steel, electroless nickel pl. LP-032-0-WR048-13-1
 LP-032-0-WR048-13-2
 LP-032-0-WR048-13-4
 --
Brass, electroless nickel pl. LP-032-0-WR048-24-1
 LP-032-0-WR048-24-2
 LP-032-0-WR048-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

1-1/2" BSPP(M), Thru type Coupling

Partial Part Number: LP-032-4-WR048-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-WR048-11-1
 LP-032-4-WR048-11-2
 LP-032-4-WR048-11-4
 --
Brass, passivated LP-032-4-WR048-21-1
 LP-032-4-WR048-21-2
 LP-032-4-WR048-21-4
 --
Brass, chrome plated LP-032-4-WR048-22-1
 LP-032-4-WR048-22-2
 LP-032-4-WR048-22-4
 --
Steel, 316 stainless LP-032-4-WR048-01-1
 LP-032-4-WR048-01-2
 LP-032-4-WR048-01-4
 --
Aluminum, anodized LP-032-4-WR048-31-1
 LP-032-4-WR048-31-2
 LP-032-4-WR048-31-4
 --
Steel, electroless nickel pl. LP-032-4-WR048-13-1
 LP-032-4-WR048-13-2
 LP-032-4-WR048-13-4
 --
Brass, electroless nickel pl. LP-032-4-WR048-24-1
 LP-032-4-WR048-24-2
 LP-032-4-WR048-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

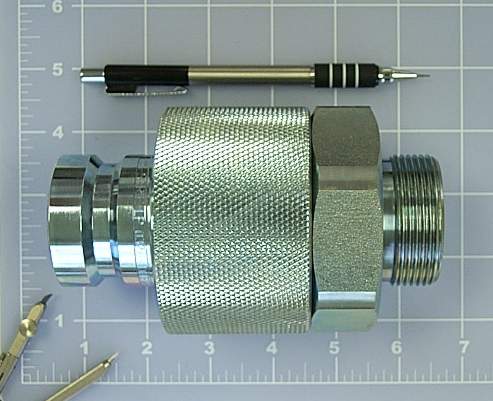

1-1/2" BSPP(M), Self-sealing Nipple

Partial Part Number: LP-032-2-WR048-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-WR048-11-1
 LP-032-2-WR048-11-2
 LP-032-2-WR048-11-4
 LP-032-2-WR048-11
Brass, passivated LP-032-2-WR048-21-1
 LP-032-2-WR048-21-2
 LP-032-2-WR048-21-4
 LP-032-2-WR048-21
Brass, chrome plated LP-032-2-WR048-22-1
 LP-032-2-WR048-22-2
 LP-032-2-WR048-22-4
 --
Steel, 316 stainless LP-032-2-WR048-01-1
 LP-032-2-WR048-01-2
 LP-032-2-WR048-01-4
 --
Aluminum, anodized LP-032-2-WR048-31-1
 LP-032-2-WR048-31-2
 LP-032-2-WR048-31-4
 --
Steel, electroless nickel pl. LP-032-2-WR048-13-1
 LP-032-2-WR048-13-2
 LP-032-2-WR048-13-4
 --
Brass, electroless nickel pl. LP-032-2-WR048-24-1
 LP-032-2-WR048-24-2
 LP-032-2-WR048-24-4
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

1-1/2" BSPP(M), Thru type Nipple

Partial Part Number: LP-032-1-WR048-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-032-1-WR048-11
 --
Brass, passivated LP-032-1-WR048-21
 --
Brass, chrome plated LP-032-1-WR048-22
 --
Steel, 316 stainless LP-032-1-WR048-01
 --
Steel, electroless nickel pl. LP-032-1-WR048-13
 --
Brass, electroless nickel pl. LP-032-1-WR048-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

2" BSPP(M), Self-sealing Coupling

Partial Part Number: LP-032-0-WR060-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-WR060-11-1
 LP-032-0-WR060-11-2
 LP-032-0-WR060-11-4
 --
Brass, passivated LP-032-0-WR060-21-1
 LP-032-0-WR060-21-2
 LP-032-0-WR060-21-4
 --
Brass, chrome plated LP-032-0-WR060-22-1
 LP-032-0-WR060-22-2
 LP-032-0-WR060-22-4
 --
Steel, 316 stainless LP-032-0-WR060-01-1
 LP-032-0-WR060-01-2
 LP-032-0-WR060-01-4
 --
Aluminum, anodized LP-032-0-WR060-31-1
 LP-032-0-WR060-31-2
 LP-032-0-WR060-31-4
 --
Steel, electroless nickel pl. LP-032-0-WR060-13-1
 LP-032-0-WR060-13-2
 LP-032-0-WR060-13-4
 --
Brass, electroless nickel pl. LP-032-0-WR060-24-1
 LP-032-0-WR060-24-2
 LP-032-0-WR060-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

2" BSPP(M), Thru type Coupling

Partial Part Number: LP-032-4-WR060-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-WR060-11-1
 LP-032-4-WR060-11-2
 LP-032-4-WR060-11-4
 --
Brass, passivated LP-032-4-WR060-21-1
 LP-032-4-WR060-21-2
 LP-032-4-WR060-21-4
 --
Brass, chrome plated LP-032-4-WR060-22-1
 LP-032-4-WR060-22-2
 LP-032-4-WR060-22-4
 --
Steel, 316 stainless LP-032-4-WR060-01-1
 LP-032-4-WR060-01-2
 LP-032-4-WR060-01-4
 --
Aluminum, anodized LP-032-4-WR060-31-1
 LP-032-4-WR060-31-2
 LP-032-4-WR060-31-4
 --
Steel, electroless nickel pl. LP-032-4-WR060-13-1
 LP-032-4-WR060-13-2
 LP-032-4-WR060-13-4
 --
Brass, electroless nickel pl. LP-032-4-WR060-24-1
 LP-032-4-WR060-24-2
 LP-032-4-WR060-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

2" BSPP(M), Self-sealing Nipple

Partial Part Number: LP-032-2-WR060-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-WR060-11-1
 LP-032-2-WR060-11-2
 LP-032-2-WR060-11-4
 --
Brass, passivated LP-032-2-WR060-21-1
 LP-032-2-WR060-21-2
 LP-032-2-WR060-21-4
 --
Brass, chrome plated LP-032-2-WR060-22-1
 LP-032-2-WR060-22-2
 LP-032-2-WR060-22-4
 --
Steel, 316 stainless LP-032-2-WR060-01-1
 LP-032-2-WR060-01-2
 LP-032-2-WR060-01-4
 --
Aluminum, anodized LP-032-2-WR060-31-1
 LP-032-2-WR060-31-2
 LP-032-2-WR060-31-4
 --
Steel, electroless nickel pl. LP-032-2-WR060-13-1
 LP-032-2-WR060-13-2
 LP-032-2-WR060-13-4
 --
Brass, electroless nickel pl. LP-032-2-WR060-24-1
 LP-032-2-WR060-24-2
 LP-032-2-WR060-24-4
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

2" BSPP(M), Thru type Nipple

Partial Part Number: LP-032-1-WR060-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-032-1-WR060-11
 --
Brass, passivated LP-032-1-WR060-21
 --
Brass, chrome plated LP-032-1-WR060-22
 --
Steel, 316 stainless LP-032-1-WR060-01
 --
Steel, electroless nickel pl. LP-032-1-WR060-13
 --
Brass, electroless nickel pl. LP-032-1-WR060-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1-1/4" BSPP(F), Thru type Coupling

Partial Part Number: LP-032-4-WR542-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-WR542-11-1
 LP-032-4-WR542-11-2
 LP-032-4-WR542-11-4
 --
Brass, passivated LP-032-4-WR542-21-1
 LP-032-4-WR542-21-2
 LP-032-4-WR542-21-4
 --
Brass, chrome plated LP-032-4-WR542-22-1
 LP-032-4-WR542-22-2
 LP-032-4-WR542-22-4
 --
Steel, 316 stainless LP-032-4-WR542-01-1
 LP-032-4-WR542-01-2
 LP-032-4-WR542-01-4
 --
Aluminum, anodized LP-032-4-WR542-31-1
 LP-032-4-WR542-31-2
 LP-032-4-WR542-31-4
 --
Steel, electroless nickel pl. LP-032-4-WR542-13-1
 LP-032-4-WR542-13-2
 LP-032-4-WR542-13-4
 --
Brass, electroless nickel pl. LP-032-4-WR542-24-1
 LP-032-4-WR542-24-2
 LP-032-4-WR542-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

1-1/4" BSPP(F), Thru type Nipple

Partial Part Number: LP-032-1-WR542-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-032-1-WR542-11
 --
Brass, passivated LP-032-1-WR542-21
 --
Brass, chrome plated LP-032-1-WR542-22
 --
Steel, 316 stainless LP-032-1-WR542-01
 --
Steel, electroless nickel pl. LP-032-1-WR542-13
 --
Brass, electroless nickel pl. LP-032-1-WR542-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

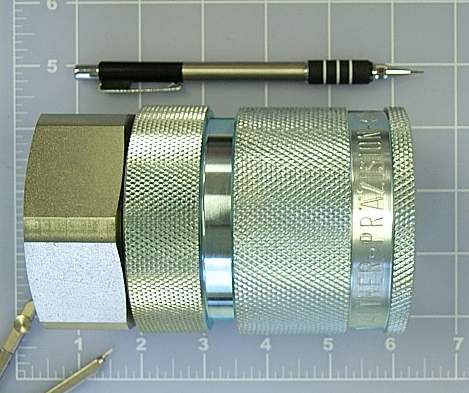

1-1/2" BSPP(F), Self-sealing Coupling

Partial Part Number: LP-032-0-WR548-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-WR548-11-1
 LP-032-0-WR548-11-2
 LP-032-0-WR548-11-4
 LP-032-0-WR548-11
Brass, passivated LP-032-0-WR548-21-1
 LP-032-0-WR548-21-2
 LP-032-0-WR548-21-4
 --
Brass, chrome plated LP-032-0-WR548-22-1
 LP-032-0-WR548-22-2
 LP-032-0-WR548-22-4
 --
Steel, 316 stainless LP-032-0-WR548-01-1
 LP-032-0-WR548-01-2
 LP-032-0-WR548-01-4
 --
Aluminum, anodized LP-032-0-WR548-31-1
 LP-032-0-WR548-31-2
 LP-032-0-WR548-31-4
 --
Steel, electroless nickel pl. LP-032-0-WR548-13-1
 LP-032-0-WR548-13-2
 LP-032-0-WR548-13-4
 --
Brass, electroless nickel pl. LP-032-0-WR548-24-1
 LP-032-0-WR548-24-2
 LP-032-0-WR548-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

1-1/2" BSPP(F), Thru type Coupling

Partial Part Number: LP-032-4-WR548-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-WR548-11-1
 LP-032-4-WR548-11-2
 LP-032-4-WR548-11-4
 --
Brass, passivated LP-032-4-WR548-21-1
 LP-032-4-WR548-21-2
 LP-032-4-WR548-21-4
 --
Brass, chrome plated LP-032-4-WR548-22-1
 LP-032-4-WR548-22-2
 LP-032-4-WR548-22-4
 --
Steel, 316 stainless LP-032-4-WR548-01-1
 LP-032-4-WR548-01-2
 LP-032-4-WR548-01-4
 --
Aluminum, anodized LP-032-4-WR548-31-1
 LP-032-4-WR548-31-2
 LP-032-4-WR548-31-4
 --
Steel, electroless nickel pl. LP-032-4-WR548-13-1
 LP-032-4-WR548-13-2
 LP-032-4-WR548-13-4
 --
Brass, electroless nickel pl. LP-032-4-WR548-24-1
 LP-032-4-WR548-24-2
 LP-032-4-WR548-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

1-1/2" BSPP(F), Self-sealing Nipple

Partial Part Number: LP-032-2-WR548-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-WR548-11-1
 LP-032-2-WR548-11-2
 LP-032-2-WR548-11-4
 LP-032-2-WR548-11
Brass, passivated LP-032-2-WR548-21-1
 LP-032-2-WR548-21-2
 LP-032-2-WR548-21-4
 --
Brass, chrome plated LP-032-2-WR548-22-1
 LP-032-2-WR548-22-2
 LP-032-2-WR548-22-4
 --
Steel, 316 stainless LP-032-2-WR548-01-1
 LP-032-2-WR548-01-2
 LP-032-2-WR548-01-4
 --
Aluminum, anodized LP-032-2-WR548-31-1
 LP-032-2-WR548-31-2
 LP-032-2-WR548-31-4
 --
Steel, electroless nickel pl. LP-032-2-WR548-13-1
 LP-032-2-WR548-13-2
 LP-032-2-WR548-13-4
 --
Brass, electroless nickel pl. LP-032-2-WR548-24-1
 LP-032-2-WR548-24-2
 LP-032-2-WR548-24-4
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

1-1/2" BSPP(F), Thru type Nipple

Partial Part Number: LP-032-1-WR548-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-032-1-WR548-11
 --
Brass, passivated LP-032-1-WR548-21
 --
Brass, chrome plated LP-032-1-WR548-22
 --
Steel, 316 stainless LP-032-1-WR548-01
 --
Steel, electroless nickel pl. LP-032-1-WR548-13
 --
Brass, electroless nickel pl. LP-032-1-WR548-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

2" BSPP(F), Self-sealing Coupling

Partial Part Number: LP-032-0-WR560-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-WR560-11-1
 LP-032-0-WR560-11-2
 LP-032-0-WR560-11-4
 --
Brass, passivated LP-032-0-WR560-21-1
 LP-032-0-WR560-21-2
 LP-032-0-WR560-21-4
 --
Brass, chrome plated LP-032-0-WR560-22-1
 LP-032-0-WR560-22-2
 LP-032-0-WR560-22-4
 --
Steel, 316 stainless LP-032-0-WR560-01-1
 LP-032-0-WR560-01-2
 LP-032-0-WR560-01-4
 --
Aluminum, anodized LP-032-0-WR560-31-1
 LP-032-0-WR560-31-2
 LP-032-0-WR560-31-4
 --
Steel, electroless nickel pl. LP-032-0-WR560-13-1
 LP-032-0-WR560-13-2
 LP-032-0-WR560-13-4
 --
Brass, electroless nickel pl. LP-032-0-WR560-24-1
 LP-032-0-WR560-24-2
 LP-032-0-WR560-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

2" BSPP(F), Thru type Coupling

Partial Part Number: LP-032-4-WR560-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-WR560-11-1
 LP-032-4-WR560-11-2
 LP-032-4-WR560-11-4
 --
Brass, passivated LP-032-4-WR560-21-1
 LP-032-4-WR560-21-2
 LP-032-4-WR560-21-4
 --
Brass, chrome plated LP-032-4-WR560-22-1
 LP-032-4-WR560-22-2
 LP-032-4-WR560-22-4
 --
Steel, 316 stainless LP-032-4-WR560-01-1
 LP-032-4-WR560-01-2
 LP-032-4-WR560-01-4
 --
Aluminum, anodized LP-032-4-WR560-31-1
 LP-032-4-WR560-31-2
 LP-032-4-WR560-31-4
 --
Steel, electroless nickel pl. LP-032-4-WR560-13-1
 LP-032-4-WR560-13-2
 LP-032-4-WR560-13-4
 --
Brass, electroless nickel pl. LP-032-4-WR560-24-1
 LP-032-4-WR560-24-2
 LP-032-4-WR560-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

2" BSPP(F), Self-sealing Nipple

Partial Part Number: LP-032-2-WR560-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-WR560-11-1
 LP-032-2-WR560-11-2
 LP-032-2-WR560-11-4
 --
Brass, passivated LP-032-2-WR560-21-1
 LP-032-2-WR560-21-2
 LP-032-2-WR560-21-4
 --
Brass, chrome plated LP-032-2-WR560-22-1
 LP-032-2-WR560-22-2
 LP-032-2-WR560-22-4
 --
Steel, 316 stainless LP-032-2-WR560-01-1
 LP-032-2-WR560-01-2
 LP-032-2-WR560-01-4
 --
Aluminum, anodized LP-032-2-WR560-31-1
 LP-032-2-WR560-31-2
 LP-032-2-WR560-31-4
 --
Steel, electroless nickel pl. LP-032-2-WR560-13-1
 LP-032-2-WR560-13-2
 LP-032-2-WR560-13-4
 --
Brass, electroless nickel pl. LP-032-2-WR560-24-1
 LP-032-2-WR560-24-2
 LP-032-2-WR560-24-4
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

2" BSPP(F), Thru type Nipple

Partial Part Number: LP-032-1-WR560-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-032-1-WR560-11
 --
Brass, passivated LP-032-1-WR560-21
 --
Brass, chrome plated LP-032-1-WR560-22
 --
Steel, 316 stainless LP-032-1-WR560-01
 --
Steel, electroless nickel pl. LP-032-1-WR560-13
 --
Brass, electroless nickel pl. LP-032-1-WR560-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1-1/2" NPT(M), Self-sealing Coupling

Partial Part Number: LP-032-0-NP048-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-NP048-11-1
 LP-032-0-NP048-11-2
 LP-032-0-NP048-11-4
 --
Brass, passivated LP-032-0-NP048-21-1
 LP-032-0-NP048-21-2
 LP-032-0-NP048-21-4
 --
Brass, chrome plated LP-032-0-NP048-22-1
 LP-032-0-NP048-22-2
 LP-032-0-NP048-22-4
 --
Steel, 316 stainless LP-032-0-NP048-01-1
 LP-032-0-NP048-01-2
 LP-032-0-NP048-01-4
 --
Aluminum, anodized LP-032-0-NP048-31-1
 LP-032-0-NP048-31-2
 LP-032-0-NP048-31-4
 --
Steel, electroless nickel pl. LP-032-0-NP048-13-1
 LP-032-0-NP048-13-2
 LP-032-0-NP048-13-4
 --
Brass, electroless nickel pl. LP-032-0-NP048-24-1
 LP-032-0-NP048-24-2
 LP-032-0-NP048-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

1-1/2" NPT(M), Thru type Coupling

Partial Part Number: LP-032-4-NP048-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-NP048-11-1
 LP-032-4-NP048-11-2
 LP-032-4-NP048-11-4
 --
Brass, passivated LP-032-4-NP048-21-1
 LP-032-4-NP048-21-2
 LP-032-4-NP048-21-4
 --
Brass, chrome plated LP-032-4-NP048-22-1
 LP-032-4-NP048-22-2
 LP-032-4-NP048-22-4
 --
Steel, 316 stainless LP-032-4-NP048-01-1
 LP-032-4-NP048-01-2
 LP-032-4-NP048-01-4
 --
Aluminum, anodized LP-032-4-NP048-31-1
 LP-032-4-NP048-31-2
 LP-032-4-NP048-31-4
 --
Steel, electroless nickel pl. LP-032-4-NP048-13-1
 LP-032-4-NP048-13-2
 LP-032-4-NP048-13-4
 --
Brass, electroless nickel pl. LP-032-4-NP048-24-1
 LP-032-4-NP048-24-2
 LP-032-4-NP048-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

1-1/2" NPT(M), Self-sealing Nipple

Partial Part Number: LP-032-2-NP048-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-NP048-11-1
 LP-032-2-NP048-11-2
 LP-032-2-NP048-11-4
 --
Brass, passivated LP-032-2-NP048-21-1
 LP-032-2-NP048-21-2
 LP-032-2-NP048-21-4
 --
Brass, chrome plated LP-032-2-NP048-22-1
 LP-032-2-NP048-22-2
 LP-032-2-NP048-22-4
 --
Steel, 316 stainless LP-032-2-NP048-01-1
 LP-032-2-NP048-01-2
 LP-032-2-NP048-01-4
 --
Aluminum, anodized LP-032-2-NP048-31-1
 LP-032-2-NP048-31-2
 LP-032-2-NP048-31-4
 --
Steel, electroless nickel pl. LP-032-2-NP048-13-1
 LP-032-2-NP048-13-2
 LP-032-2-NP048-13-4
 --
Brass, electroless nickel pl. LP-032-2-NP048-24-1
 LP-032-2-NP048-24-2
 LP-032-2-NP048-24-4
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

1-1/2" NPT(M), Thru type Nipple

Partial Part Number: LP-032-1-NP048-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-032-1-NP048-11
 --
Brass, passivated LP-032-1-NP048-21
 --
Brass, chrome plated LP-032-1-NP048-22
 --
Steel, 316 stainless LP-032-1-NP048-01
 --
Steel, electroless nickel pl. LP-032-1-NP048-13
 --
Brass, electroless nickel pl. LP-032-1-NP048-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

2" NPT(M), Self-sealing Coupling

Partial Part Number: LP-032-0-NP060-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-NP060-11-1
 LP-032-0-NP060-11-2
 LP-032-0-NP060-11-4
 --
Brass, passivated LP-032-0-NP060-21-1
 LP-032-0-NP060-21-2
 LP-032-0-NP060-21-4
 --
Brass, chrome plated LP-032-0-NP060-22-1
 LP-032-0-NP060-22-2
 LP-032-0-NP060-22-4
 --
Steel, 316 stainless LP-032-0-NP060-01-1
 LP-032-0-NP060-01-2
 LP-032-0-NP060-01-4
 --
Aluminum, anodized LP-032-0-NP060-31-1
 LP-032-0-NP060-31-2
 LP-032-0-NP060-31-4
 --
Steel, electroless nickel pl. LP-032-0-NP060-13-1
 LP-032-0-NP060-13-2
 LP-032-0-NP060-13-4
 --
Brass, electroless nickel pl. LP-032-0-NP060-24-1
 LP-032-0-NP060-24-2
 LP-032-0-NP060-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

2" NPT(M), Thru type Coupling

Partial Part Number: LP-032-4-NP060-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-NP060-11-1
 LP-032-4-NP060-11-2
 LP-032-4-NP060-11-4
 --
Brass, passivated LP-032-4-NP060-21-1
 LP-032-4-NP060-21-2
 LP-032-4-NP060-21-4
 --
Brass, chrome plated LP-032-4-NP060-22-1
 LP-032-4-NP060-22-2
 LP-032-4-NP060-22-4
 --
Steel, 316 stainless LP-032-4-NP060-01-1
 LP-032-4-NP060-01-2
 LP-032-4-NP060-01-4
 --
Aluminum, anodized LP-032-4-NP060-31-1
 LP-032-4-NP060-31-2
 LP-032-4-NP060-31-4
 --
Steel, electroless nickel pl. LP-032-4-NP060-13-1
 LP-032-4-NP060-13-2
 LP-032-4-NP060-13-4
 --
Brass, electroless nickel pl. LP-032-4-NP060-24-1
 LP-032-4-NP060-24-2
 LP-032-4-NP060-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

2" NPT(M), Self-sealing Nipple

Partial Part Number: LP-032-2-NP060-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-NP060-11-1
 LP-032-2-NP060-11-2
 LP-032-2-NP060-11-4
 --
Brass, passivated LP-032-2-NP060-21-1
 LP-032-2-NP060-21-2
 LP-032-2-NP060-21-4
 --
Brass, chrome plated LP-032-2-NP060-22-1
 LP-032-2-NP060-22-2
 LP-032-2-NP060-22-4
 --
Steel, 316 stainless LP-032-2-NP060-01-1
 LP-032-2-NP060-01-2
 LP-032-2-NP060-01-4
 --
Aluminum, anodized LP-032-2-NP060-31-1
 LP-032-2-NP060-31-2
 LP-032-2-NP060-31-4
 --
Steel, electroless nickel pl. LP-032-2-NP060-13-1
 LP-032-2-NP060-13-2
 LP-032-2-NP060-13-4
 --
Brass, electroless nickel pl. LP-032-2-NP060-24-1
 LP-032-2-NP060-24-2
 LP-032-2-NP060-24-4
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

2" NPT(M), Thru type Nipple

Partial Part Number: LP-032-1-NP060-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-032-1-NP060-11
 --
Brass, passivated LP-032-1-NP060-21
 --
Brass, chrome plated LP-032-1-NP060-22
 --
Steel, 316 stainless LP-032-1-NP060-01
 --
Steel, electroless nickel pl. LP-032-1-NP060-13
 --
Brass, electroless nickel pl. LP-032-1-NP060-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1-1/4" NPT(F), Thru type Coupling

Partial Part Number: LP-032-4-NP542-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-NP542-11-1
 LP-032-4-NP542-11-2
 LP-032-4-NP542-11-4
 --
Brass, passivated LP-032-4-NP542-21-1
 LP-032-4-NP542-21-2
 LP-032-4-NP542-21-4
 --
Brass, chrome plated LP-032-4-NP542-22-1
 LP-032-4-NP542-22-2
 LP-032-4-NP542-22-4
 --
Steel, 316 stainless LP-032-4-NP542-01-1
 LP-032-4-NP542-01-2
 LP-032-4-NP542-01-4
 --
Aluminum, anodized LP-032-4-NP542-31-1
 LP-032-4-NP542-31-2
 LP-032-4-NP542-31-4
 --
Steel, electroless nickel pl. LP-032-4-NP542-13-1
 LP-032-4-NP542-13-2
 LP-032-4-NP542-13-4
 --
Brass, electroless nickel pl. LP-032-4-NP542-24-1
 LP-032-4-NP542-24-2
 LP-032-4-NP542-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

1-1/4" NPT(F), Thru type Nipple

Partial Part Number: LP-032-1-NP542-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-032-1-NP542-11
 --
Brass, passivated LP-032-1-NP542-21
 --
Brass, chrome plated LP-032-1-NP542-22
 --
Steel, 316 stainless LP-032-1-NP542-01
 --
Steel, electroless nickel pl. LP-032-1-NP542-13
 --
Brass, electroless nickel pl. LP-032-1-NP542-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

1-1/2" NPT(F), Self-sealing Coupling

Partial Part Number: LP-032-0-NP548-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-NP548-11-1
 LP-032-0-NP548-11-2
 LP-032-0-NP548-11-4
 LP-032-0-NP548-11
Brass, passivated LP-032-0-NP548-21-1
 LP-032-0-NP548-21-2
 LP-032-0-NP548-21-4
 --
Brass, chrome plated LP-032-0-NP548-22-1
 LP-032-0-NP548-22-2
 LP-032-0-NP548-22-4
 --
Steel, 316 stainless LP-032-0-NP548-01-1
 LP-032-0-NP548-01-2
 LP-032-0-NP548-01-4
 --
Aluminum, anodized LP-032-0-NP548-31-1
 LP-032-0-NP548-31-2
 LP-032-0-NP548-31-4
 --
Steel, electroless nickel pl. LP-032-0-NP548-13-1
 LP-032-0-NP548-13-2
 LP-032-0-NP548-13-4
 --
Brass, electroless nickel pl. LP-032-0-NP548-24-1
 LP-032-0-NP548-24-2
 LP-032-0-NP548-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

1-1/2" NPT(F), Thru type Coupling

Partial Part Number: LP-032-4-NP548-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-NP548-11-1
 LP-032-4-NP548-11-2
 LP-032-4-NP548-11-4
 --
Brass, passivated LP-032-4-NP548-21-1
 LP-032-4-NP548-21-2
 LP-032-4-NP548-21-4
 --
Brass, chrome plated LP-032-4-NP548-22-1
 LP-032-4-NP548-22-2
 LP-032-4-NP548-22-4
 --
Steel, 316 stainless LP-032-4-NP548-01-1
 LP-032-4-NP548-01-2
 LP-032-4-NP548-01-4
 --
Aluminum, anodized LP-032-4-NP548-31-1
 LP-032-4-NP548-31-2
 LP-032-4-NP548-31-4
 --
Steel, electroless nickel pl. LP-032-4-NP548-13-1
 LP-032-4-NP548-13-2
 LP-032-4-NP548-13-4
 --
Brass, electroless nickel pl. LP-032-4-NP548-24-1
 LP-032-4-NP548-24-2
 LP-032-4-NP548-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

1-1/2" NPT(F), Self-sealing Nipple

Partial Part Number: LP-032-2-NP548-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-NP548-11-1
 LP-032-2-NP548-11-2
 LP-032-2-NP548-11-4
 LP-032-2-NP548-11
Brass, passivated LP-032-2-NP548-21-1
 LP-032-2-NP548-21-2
 LP-032-2-NP548-21-4
 --
Brass, chrome plated LP-032-2-NP548-22-1
 LP-032-2-NP548-22-2
 LP-032-2-NP548-22-4
 --
Steel, 316 stainless LP-032-2-NP548-01-1
 LP-032-2-NP548-01-2
 LP-032-2-NP548-01-4
 --
Aluminum, anodized LP-032-2-NP548-31-1
 LP-032-2-NP548-31-2
 LP-032-2-NP548-31-4
 --
Steel, electroless nickel pl. LP-032-2-NP548-13-1
 LP-032-2-NP548-13-2
 LP-032-2-NP548-13-4
 --
Brass, electroless nickel pl. LP-032-2-NP548-24-1
 LP-032-2-NP548-24-2
 LP-032-2-NP548-24-4
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

1-1/2" NPT(F), Thru type Nipple

Partial Part Number: LP-032-1-NP548-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-032-1-NP548-11
 --
Brass, passivated LP-032-1-NP548-21
 --
Brass, chrome plated LP-032-1-NP548-22
 --
Steel, 316 stainless LP-032-1-NP548-01
 --
Steel, electroless nickel pl. LP-032-1-NP548-13
 --
Brass, electroless nickel pl. LP-032-1-NP548-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

2" NPT(F), Self-sealing Coupling

Partial Part Number: LP-032-0-NP560-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-NP560-11-1
 LP-032-0-NP560-11-2
 LP-032-0-NP560-11-4
 --
Brass, passivated LP-032-0-NP560-21-1
 LP-032-0-NP560-21-2
 LP-032-0-NP560-21-4
 --
Brass, chrome plated LP-032-0-NP560-22-1
 LP-032-0-NP560-22-2
 LP-032-0-NP560-22-4
 --
Steel, 316 stainless LP-032-0-NP560-01-1
 LP-032-0-NP560-01-2
 LP-032-0-NP560-01-4
 --
Aluminum, anodized LP-032-0-NP560-31-1
 LP-032-0-NP560-31-2
 LP-032-0-NP560-31-4
 --
Steel, electroless nickel pl. LP-032-0-NP560-13-1
 LP-032-0-NP560-13-2
 LP-032-0-NP560-13-4
 --
Brass, electroless nickel pl. LP-032-0-NP560-24-1
 LP-032-0-NP560-24-2
 LP-032-0-NP560-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

2" NPT(F), Thru type Coupling

Partial Part Number: LP-032-4-NP560-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-NP560-11-1
 LP-032-4-NP560-11-2
 LP-032-4-NP560-11-4
 --
Brass, passivated LP-032-4-NP560-21-1
 LP-032-4-NP560-21-2
 LP-032-4-NP560-21-4
 --
Brass, chrome plated LP-032-4-NP560-22-1
 LP-032-4-NP560-22-2
 LP-032-4-NP560-22-4
 --
Steel, 316 stainless LP-032-4-NP560-01-1
 LP-032-4-NP560-01-2
 LP-032-4-NP560-01-4
 --
Aluminum, anodized LP-032-4-NP560-31-1
 LP-032-4-NP560-31-2
 LP-032-4-NP560-31-4
 --
Steel, electroless nickel pl. LP-032-4-NP560-13-1
 LP-032-4-NP560-13-2
 LP-032-4-NP560-13-4
 --
Brass, electroless nickel pl. LP-032-4-NP560-24-1
 LP-032-4-NP560-24-2
 LP-032-4-NP560-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

2" NPT(F), Self-sealing Nipple

Partial Part Number: LP-032-2-NP560-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-NP560-11-1
 LP-032-2-NP560-11-2
 LP-032-2-NP560-11-4
 --
Brass, passivated LP-032-2-NP560-21-1
 LP-032-2-NP560-21-2
 LP-032-2-NP560-21-4
 --
Brass, chrome plated LP-032-2-NP560-22-1
 LP-032-2-NP560-22-2
 LP-032-2-NP560-22-4
 --
Steel, 316 stainless LP-032-2-NP560-01-1
 LP-032-2-NP560-01-2
 LP-032-2-NP560-01-4
 --
Aluminum, anodized LP-032-2-NP560-31-1
 LP-032-2-NP560-31-2
 LP-032-2-NP560-31-4
 --
Steel, electroless nickel pl. LP-032-2-NP560-13-1
 LP-032-2-NP560-13-2
 LP-032-2-NP560-13-4
 --
Brass, electroless nickel pl. LP-032-2-NP560-24-1
 LP-032-2-NP560-24-2
 LP-032-2-NP560-24-4
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

2" NPT(F), Thru type Nipple

Partial Part Number: LP-032-1-NP560-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-032-1-NP560-11
 --
Brass, passivated LP-032-1-NP560-21
 --
Brass, chrome plated LP-032-1-NP560-22
 --
Steel, 316 stainless LP-032-1-NP560-01
 --
Steel, electroless nickel pl. LP-032-1-NP560-13
 --
Brass, electroless nickel pl. LP-032-1-NP560-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

M45 x 1.5 w/60° F cone, Self-sealing Coupling

Partial Part Number: LP-032-0-D3245-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-D3245-11-1
 LP-032-0-D3245-11-2
 LP-032-0-D3245-11-4
 --
Steel, 316 stainless LP-032-0-D3245-01-1
 LP-032-0-D3245-01-2
 LP-032-0-D3245-01-4
 --
Aluminum, anodized LP-032-0-D3245-31-1
 LP-032-0-D3245-31-2
 LP-032-0-D3245-31-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

M45 x 1.5 w/60° F cone, Self-sealing Nipple

Partial Part Number: LP-032-2-D3245-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-D3245-11-1
 LP-032-2-D3245-11-2
 LP-032-2-D3245-11-4
 --
Steel, 316 stainless LP-032-2-D3245-01-1
 LP-032-2-D3245-01-2
 LP-032-2-D3245-01-4
 --
Aluminum, anodized LP-032-2-D3245-31-1
 LP-032-2-D3245-31-2
 LP-032-2-D3245-31-4
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

M52 x 2.0 38mm tube OD (Heavy), Self-sealing Coupling

Partial Part Number: LP-032-0-S3852-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-S3852-11-1
 LP-032-0-S3852-11-2
 LP-032-0-S3852-11-4
 LP-032-0-S3852-11
Steel, 316 stainless LP-032-0-S3852-01-1
 LP-032-0-S3852-01-2
 LP-032-0-S3852-01-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

M52 x 2.0 38mm tube OD (Heavy), Self-sealing Nipple

Partial Part Number: LP-032-2-S3852-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-S3852-11-1
 LP-032-2-S3852-11-2
 LP-032-2-S3852-11-4
 LP-032-2-S3852-11
Steel, 316 stainless LP-032-2-S3852-01-1
 LP-032-2-S3852-01-2
 LP-032-2-S3852-01-4
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

1-5/8" Hose Barb (42mm), Self-sealing Coupling

Partial Part Number: LP-032-0-SL042-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-SL042-11-1
 LP-032-0-SL042-11-2
 LP-032-0-SL042-11-4
 --
Brass, passivated LP-032-0-SL042-21-1
 LP-032-0-SL042-21-2
 LP-032-0-SL042-21-4
 LP-032-0-SL042-21
Brass, chrome plated LP-032-0-SL042-22-1
 LP-032-0-SL042-22-2
 LP-032-0-SL042-22-4
 --
Steel, 316 stainless LP-032-0-SL042-01-1
 LP-032-0-SL042-01-2
 LP-032-0-SL042-01-4
 --
Aluminum, anodized LP-032-0-SL042-31-1
 LP-032-0-SL042-31-2
 LP-032-0-SL042-31-4
 --
Steel, electroless nickel pl. LP-032-0-SL042-13-1
 LP-032-0-SL042-13-2
 LP-032-0-SL042-13-4
 --
Brass, electroless nickel pl. LP-032-0-SL042-24-1
 LP-032-0-SL042-24-2
 LP-032-0-SL042-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

1-5/8" Hose Barb (42mm), Thru type Coupling

Partial Part Number: LP-032-4-SL042-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-SL042-11-1
 LP-032-4-SL042-11-2
 LP-032-4-SL042-11-4
 --
Brass, passivated LP-032-4-SL042-21-1
 LP-032-4-SL042-21-2
 LP-032-4-SL042-21-4
 --
Brass, chrome plated LP-032-4-SL042-22-1
 LP-032-4-SL042-22-2
 LP-032-4-SL042-22-4
 --
Steel, 316 stainless LP-032-4-SL042-01-1
 LP-032-4-SL042-01-2
 LP-032-4-SL042-01-4
 --
Aluminum, anodized LP-032-4-SL042-31-1
 LP-032-4-SL042-31-2
 LP-032-4-SL042-31-4
 --
Steel, electroless nickel pl. LP-032-4-SL042-13-1
 LP-032-4-SL042-13-2
 LP-032-4-SL042-13-4
 --
Brass, electroless nickel pl. LP-032-4-SL042-24-1
 LP-032-4-SL042-24-2
 LP-032-4-SL042-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

1-5/8" Hose Barb (42mm), Self-sealing Nipple

Partial Part Number: LP-032-2-SL042-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-SL042-11-1
 LP-032-2-SL042-11-2
 LP-032-2-SL042-11-4
 --
Brass, passivated LP-032-2-SL042-21-1
 LP-032-2-SL042-21-2
 LP-032-2-SL042-21-4
 LP-032-2-SL042-21
Brass, chrome plated LP-032-2-SL042-22-1
 LP-032-2-SL042-22-2
 LP-032-2-SL042-22-4
 --
Steel, 316 stainless LP-032-2-SL042-01-1
 LP-032-2-SL042-01-2
 LP-032-2-SL042-01-4
 --
Aluminum, anodized LP-032-2-SL042-31-1
 LP-032-2-SL042-31-2
 LP-032-2-SL042-31-4
 --
Steel, electroless nickel pl. LP-032-2-SL042-13-1
 LP-032-2-SL042-13-2
 LP-032-2-SL042-13-4
 --
Brass, electroless nickel pl. LP-032-2-SL042-24-1
 LP-032-2-SL042-24-2
 LP-032-2-SL042-24-4
 --
Standard materials in bold. Other materials & seals available.
Maxbar logo

1-5/8" Hose Barb (42mm), Thru type Nipple

Partial Part Number: LP-032-1-SL042-..

Find complete part numbers below:

Material Part Number Click to Enlarge
Steel, zinc plated LP-032-1-SL042-11
 --
Brass, passivated LP-032-1-SL042-21
 --
Brass, chrome plated LP-032-1-SL042-22
 --
Steel, 316 stainless LP-032-1-SL042-01
 --
Aluminum, anodized LP-032-1-SL042-31
 --
Steel, electroless nickel pl. LP-032-1-SL042-13
 --
Brass, electroless nickel pl. LP-032-1-SL042-24
 --
Standard materials in bold. Other materials available.
Maxbar logo

2-1/8" Hose Barb (53mm), Self-sealing Coupling

Partial Part Number: LP-032-0-SL053-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-0-SL053-11-1
 LP-032-0-SL053-11-2
 LP-032-0-SL053-11-4
 --
Brass, passivated LP-032-0-SL053-21-1
 LP-032-0-SL053-21-2
 LP-032-0-SL053-21-4
 --
Brass, chrome plated LP-032-0-SL053-22-1
 LP-032-0-SL053-22-2
 LP-032-0-SL053-22-4
 --
Steel, 316 stainless LP-032-0-SL053-01-1
 LP-032-0-SL053-01-2
 LP-032-0-SL053-01-4
 --
Aluminum, anodized LP-032-0-SL053-31-1
 LP-032-0-SL053-31-2
 LP-032-0-SL053-31-4
 --
Steel, electroless nickel pl. LP-032-0-SL053-13-1
 LP-032-0-SL053-13-2
 LP-032-0-SL053-13-4
 --
Brass, electroless nickel pl. LP-032-0-SL053-24-1
 LP-032-0-SL053-24-2
 LP-032-0-SL053-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

2-1/8" Hose Barb (53mm), Thru type Coupling

Partial Part Number: LP-032-4-SL053-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-4-SL053-11-1
 LP-032-4-SL053-11-2
 LP-032-4-SL053-11-4
 --
Brass, passivated LP-032-4-SL053-21-1
 LP-032-4-SL053-21-2
 LP-032-4-SL053-21-4
 --
Brass, chrome plated LP-032-4-SL053-22-1
 LP-032-4-SL053-22-2
 LP-032-4-SL053-22-4
 --
Steel, 316 stainless LP-032-4-SL053-01-1
 LP-032-4-SL053-01-2
 LP-032-4-SL053-01-4
 --
Aluminum, anodized LP-032-4-SL053-31-1
 LP-032-4-SL053-31-2
 LP-032-4-SL053-31-4
 --
Steel, electroless nickel pl. LP-032-4-SL053-13-1
 LP-032-4-SL053-13-2
 LP-032-4-SL053-13-4
 --
Brass, electroless nickel pl. LP-032-4-SL053-24-1
 LP-032-4-SL053-24-2
 LP-032-4-SL053-24-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
Safety locking ring -SI
Ring grips -GG
Maxbar logo

2-1/8" Hose Barb (53mm), Self-sealing Nipple

Partial Part Number: LP-032-2-SL053-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated LP-032-2-SL053-11-1
 LP-032-2-SL053-11-2
 LP-032-2-SL053-11-4
 --
Brass, passivated LP-032-2-SL053-21-1
 LP-032-2-SL053-21-2
 LP-032-2-SL053-21-4
 --
Brass, chrome plated LP-032-2-SL053-22-1
 LP-032-2-SL053-22-2
 LP-032-2-SL053-22-4
 --
Steel, 316 stainless LP-032-2-SL053-01-1
 LP-032-2-SL053-01-2
 LP-032-2-SL053-01-4
 --
Aluminum, anodized LP-032-2-SL053-31-1
 LP-032-2-SL053-31-2
 LP-032-2-SL053-31-4
 --
Steel, electroless nickel pl. LP-032-2-SL053-13-1
 LP-032-2-SL053-13-2
 LP-032-2-SL053-13-4
 --
Brass, electroless nickel pl. LP-032-2-SL053-24-1
 LP-032-2-SL053-24-2
 LP-032-2-SL053-24-4
 --
Standard materials in bold. Other materials & seals available.

Contact one of our sales representatives today
to inquire about a quote from Maxbar | Walther Precision USA
or call us today at (832) 327-0534
