Walther Coupling Model LP-06-003

Coupling Information

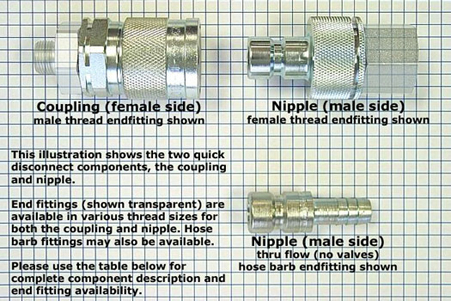

There are two basic types of LP-06-003 coupling. Part numbers for each are listed below.

Valve arrangement	The Coupling (Female side)	The Nipple (Male side)
Standard (with valves)	06-003-0-...	N/A
No valves (thru type)	Use 06-003-0-... with -OV option	06-003-1-...

Complete Part Numbers
Material	Part Number	Click to Enlarge

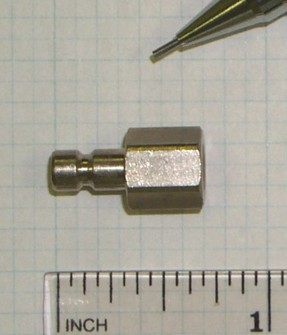

Brass, nickel plated	06-003-1-XX001-23
Standard materials in bold.

End Fittings

(Refer to Part Number System)

BSPP (British Standard Pipe, Parallel)
End fitting	Self-sealing Coupling	Thru type Nipple
BSPP(M) 1/8"	--	06-003-1-WR010-..
Metric thread
End fitting	Self-sealing Coupling	Thru type Nipple
M5(M)	06-003-0-XX001-..	06-003-1-XX001-..
M10(M)	06-003-0-XX010-..	--
M5(F)	06-003-0-XX015-..	06-003-1-XX015-..
Hose barbs
End fitting	Self-sealing Coupling	Thru type Nipple
Hose Barb 5/32" (4mm)	06-003-0-SL004-..	06-003-1-SL004-..
Barb & nut for 3mm ID x 5mm OD plastic tube	06-003-0-SW003-..	06-003-1-SW003-..
As above, bulkhead mount	06-003-0-XX017-..	--
Barb & nut for 4mm ID x 6mm OD plastic tube	06-003-0-SW004-..	06-003-1-SW004-..
As above, bulkhead mount	06-003-0-XX006-..	--

*Max. WP 3,625 psi

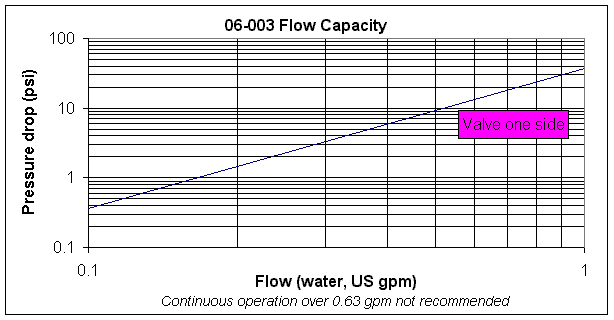

Flow Capacity

1/8" BSPP(M), Thru type Nipple

Partial Part Number: 06-003-1-WR010-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge
Brass, nickel plated	06-003-1-WR010-23
Standard materials in bold.

M5(M), Self-sealing coupling

Partial Part Number: 06-003-0-XX001-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	06-003-0-XX001-23-1	06-003-0-XX001-23-2	06-003-0-XX001-23-4
Standard materials in bold.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

M5(M), Thru type Nipple

Partial Part Number: 06-003-1-XX001-..

Find complete part numbers below:

M10(M), Self-sealing Coupling

Partial Part Number: 06-003-0-XX010-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge

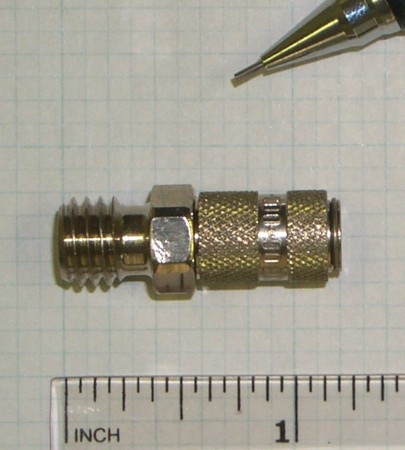

Brass, nickel plated	06-003-0-XX010-23-1	06-003-0-XX010-23-2	06-003-0-XX010-23-4
Standard materials in bold.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

M5(F), Self-sealing Coupling

Partial Part Number: 06-003-0-XX015-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	06-003-0-XX015-23-1	06-003-0-XX015-23-2	06-003-0-XX015-23-4
Standard materials in bold.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

M5(F), Thru type Nipple

Partial Part Number: 06-003-1-XX015-..

Find complete part numbers below:

Material	Part Number
Brass, nickel plated	06-003-1-XX015-23
Standard materials in bold.

5/32" Hose Barb (4mm), Self-sealing Coupling

Partial Part Number: 06-003-0-SL004-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM	Click to enlarge
Brass, nickel plated	06-003-0-SL004-23-1	06-003-0-SL004-23-2	06-003-0-SL004-23-4
Standard materials in bold.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

5/32" Hose Barb (4mm), Thru type Nipple

Partial Part Number: 06-003-1-SL004-..

Find complete part numbers below:

Material	Part Number	Click to Enlarge

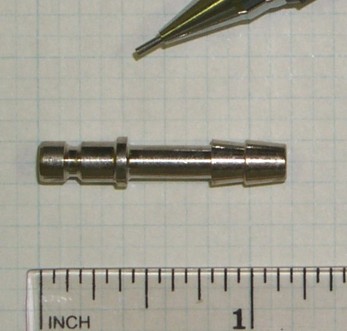

Brass, nickel plated	06-003-1-SL004-23
Standard materials in bold.

Hose barb for 3mm ID x 5mm OD plastic tube with retaining nut, Self-sealing Coupling

Partial Part Number: 06-003-0-SW003-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	06-003-0-SW003-23-1	06-003-0-SW003-23-2	06-003-0-SW003-23-4
Standard materials in bold.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV

Hose barb for 3mm ID x 5mm OD plastic tube with retaining nut, Thru type Nipple

Partial Part Number: 06-003-1-SW003-..

Find complete part numbers below:

Material	Part Number
Brass, nickel plated	06-003-1-SW003-23
Standard materials in bold.

Hose barb for 3mm ID x 5mm OD plastic tube with retaining nut, bulkhead mount, Self-sealing Coupling

Partial Part Number: 06-003-0-XX017-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	06-003-0-XX017-23-1	06-003-0-XX017-23-2	06-003-0-XX017-23-4
Standard materials in bold.

Option	Add to end of part number
No valves (omit valves)	-OV

Hose barb for 4mm ID x 6mm OD plastic tube with retaining nut, Self-sealing Coupling

Partial Part Number: 06-003-0-SW004-..-.

Find complete part numbers below:

Material	Seal Material
Material	NBR (nitrile)	FPM (Viton)	EPDM
Brass, nickel plated	06-003-0-SW004-23-1	06-003-0-SW004-23-2	06-003-0-SW004-23-4
Standard materials in bold.

Option	Add to end of part number
No valves (omit valves)	-OV

Hose barb for 4mm ID x 6mm OD plastic tube with retaining nut, Thru type Nipple

Partial Part Number: 06-003-1-SW004-..

Find complete part numbers below:

Material	Part Number
Brass, nickel plated	06-003-1-SW004-23
Standard materials in bold.

Hose barb for 4mm ID x 6mm OD plastic tube with retaining nut, bulkhead mount, Self-sealing Coupling

Partial Part Number: 06-003-0-XX006-..-.

Find complete part numbers below:

Material	Seal Material
NBR (nitrile)	FPM (Viton)	EPDM	Click to Enlarge

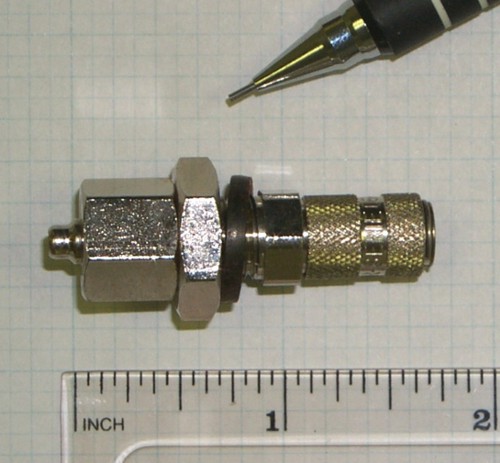

Brass, nickel plated	06-003-0-XX006-23-1	06-003-0-XX006-23-2	06-003-0-XX006-23-4
Standard materials in bold.

Material

Seal Material

NBR (nitrile)

FPM (Viton)

EPDM

Click to Enlarge

Brass, nickel plated

06-003-0-XX006-23-1

06-003-0-XX006-23-2

06-003-0-XX006-23-4

Standard materials in bold.

Find available options below:

Option	Add to end of part number
No valves (omit valves)	-OV
