Walther Coupling Model 07-003

Home » Walther Couplings » Manual Couplings: Standard » Low Pressure (LP Series) » 07-003
Need A Quote?

Coupling Information

There are two basic types of LP-07-003 coupling. Part numbers for each are listed below.

Valve arrangement The Coupling (Female side) The Nipple (Male side)
Standard (with valves) 07-003-0-... 07-003-2-...
No valves (thru type) N/A N/A
LP-07-003 Couplings

End Fittings

(Refer to Part Number System)
BSPP (British Standard Pipe, Parallel)
End fitting Self-sealing Coupling Self-sealing Nipple
BSPP(M) 1/8" 07-003-0-WR010-.. 07-003-2-WR010-..
BSPP(F) 1/8" 07-003-0-WR510-.. 07-003-2-WR510-..
NPT (National Pipe, Tapered)
End fitting Self-sealing Coupling Self-sealing Nipple
NPT(M) 1/8" 07-003-0-NP010-.. 07-003-2-NP010-..
NPT(F) 1/8" 07-003-0-NP510-.. 07-003-2-NP510-..
Hose barbs
End fitting Self-sealing Coupling Self-sealing Nipple
Hose Barb 5/32" (4mm) 07-003-0-SL004-.. 07-003-2-SL004-..
Barb & nut for 4mm ID x 6mm OD plastic tube 07-003-0-SW004-.. 07-003-2-SW004-..

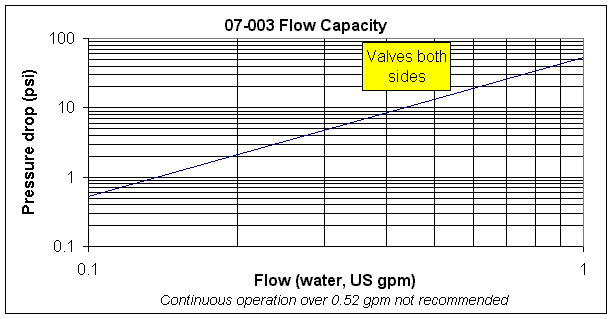

Flow Capacity

Flow Capacity for LP-07-003

Maxbar logo

1/8" BSPP(M), Self-sealing Coupling

Partial Part Number: 07-003-0-WR010-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-0-WR010-23-1
07-003-0-WR010-23-2
07-003-0-WR010-23-4
Steel, stainless 07-003-0-WR010-01-1
07-003-0-WR010-01-2
07-003-0-WR010-01-4
Standard materials in bold. Other materials & seals available.
Maxbar logo

1/8" BSPP(M), Self-sealing Nipple

Partial Part Number: 07-003-2-WR010-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-2-WR010-23-1
07-003-2-WR010-23-2
07-003-2-WR010-23-4
Steel, stainless 07-003-2-WR010-01-1
07-003-2-WR010-01-2
07-003-2-WR010-01-4
Standard materials in bold. Other materials & seals available.
Maxbar logo

1/8" BSPP(F), Self-sealing Coupling

Partial Part Number: 07-003-0-WR510-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-0-WR510-23-1
07-003-0-WR510-23-2
07-003-0-WR510-23-4
Steel, stainless 07-003-0-WR510-01-1
07-003-0-WR510-01-2
07-003-0-WR510-01-4
Standard materials in bold. Other materials & seals available.
Maxbar logo

1/8" BSPP(F), Self-sealing Nipple

Partial Part Number: 07-003-2-WR510-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-2-WR510-23-1
07-003-2-WR510-23-2
07-003-2-WR510-23-4
Steel, stainless 07-003-2-WR510-01-1
07-003-2-WR510-01-2
07-003-2-WR510-01-4
Standard materials in bold. Other materials & seals available.
Maxbar logo

1/8" NPT(M), Self-sealing Coupling

Partial Part Number: 07-003-0-NP010-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-0-NP010-23-1
07-003-0-NP010-23-2
07-003-0-NP010-23-4
Steel, stainless 07-003-0-NP010-01-1
07-003-0-NP010-01-2
07-003-0-NP010-01-4
Standard materials in bold. Other materials & seals available.
Maxbar logo

1/8" NPT(M), Self-sealing Nipple

Partial Part Number: 07-003-2-NP010-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-2-NP010-23-1
07-003-2-NP010-23-2
07-003-2-NP010-23-4
Steel, stainless 07-003-2-NP010-01-1
07-003-2-NP010-01-2
07-003-2-NP010-01-4
Standard materials in bold. Other materials & seals available.
Maxbar logo

1/8" NPT(F), Self-sealing Coupling

Partial Part Number: 07-003-0-NP510-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-0-NP510-23-1
07-003-0-NP510-23-2
07-003-0-NP510-23-4
Steel, stainless 07-003-0-NP510-01-1
07-003-0-NP510-01-2
07-003-0-NP510-01-4
Standard materials in bold. Other materials & seals available.
Maxbar logo

1/8" NPT(F), Self-sealing Nipple

Partial Part Number: 07-003-2-NP510-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-2-NP510-23-1
07-003-2-NP510-23-2
07-003-2-NP510-23-4
Steel, stainless 07-003-2-NP510-01-1
07-003-2-NP510-01-2
07-003-2-NP510-01-4
Standard materials in bold. Other materials & seals available.
Maxbar logo

5/32" (4mm) Hose Barb, Self-sealing Coupling

Partial Part Number: 07-003-0-SL004-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-0-SL004-23-1
07-003-0-SL004-23-2
07-003-0-SL004-23-4
Steel, stainless 07-003-0-SL004-01-1
07-003-0-SL004-01-2
07-003-0-SL004-01-4
Standard materials in bold. Other materials & seals available.
Maxbar logo

5/32" (4mm) Hose Barb, Self-sealing Nipple

Partial Part Number: 07-003-2-SL004-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-2-SL004-23-1
07-003-2-SL004-23-2
07-003-2-SL004-23-4
Steel, stainless 07-003-2-SL004-01-1
07-003-2-SL004-01-2
07-003-2-SL004-01-4
Standard materials in bold. Other materials & seals available.
Maxbar logo

Hose barb for 4mm ID x 6mm OD plastic tube with retaining nut, Self-sealing Coupling

Partial Part Number: 07-003-0-SW004-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-0-SW004-23-1
07-003-0-SW004-23-2
07-003-0-SW004-23-4
Steel, stainless 07-003-0-SW004-01-1
07-003-0-SW004-01-2
07-003-0-SW004-01-4
Standard materials in bold. Other materials & seals available.
Maxbar logo

Hose barb for 4mm ID x 6mm OD plastic tube with retaining nut, Self-sealing Nipple

Partial Part Number: 07-003-2-SW004-..-.

Find complete part numbers below:

Material Seal Material
NBR (nitrile) FPM (Viton) EPDM
Brass, nickel plated 07-003-2-SW004-23-1
07-003-2-SW004-23-2
07-003-2-SW004-23-4
Steel, stainless 07-003-2-SW004-01-1
07-003-2-SW004-01-2
07-003-2-SW004-01-4
Standard materials in bold. Other materials & seals available.
