Coupling Information

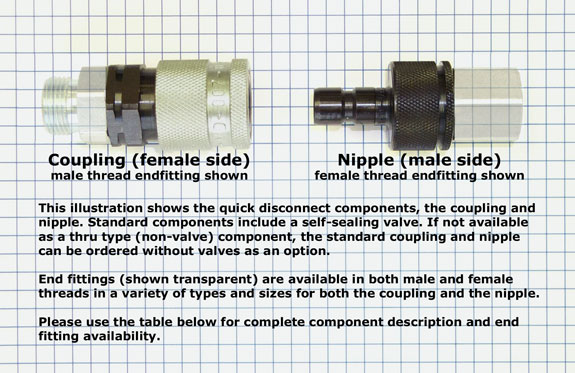

There are two basic types of MD-007 coupling. Part numbers for each are listed below.

Valve arrangement The Coupling (Female side) The Nipple (Male side)
Standard (with valves) MD-007-0-... MD-007-2-...
No valves (thru type) Use MD-007-0-... with -OV option Use MD-007-2-... with -OV option
MD-007 Couplings

End Fittings - Partial Part Number

(Refer to Part Number System)
BSPP (British Standard Pipe, Parallel)
End fitting Self-sealing Coupling Self-sealing Nipple
BSPP(M) 3/8" MD-007-0-WR017-.. MD-007-2-WR017-..
BSPP(M) 1/2" MD-007-0-WR021-.. MD-007-2-WR021-..
BSPP(F) 3/8" MD-007-0-WR517-.. MD-007-2-WR517-..
BSPP(F) 1/2" MD-007-0-WR521-.. MD-007-2-WR521-..
NPT (National Pipe, Tapered)
End fitting Self-sealing Coupling Self-sealing Nipple
NPT(M) 3/8" MD-007-0-NP017-.. MD-007-2-NP017-..

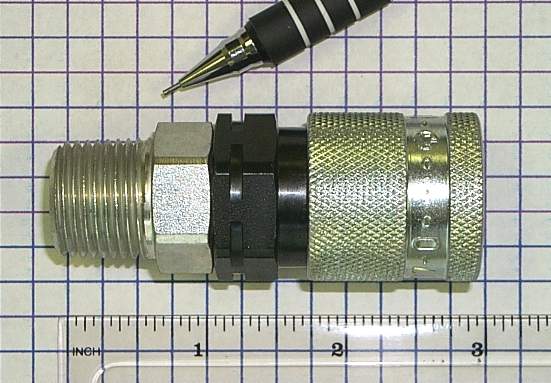

NPT(M) 1/2" MD-007-0-NP021-.. MD-007-2-NP021-..
NPT(F) 3/8" MD-007-0-NP517-.. MD-007-2-NP517-..

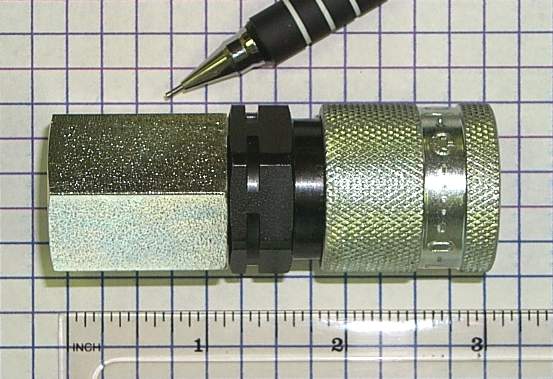

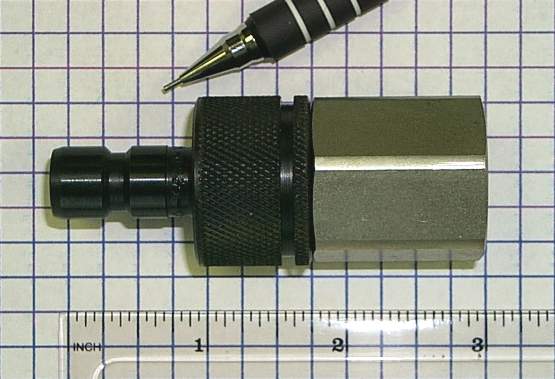

NPT(F) 1/2" MD-007-0-NP521-.. MD-007-2-NP521-..
BSPP(M) with 60° Female cone  (usually to fit hose ends with BSP swivel nuts)
End fitting Self-sealing Coupling Self-sealing Nipple
BSPP(M) 3/8" w/60° F cone  MD-007-0-VR017-.. MD-007-2-VR017-..
DIN 7631, M14 x 1.5mm with 60° Female cone (usually to fit hoses with metric swivel nuts)
End fitting Self-sealing Coupling Self-sealing Nipple
M16 x 1.5 MD-007-0-D0816-.. MD-007-2-D0816-..
M16 x 1.5 bulkhead mount MD-007-0-DV010-.. MD-007-2-DV010-..
EO (Ermeto) to fit tube & ferrule
End fitting Self-sealing Coupling Self-sealing Nipple
M14 x 1.5 8mm tube OD (Light) MD-007-0-L0814-.. MD-007-2-L0814-..

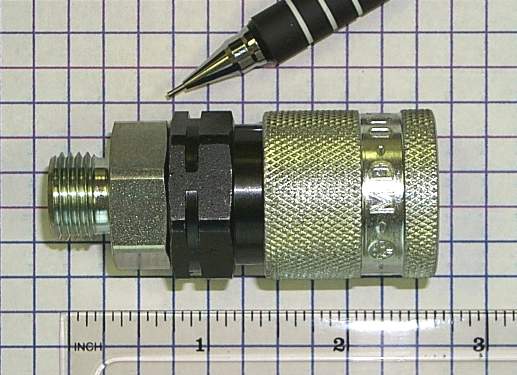

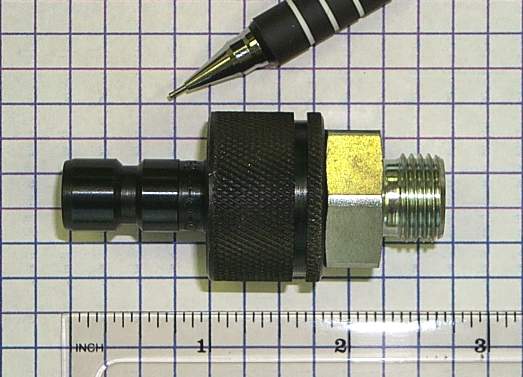

M16 x 1.5 10mm tube OD (Light) MD-007-0-L1016-.. MD-007-2-L1016-..
M18 x 1.5 12mm OD tube (Light) MD-007-0-L1218-.. MD-007-2-L1218-..

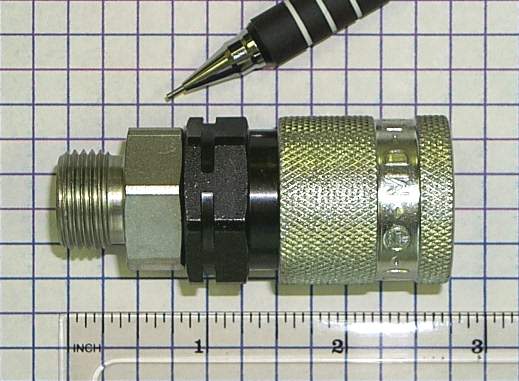

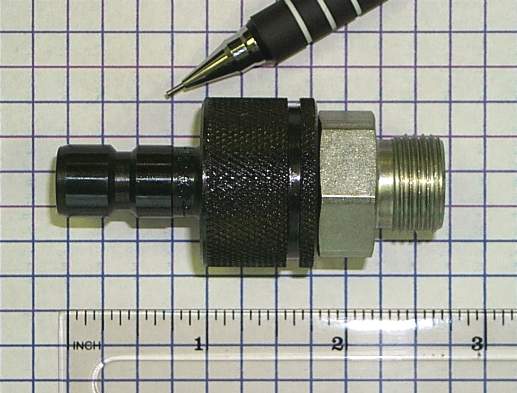

M18 x 1.5 10mm OD tube (Heavy) MD-007-0-S1018-.. MD-007-2-S1018-..

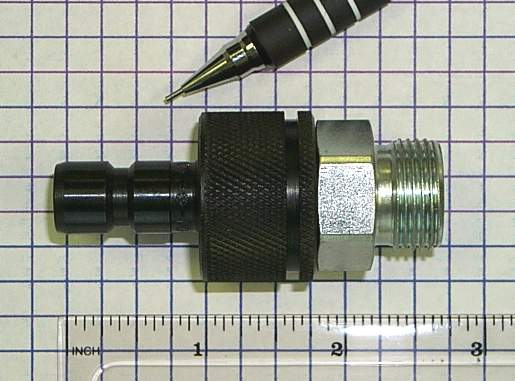

M20 x 1.5 12mm OD tube (Heavy) MD-007-0-S1220-.. MD-007-2-S1220-..

Dust Caps & Dust Plugs - Part numbers for Series MD-007

Material Plugs for Couplings (Female side) Caps for Adapters (Male side)
Non-pressure retaining1 MD-007-6-74-KU
medium pressure couplings		 MD-007-5-74-KU
medium pressure couplings
Pressure retaining2 MD-007-6-12 MD-007-5-19-1 (Nitrile)MD-007-5-19-2 (Viton)MD-007-5-19-4 (EPDM)

* Plugs and caps are available for both self-sealing & thru-type couplings and adapters.1. Soft PVC (grey)2. Zinc-plated/oil burnished steel body, nickel-plated steel chain and retaining ring

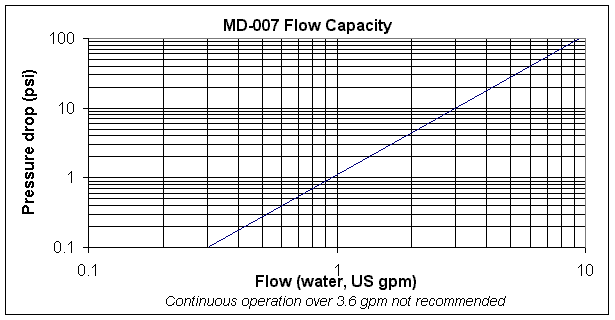

Flow Capacity

Flow Capacity for MD-007
Maxbar logo

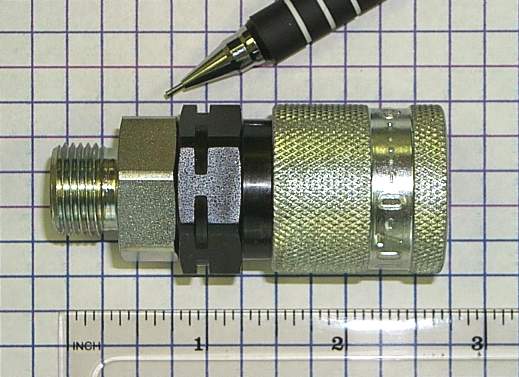

3/8" BSPP(M), Self-sealing Coupling

Partial Part Number: MD-007-0-WR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-WR017-19-1
 MD-007-0-WR017-19-2
 MD-007-0-WR017-19-4
 MD-007-0-WR017-19
Brass, passivated MD-007-0-WR017-21-1
 MD-007-0-WR017-21-2
 MD-007-0-WR017-21-4
 --
Steel, 316 stainless MD-007-0-WR017-01-1
 MD-007-0-WR017-01-2
 MD-007-0-WR017-01-4
 --
Steel, electroless nickel pl. MD-007-0-WR017-13-1
 MD-007-0-WR017-13-2
 MD-007-0-WR017-13-4
 --
Brass, electroless nickel pl. MD-007-0-WR017-24-1
 MD-007-0-WR017-24-2
 MD-007-0-WR017-24-4
 --
Brass, chrome pl. MD-007-0-WR017-22-1
 MD-007-0-WR017-22-2
 MD-007-0-WR017-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

3/8" BSPP(M), Self-sealing Nipple

Partial Part Number: MD-007-2-WR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-WR017-19-1
 MD-007-2-WR017-19-2
 MD-007-2-WR017-19-4
 MD-007-2-WR017-19
Brass, passivated MD-007-2-WR017-21-1
 MD-007-2-WR017-21-2
 MD-007-2-WR017-21-4
 --
Steel, 316 stainless MD-007-2-WR017-01-1
 MD-007-2-WR017-01-2
 MD-007-2-WR017-01-4
 --
Steel, electroless nickel pl. MD-007-2-WR017-13-1
 MD-007-2-WR017-13-2
 MD-007-2-WR017-13-4
 --
Brass, electroless nickel pl. MD-007-2-WR017-24-1
 MD-007-2-WR017-24-2
 MD-007-2-WR017-24-4
 --
Brass, chrome pl. MD-007-2-WR017-22-1
 MD-007-2-WR017-22-2
 MD-007-2-WR017-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

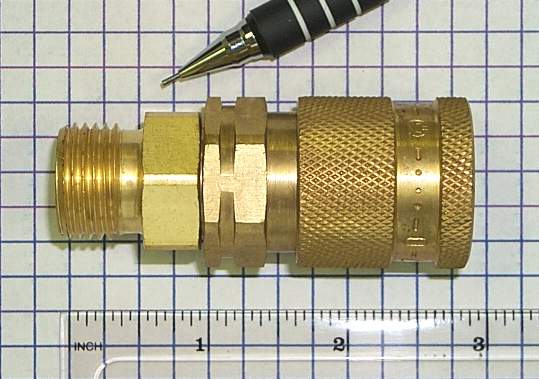

1/2" BSPP(M), Self-sealing Coupling

Partial Part Number: MD-007-0-WR021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-WR021-19-1
 MD-007-0-WR021-19-2
 MD-007-0-WR021-19-4
 MD-007-0-WR021-19
Brass, passivated MD-007-0-WR021-21-1
 MD-007-0-WR021-21-2
 MD-007-0-WR021-21-4
 MD-007-0-WR021-21
Steel, 316 stainless MD-007-0-WR021-01-1
 MD-007-0-WR021-01-2
 MD-007-0-WR021-01-4
 --
Steel, electroless nickel pl. MD-007-0-WR021-13-1
 MD-007-0-WR021-13-2
 MD-007-0-WR021-13-4
 --
Brass, electroless nickel pl. MD-007-0-WR021-24-1
 MD-007-0-WR021-24-2
 MD-007-0-WR021-24-4
 --
Brass, chrome pl. MD-007-0-WR021-22-1
 MD-007-0-WR021-22-2
 MD-007-0-WR021-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" BSPP(M), Self-sealing Nipple

Partial Part Number: MD-007-2-WR021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-WR021-19-1
 MD-007-2-WR021-19-2
 MD-007-2-WR021-19-4
 MD-007-2-WR021-19
Brass, passivated MD-007-2-WR021-21-1
 MD-007-2-WR021-21-2
 MD-007-2-WR021-21-4
 MD-007-2-WR021-21
Steel, 316 stainless MD-007-2-WR021-01-1
 MD-007-2-WR021-01-2
 MD-007-2-WR021-01-4
 --
Steel, electroless nickel pl. MD-007-2-WR021-13-1
 MD-007-2-WR021-13-2
 MD-007-2-WR021-13-4
 --
Brass, electroless nickel pl. MD-007-2-WR021-24-1
 MD-007-2-WR021-24-2
 MD-007-2-WR021-24-4
 --
Brass, chrome pl. MD-007-2-WR021-22-1
 MD-007-2-WR021-22-2
 MD-007-2-WR021-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

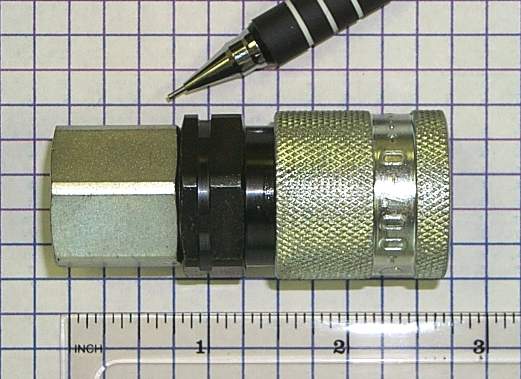

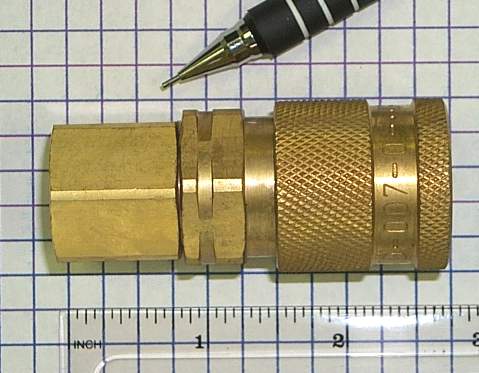

3/8" BSPP(M), Self-sealing Coupling

Partial Part Number: MD-007-0-WR517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-WR517-19-1
 MD-007-0-WR517-19-2
 MD-007-0-WR517-19-4
 MD-007-0-WR517-19
Brass, passivated MD-007-0-WR517-21-1
 MD-007-0-WR517-21-2
 MD-007-0-WR517-21-4
 MD-007-0-WR517-21
Steel, 316 stainless MD-007-0-WR517-01-1
 MD-007-0-WR517-01-2
 MD-007-0-WR517-01-4
 --
Steel, electroless nickel pl. MD-007-0-WR517-13-1
 MD-007-0-WR517-13-2
 MD-007-0-WR517-13-4
 --
Brass, electroless nickel pl. MD-007-0-WR517-24-1
 MD-007-0-WR517-24-2
 MD-007-0-WR517-24-4
 --
Brass, chrome pl. MD-007-0-WR517-22-1
 MD-007-0-WR517-22-2
 MD-007-0-WR517-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

3/8" BSPP(M), Self-sealing Nipple

Partial Part Number: MD-007-2-WR517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-WR517-19-1
 MD-007-2-WR517-19-2
 MD-007-2-WR517-19-4
 MD-007-2-WR517-19
Brass, passivated MD-007-2-WR517-21-1
 MD-007-2-WR517-21-2
 MD-007-2-WR517-21-4
 MD-007-2-WR517-21
Steel, 316 stainless MD-007-2-WR517-01-1
 MD-007-2-WR517-01-2
 MD-007-2-WR517-01-4
 --
Steel, electroless nickel pl. MD-007-2-WR517-13-1
 MD-007-2-WR517-13-2
 MD-007-2-WR517-13-4
 --
Brass, electroless nickel pl. MD-007-2-WR517-24-1
 MD-007-2-WR517-24-2
 MD-007-2-WR517-24-4
 --
Brass, chrome pl. MD-007-2-WR517-22-1
 MD-007-2-WR517-22-2
 MD-007-2-WR517-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

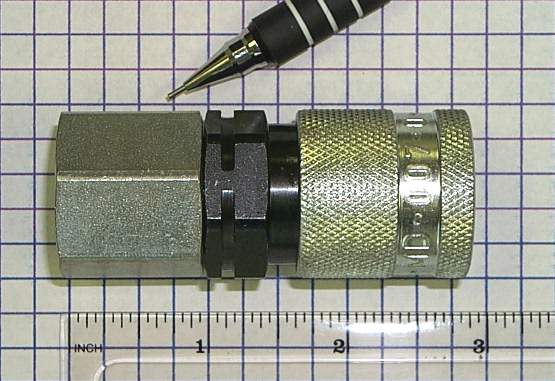

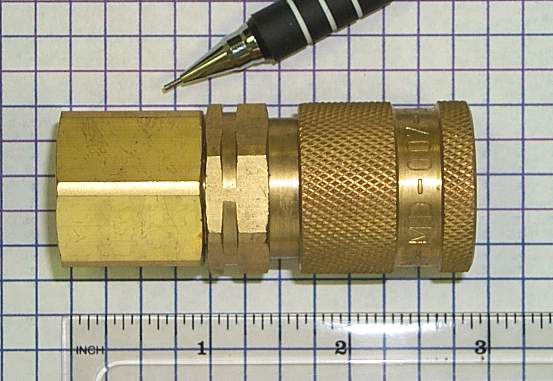

1/2" BSPP(M), Self-sealing Coupling

Partial Part Number: MD-007-0-WR521-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-WR521-19-1
 MD-007-0-WR521-19-2
 MD-007-0-WR521-19-4
 MD-007-0-WR521-19
Brass, passivated MD-007-0-WR521-21-1
 MD-007-0-WR521-21-2
 MD-007-0-WR521-21-4
 MD-007-0-WR521-21
Steel, 316 stainless MD-007-0-WR521-01-1
 MD-007-0-WR521-01-2
 MD-007-0-WR521-01-4
 --
Steel, electroless nickel pl. MD-007-0-WR521-13-1
 MD-007-0-WR521-13-2
 MD-007-0-WR521-13-4
 --
Brass, electroless nickel pl. MD-007-0-WR521-24-1
 MD-007-0-WR521-24-2
 MD-007-0-WR521-24-4
 --
Brass, chrome pl. MD-007-0-WR521-22-1
 MD-007-0-WR521-22-2
 MD-007-0-WR521-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

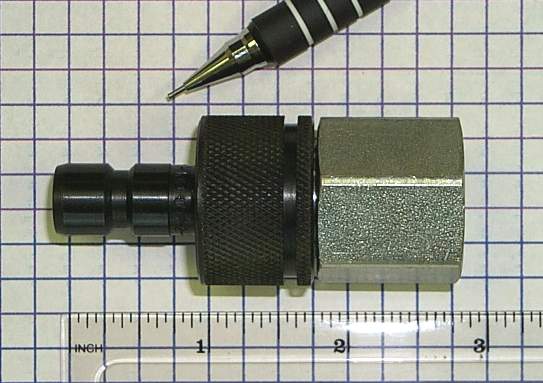

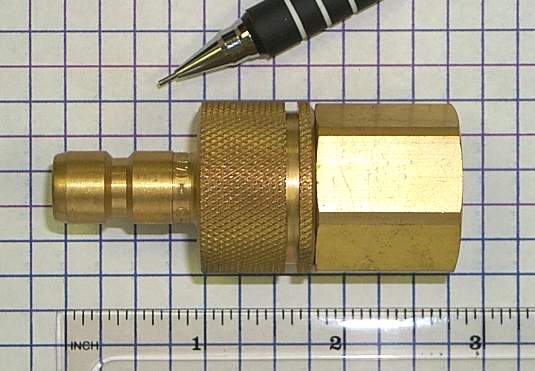

1/2" BSPP(M), Self-sealing Nipple

Partial Part Number: MD-007-2-WR521-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-WR521-19-1
 MD-007-2-WR521-19-2
 MD-007-2-WR521-19-4
 MD-007-2-WR521-19
Brass, passivated MD-007-2-WR521-21-1
 MD-007-2-WR521-21-2
 MD-007-2-WR521-21-4
 MD-007-2-WR521-21
Steel, 316 stainless MD-007-2-WR521-01-1
 MD-007-2-WR521-01-2
 MD-007-2-WR521-01-4
 --
Steel, electroless nickel pl. MD-007-2-WR521-13-1
 MD-007-2-WR521-13-2
 MD-007-2-WR521-13-4
 --
Brass, electroless nickel pl. MD-007-2-WR521-24-1
 MD-007-2-WR521-24-2
 MD-007-2-WR521-24-4
 --
Brass, chrome pl. MD-007-2-WR521-22-1
 MD-007-2-WR521-22-2
 MD-007-2-WR521-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

3/8" NPT(F), Self-sealing Coupling

Partial Part Number: MD-007-0-NP017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-NP017-19-1
 MD-007-0-NP017-19-2
 MD-007-0-NP017-19-4
 MD-007-0-NP017-19
Brass, passivated MD-007-0-NP017-21-1
 MD-007-0-NP017-21-2
 MD-007-0-NP017-21-4
 --
Steel, 316 stainless MD-007-0-NP017-01-1
 MD-007-0-NP017-01-2
 MD-007-0-NP017-01-4
 --
Steel, electroless nickel pl. MD-007-0-NP017-13-1
 MD-007-0-NP017-13-2
 MD-007-0-NP017-13-4
 --
Brass, electroless nickel pl. MD-007-0-NP017-24-1
 MD-007-0-NP017-24-2
 MD-007-0-NP017-24-4
 --
Brass, chrome pl. MD-007-0-NP017-22-1
 MD-007-0-NP017-22-2
 MD-007-0-NP017-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

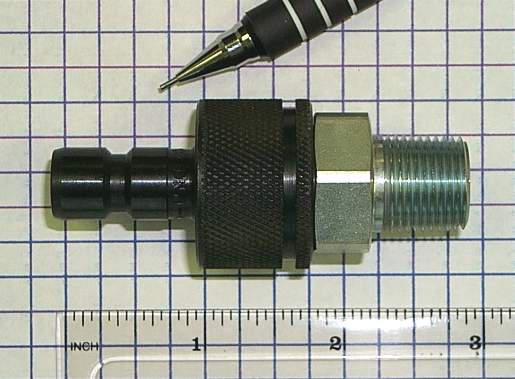

3/8" NPT(F), Self-sealing Nipple

Partial Part Number: MD-007-2-NP017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-NP017-19-1
 MD-007-2-NP017-19-2
 MD-007-2-NP017-19-4
 MD-007-2-NP017-19
Brass, passivated MD-007-2-NP017-21-1
 MD-007-2-NP017-21-2
 MD-007-2-NP017-21-4
 --
Steel, 316 stainless MD-007-2-NP017-01-1
 MD-007-2-NP017-01-2
 MD-007-2-NP017-01-4
 --
Steel, electroless nickel pl. MD-007-2-NP017-13-1
 MD-007-2-NP017-13-2
 MD-007-2-NP017-13-4
 --
Brass, electroless nickel pl. MD-007-2-NP017-24-1
 MD-007-2-NP017-24-2
 MD-007-2-NP017-24-4
 --
Brass, chrome pl. MD-007-2-NP017-22-1
 MD-007-2-NP017-22-2
 MD-007-2-NP017-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

1/2" NPT(F), Self-sealing Coupling

Partial Part Number: MD-007-0-NP021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-NP021-19-1
 MD-007-0-NP021-19-2
 MD-007-0-NP021-19-4
 MD-007-0-NP021-19
Brass, passivated MD-007-0-NP021-21-1
 MD-007-0-NP021-21-2
 MD-007-0-NP021-21-4
 --
Steel, 316 stainless MD-007-0-NP021-01-1
 MD-007-0-NP021-01-2
 MD-007-0-NP021-01-4
 --
Steel, electroless nickel pl. MD-007-0-NP021-13-1
 MD-007-0-NP021-13-2
 MD-007-0-NP021-13-4
 --
Brass, electroless nickel pl. MD-007-0-NP021-24-1
 MD-007-0-NP021-24-2
 MD-007-0-NP021-24-4
 --
Brass, chrome pl. MD-007-0-NP021-22-1
 MD-007-0-NP021-22-2
 MD-007-0-NP021-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" NPT(F), Self-sealing Nipple

Partial Part Number: MD-007-2-NP021-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-NP021-19-1
 MD-007-2-NP021-19-2
 MD-007-2-NP021-19-4
 MD-007-2-NP021-19
Brass, passivated MD-007-2-NP021-21-1
 MD-007-2-NP021-21-2
 MD-007-2-NP021-21-4
 --
Steel, 316 stainless MD-007-2-NP021-01-1
 MD-007-2-NP021-01-2
 MD-007-2-NP021-01-4
 --
Steel, electroless nickel pl. MD-007-2-NP021-13-1
 MD-007-2-NP021-13-2
 MD-007-2-NP021-13-4
 --
Brass, electroless nickel pl. MD-007-2-NP021-24-1
 MD-007-2-NP021-24-2
 MD-007-2-NP021-24-4
 --
Brass, chrome pl. MD-007-2-NP021-22-1
 MD-007-2-NP021-22-2
 MD-007-2-NP021-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

3/8" NPT(F), Self-sealing Coupling

Partial Part Number: MD-007-0-NP517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-NP517-19-1
 MD-007-0-NP517-19-2
 MD-007-0-NP517-19-4
 MD-007-0-NP517-19
Brass, passivated MD-007-0-NP517-21-1
 MD-007-0-NP517-21-2
 MD-007-0-NP517-21-4
 --
Steel, 316 stainless MD-007-0-NP517-01-1
 MD-007-0-NP517-01-2
 MD-007-0-NP517-01-4
 --
Steel, electroless nickel pl. MD-007-0-NP517-13-1
 MD-007-0-NP517-13-2
 MD-007-0-NP517-13-4
 --
Brass, electroless nickel pl. MD-007-0-NP517-24-1
 MD-007-0-NP517-24-2
 MD-007-0-NP517-24-4
 --
Brass, chrome pl. MD-007-0-NP517-22-1
 MD-007-0-NP517-22-2
 MD-007-0-NP517-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

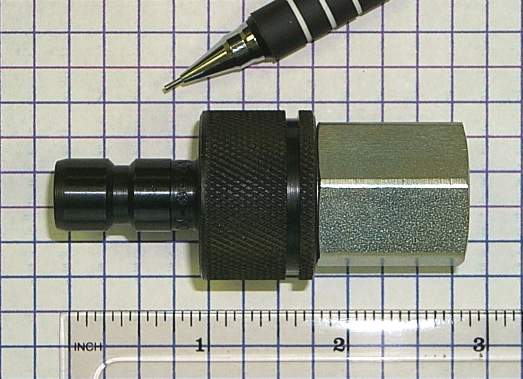

3/8" NPT(F), Self-sealing Nipple

Partial Part Number: MD-007-2-NP517-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-NP517-19-1
 MD-007-2-NP517-19-2
 MD-007-2-NP517-19-4
 MD-007-2-NP517-19
Brass, passivated MD-007-2-NP517-21-1
 MD-007-2-NP517-21-2
 MD-007-2-NP517-21-4
 --
Steel, 316 stainless MD-007-2-NP517-01-1
 MD-007-2-NP517-01-2
 MD-007-2-NP517-01-4
 --
Steel, electroless nickel pl. MD-007-2-NP517-13-1
 MD-007-2-NP517-13-2
 MD-007-2-NP517-13-4
 --
Brass, electroless nickel pl. MD-007-2-NP517-24-1
 MD-007-2-NP517-24-2
 MD-007-2-NP517-24-4
 --
Brass, chrome pl. MD-007-2-NP517-22-1
 MD-007-2-NP517-22-2
 MD-007-2-NP517-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

1/2" NPT(F), Self-sealing Coupling

Partial Part Number: MD-007-0-NP521-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-NP521-19-1
 MD-007-0-NP521-19-2
 MD-007-0-NP521-19-4
 MD-007-0-NP521-19
Brass, passivated MD-007-0-NP521-21-1
 MD-007-0-NP521-21-2
 MD-007-0-NP521-21-4
 --
Steel, 316 stainless MD-007-0-NP521-01-1
 MD-007-0-NP521-01-2
 MD-007-0-NP521-01-4
 --
Steel, electroless nickel pl. MD-007-0-NP521-13-1
 MD-007-0-NP521-13-2
 MD-007-0-NP521-13-4
 --
Brass, electroless nickel pl. MD-007-0-NP521-24-1
 MD-007-0-NP521-24-2
 MD-007-0-NP521-24-4
 --
Brass, chrome pl. MD-007-0-NP521-22-1
 MD-007-0-NP521-22-2
 MD-007-0-NP521-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

1/2" NPT(F), Self-sealing Nipple

Partial Part Number: MD-007-2-NP521-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-NP521-19-1
 MD-007-2-NP521-19-2
 MD-007-2-NP521-19-4
 MD-007-2-NP521-19
Brass, passivated MD-007-2-NP521-21-1
 MD-007-2-NP521-21-2
 MD-007-2-NP521-21-4
 --
Steel, 316 stainless MD-007-2-NP521-01-1
 MD-007-2-NP521-01-2
 MD-007-2-NP521-01-4
 --
Steel, electroless nickel pl. MD-007-2-NP521-13-1
 MD-007-2-NP521-13-2
 MD-007-2-NP521-13-4
 --
Brass, electroless nickel pl. MD-007-2-NP521-24-1
 MD-007-2-NP521-24-2
 MD-007-2-NP521-24-4
 --
Brass, chrome pl. MD-007-2-NP521-22-1
 MD-007-2-NP521-22-2
 MD-007-2-NP521-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

3/8" BSPP(M) w/60° F cone, Self-sealing Coupling

Partial Part Number: MD-007-0-VR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-VR017-19-1
 MD-007-0-VR017-19-2
 MD-007-0-VR017-19-4
 --
Brass, passivated MD-007-0-VR017-21-1
 MD-007-0-VR017-21-2
 MD-007-0-VR017-21-4
 --
Steel, 316 stainless MD-007-0-VR017-01-1
 MD-007-0-VR017-01-2
 MD-007-0-VR017-01-4
 --
Steel, electroless nickel pl. MD-007-0-VR017-13-1
 MD-007-0-VR017-13-2
 MD-007-0-VR017-13-4
 --
Brass, electroless nickel pl. MD-007-0-VR017-24-1
 MD-007-0-VR017-24-2
 MD-007-0-VR017-24-4
 --
Brass, chrome pl. MD-007-0-VR017-22-1
 MD-007-0-VR017-22-2
 MD-007-0-VR017-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

3/8" BSPP(M) w/60° F cone, Self-sealing Nipple

Partial Part Number: MD-007-2-VR017-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-VR017-19-1
 MD-007-2-VR017-19-2
 MD-007-2-VR017-19-4
 --
Brass, passivated MD-007-2-VR017-21-1
 MD-007-2-VR017-21-2
 MD-007-2-VR017-21-4
 --
Steel, 316 stainless MD-007-2-VR017-01-1
 MD-007-2-VR017-01-2
 MD-007-2-VR017-01-4
 --
Steel, electroless nickel pl. MD-007-2-VR017-13-1
 MD-007-2-VR017-13-2
 MD-007-2-VR017-13-4
 --
Brass, electroless nickel pl. MD-007-2-VR017-24-1
 MD-007-2-VR017-24-2
 MD-007-2-VR017-24-4
 --
Brass, chrome pl. MD-007-2-VR017-22-1
 MD-007-2-VR017-22-2
 MD-007-2-VR017-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

M16 x 1.5 w/60° F cone, Self-sealing Coupling

Partial Part Number: MD-007-0-D0816-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-D0816-19-1
 MD-007-0-D0816-19-2
 MD-007-0-D0816-19-4
 --
Brass, passivated MD-007-0-D0816-21-1
 MD-007-0-D0816-21-2
 MD-007-0-D0816-21-4
 --
Steel, 316 stainless MD-007-0-D0816-01-1
 MD-007-0-D0816-01-2
 MD-007-0-D0816-01-4
 --
Steel, electroless nickel pl. MD-007-0-D0816-13-1
 MD-007-0-D0816-13-2
 MD-007-0-D0816-13-4
 --
Brass, electroless nickel pl. MD-007-0-D0816-24-1
 MD-007-0-D0816-24-2
 MD-007-0-D0816-24-4
 --
Brass, chrome pl. MD-007-0-D0816-22-1
 MD-007-0-D0816-22-2
 MD-007-0-D0816-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M16 x 1.5 w/60° F cone, Self-sealing Nipple

Partial Part Number: MD-007-2-D0816-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-D0816-19-1
 MD-007-2-D0816-19-2
 MD-007-2-D0816-19-4
 --
Brass, passivated MD-007-2-D0816-21-1
 MD-007-2-D0816-21-2
 MD-007-2-D0816-21-4
 --
Steel, 316 stainless MD-007-2-D0816-01-1
 MD-007-2-D0816-01-2
 MD-007-2-D0816-01-4
 --
Steel, electroless nickel pl. MD-007-2-D0816-13-1
 MD-007-2-D0816-13-2
 MD-007-2-D0816-13-4
 --
Brass, electroless nickel pl. MD-007-2-D0816-24-1
 MD-007-2-D0816-24-2
 MD-007-2-D0816-24-4
 --
Brass, chrome pl. MD-007-2-D0816-22-1
 MD-007-2-D0816-22-2
 MD-007-2-D0816-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

M16 x 1.5 w/60° F cone, bulkhead mount, Self-sealing Coupling

Partial Part Number: MD-007-0-DV010-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-DV010-19-1
 MD-007-0-DV010-19-2
 MD-007-0-DV010-19-4
 --
Brass, passivated MD-007-0-DV010-21-1
 MD-007-0-DV010-21-2
 MD-007-0-DV010-21-4
 --
Steel, 316 stainless MD-007-0-DV010-01-1
 MD-007-0-DV010-01-2
 MD-007-0-DV010-01-4
 --
Steel, electroless nickel pl. MD-007-0-DV010-13-1
 MD-007-0-DV010-13-2
 MD-007-0-DV010-13-4
 --
Brass, electroless nickel pl. MD-007-0-DV010-24-1
 MD-007-0-DV010-24-2
 MD-007-0-DV010-24-4
 --
Brass, chrome pl. MD-007-0-DV010-22-1
 MD-007-0-DV010-22-2
 MD-007-0-DV010-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M16 x 1.5 w/60° F cone, bulkhead mount, Self-sealing Nipple

Partial Part Number: MD-007-2-DV010-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-DV010-19-1
 MD-007-2-DV010-19-2
 MD-007-2-DV010-19-4
 --
Brass, passivated MD-007-2-DV010-21-1
 MD-007-2-DV010-21-2
 MD-007-2-DV010-21-4
 --
Steel, 316 stainless MD-007-2-DV010-01-1
 MD-007-2-DV010-01-2
 MD-007-2-DV010-01-4
 --
Steel, electroless nickel pl. MD-007-2-DV010-13-1
 MD-007-2-DV010-13-2
 MD-007-2-DV010-13-4
 --
Brass, electroless nickel pl. MD-007-2-DV010-24-1
 MD-007-2-DV010-24-2
 MD-007-2-DV010-24-4
 --
Brass, chrome pl. MD-007-2-DV010-22-1
 MD-007-2-DV010-22-2
 MD-007-2-DV010-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

M14 x 1.5 8mm tube OD (Light), Self-sealing Coupling

Partial Part Number: MD-007-0-L0814-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-L0814-19-1
 MD-007-0-L0814-19-2
 MD-007-0-L0814-19-4
 --
Brass, passivated MD-007-0-L0814-21-1
 MD-007-0-L0814-21-2
 MD-007-0-L0814-21-4
 --
Steel, 316 stainless MD-007-0-L0814-01-1
 MD-007-0-L0814-01-2
 MD-007-0-L0814-01-4
 --
Steel, electroless nickel pl. MD-007-0-L0814-13-1
 MD-007-0-L0814-13-2
 MD-007-0-L0814-13-4
 --
Brass, electroless nickel pl. MD-007-0-L0814-24-1
 MD-007-0-L0814-24-2
 MD-007-0-L0814-24-4
 --
Brass, chrome pl. MD-007-0-L0814-22-1
 MD-007-0-L0814-22-2
 MD-007-0-L0814-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M14 x 1.5 8mm tube OD (Light), Self-sealing Nipple

Partial Part Number: MD-007-2-L0814-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-L0814-19-1
 MD-007-2-L0814-19-2
 MD-007-2-L0814-19-4
 --
Brass, passivated MD-007-2-L0814-21-1
 MD-007-2-L0814-21-2
 MD-007-2-L0814-21-4
 --
Steel, 316 stainless MD-007-2-L0814-01-1
 MD-007-2-L0814-01-2
 MD-007-2-L0814-01-4
 --
Steel, electroless nickel pl. MD-007-2-L0814-13-1
 MD-007-2-L0814-13-2
 MD-007-2-L0814-13-4
 --
Brass, electroless nickel pl. MD-007-2-L0814-24-1
 MD-007-2-L0814-24-2
 MD-007-2-L0814-24-4
 --
Brass, chrome pl. MD-007-2-L0814-22-1
 MD-007-2-L0814-22-2
 MD-007-2-L0814-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

M16 x 1.5 10mm tube OD (Light), Self-sealing Coupling

Partial Part Number: MD-007-0-L1016-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-L1016-19-1
 MD-007-0-L1016-19-2
 MD-007-0-L1016-19-4
 MD-007-0-L1016-19
Brass, passivated MD-007-0-L1016-21-1
 MD-007-0-L1016-21-2
 MD-007-0-L1016-21-4
 --
Steel, 316 stainless MD-007-0-L1016-01-1
 MD-007-0-L1016-01-2
 MD-007-0-L1016-01-4
 --
Steel, electroless nickel pl. MD-007-0-L1016-13-1
 MD-007-0-L1016-13-2
 MD-007-0-L1016-13-4
 --
Brass, electroless nickel pl. MD-007-0-L1016-24-1
 MD-007-0-L1016-24-2
 MD-007-0-L1016-24-4
 --
Brass, chrome pl. MD-007-0-L1016-22-1
 MD-007-0-L1016-22-2
 MD-007-0-L1016-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M16 x 1.5 10mm tube OD (Light), Self-sealing Nipple

Partial Part Number: MD-007-2-L1016-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-L1016-19-1
 MD-007-2-L1016-19-2
 MD-007-2-L1016-19-4
 MD-007-2-L1016-19
Brass, passivated MD-007-2-L1016-21-1
 MD-007-2-L1016-21-2
 MD-007-2-L1016-21-4
 --
Steel, 316 stainless MD-007-2-L1016-01-1
 MD-007-2-L1016-01-2
 MD-007-2-L1016-01-4
 --
Steel, electroless nickel pl. MD-007-2-L1016-13-1
 MD-007-2-L1016-13-2
 MD-007-2-L1016-13-4
 --
Brass, electroless nickel pl. MD-007-2-L1016-24-1
 MD-007-2-L1016-24-2
 MD-007-2-L1016-24-4
 --
Brass, chrome pl. MD-007-2-L1016-22-1
 MD-007-2-L1016-22-2
 MD-007-2-L1016-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

M18 x 1.5 12mm tube OD (Light), Self-sealing Coupling

Partial Part Number: MD-007-0-L1218-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-L1218-19-1
 MD-007-0-L1218-19-2
 MD-007-0-L1218-19-4
 --
Brass, passivated MD-007-0-L1218-21-1
 MD-007-0-L1218-21-2
 MD-007-0-L1218-21-4
 --
Steel, 316 stainless MD-007-0-L1218-01-1
 MD-007-0-L1218-01-2
 MD-007-0-L1218-01-4
 --
Steel, electroless nickel pl. MD-007-0-L1218-13-1
 MD-007-0-L1218-13-2
 MD-007-0-L1218-13-4
 --
Brass, electroless nickel pl. MD-007-0-L1218-24-1
 MD-007-0-L1218-24-2
 MD-007-0-L1218-24-4
 --
Brass, chrome pl. MD-007-0-L1218-22-1
 MD-007-0-L1218-22-2
 MD-007-0-L1218-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M18 x 1.5 12mm tube OD (Light), Self-sealing Nipple

Partial Part Number: MD-007-2-L1218-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-L1218-19-1
 MD-007-2-L1218-19-2
 MD-007-2-L1218-19-4
 --
Brass, passivated MD-007-2-L1218-21-1
 MD-007-2-L1218-21-2
 MD-007-2-L1218-21-4
 --
Steel, 316 stainless MD-007-2-L1218-01-1
 MD-007-2-L1218-01-2
 MD-007-2-L1218-01-4
 --
Steel, electroless nickel pl. MD-007-2-L1218-13-1
 MD-007-2-L1218-13-2
 MD-007-2-L1218-13-4
 --
Brass, electroless nickel pl. MD-007-2-L1218-24-1
 MD-007-2-L1218-24-2
 MD-007-2-L1218-24-4
 --
Brass, chrome pl. MD-007-2-L1218-22-1
 MD-007-2-L1218-22-2
 MD-007-2-L1218-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

M18 x 1.5 10mm tube OD (Heavy), Self-sealing Coupling

Partial Part Number: MD-007-0-S1018-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-S1018-19-1
 MD-007-0-S1018-19-2
 MD-007-0-S1018-19-4
 MD-007-0-S1018-19
Brass, passivated MD-007-0-S1018-21-1
 MD-007-0-S1018-21-2
 MD-007-0-S1018-21-4
 --
Steel, 316 stainless MD-007-0-S1018-01-1
 MD-007-0-S1018-01-2
 MD-007-0-S1018-01-4
 --
Steel, electroless nickel pl. MD-007-0-S1018-13-1
 MD-007-0-S1018-13-2
 MD-007-0-S1018-13-4
 --
Brass, electroless nickel pl. MD-007-0-S1018-24-1
 MD-007-0-S1018-24-2
 MD-007-0-S1018-24-4
 --
Brass, chrome pl. MD-007-0-S1018-22-1
 MD-007-0-S1018-22-2
 MD-007-0-S1018-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M18 x 1.5 10mm tube OD (Heavy), Self-sealing Nipple

Partial Part Number: MD-007-2-S1018-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-S1018-19-1
 MD-007-2-S1018-19-2
 MD-007-2-S1018-19-4
 MD-007-2-S1018-19
Brass, passivated MD-007-2-S1018-21-1
 MD-007-2-S1018-21-2
 MD-007-2-S1018-21-4
 --
Steel, 316 stainless MD-007-2-S1018-01-1
 MD-007-2-S1018-01-2
 MD-007-2-S1018-01-4
 --
Steel, electroless nickel pl. MD-007-2-S1018-13-1
 MD-007-2-S1018-13-2
 MD-007-2-S1018-13-4
 --
Brass, electroless nickel pl. MD-007-2-S1018-24-1
 MD-007-2-S1018-24-2
 MD-007-2-S1018-24-4
 --
Brass, chrome pl. MD-007-2-S1018-22-1
 MD-007-2-S1018-22-2
 MD-007-2-S1018-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.
Maxbar logo

M20 x 1.5 12mm tube OD (Heavy), Self-sealing Coupling

Partial Part Number: MD-007-0-S1220-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-0-S1220-19-1
 MD-007-0-S1220-19-2
 MD-007-0-S1220-19-4
 MD-007-0-S1220-19
Brass, passivated MD-007-0-S1220-21-1
 MD-007-0-S1220-21-2
 MD-007-0-S1220-21-4
 --
Steel, 316 stainless MD-007-0-S1220-01-1
 MD-007-0-S1220-01-2
 MD-007-0-S1220-01-4
 --
Steel, electroless nickel pl. MD-007-0-S1220-13-1
 MD-007-0-S1220-13-2
 MD-007-0-S1220-13-4
 --
Brass, electroless nickel pl. MD-007-0-S1220-24-1
 MD-007-0-S1220-24-2
 MD-007-0-S1220-24-4
 --
Brass, chrome pl. MD-007-0-S1220-22-1
 MD-007-0-S1220-22-2
 MD-007-0-S1220-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV
Safety locking ring -SI
Maxbar logo

M20 x 1.5 12mm tube OD (Heavy), Self-sealing Nipple

Partial Part Number: MD-007-2-S1220-..-.

Find complete part numbers below:

Material Seal Material Click to Enlarge
NBR (nitrile) FPM (Viton) EPDM
Steel, zinc plated/oil burnished MD-007-2-S1220-19-1
 MD-007-2-S1220-19-2
 MD-007-2-S1220-19-4
 MD-007-2-S1220-19
Brass, passivated MD-007-2-S1220-21-1
 MD-007-2-S1220-21-2
 MD-007-2-S1220-21-4
 --
Steel, 316 stainless MD-007-2-S1220-01-1
 MD-007-2-S1220-01-2
 MD-007-2-S1220-01-4
 --
Steel, electroless nickel pl. MD-007-2-S1220-13-1
 MD-007-2-S1220-13-2
 MD-007-2-S1220-13-4
 --
Brass, electroless nickel pl. MD-007-2-S1220-24-1
 MD-007-2-S1220-24-2
 MD-007-2-S1220-24-4
 --
Brass, chrome pl. MD-007-2-S1220-22-1
 MD-007-2-S1220-22-2
 MD-007-2-S1220-22-4
 --
Standard materials in bold. Other materials & seals available.

Find available options below:

Option Add to end of part number
No valves (omit valves) -OV

Notes

  • There are no thru type nipples available for the MD-007 group. Use the MD-007-2 with the -OV (omit valve) option.

Contact one of our sales representatives today
to inquire about a quote from Maxbar - Walther Precision USA
or call us today at 513.527.4100


Maxbar ISO CertificationsMaxbar OSHA
